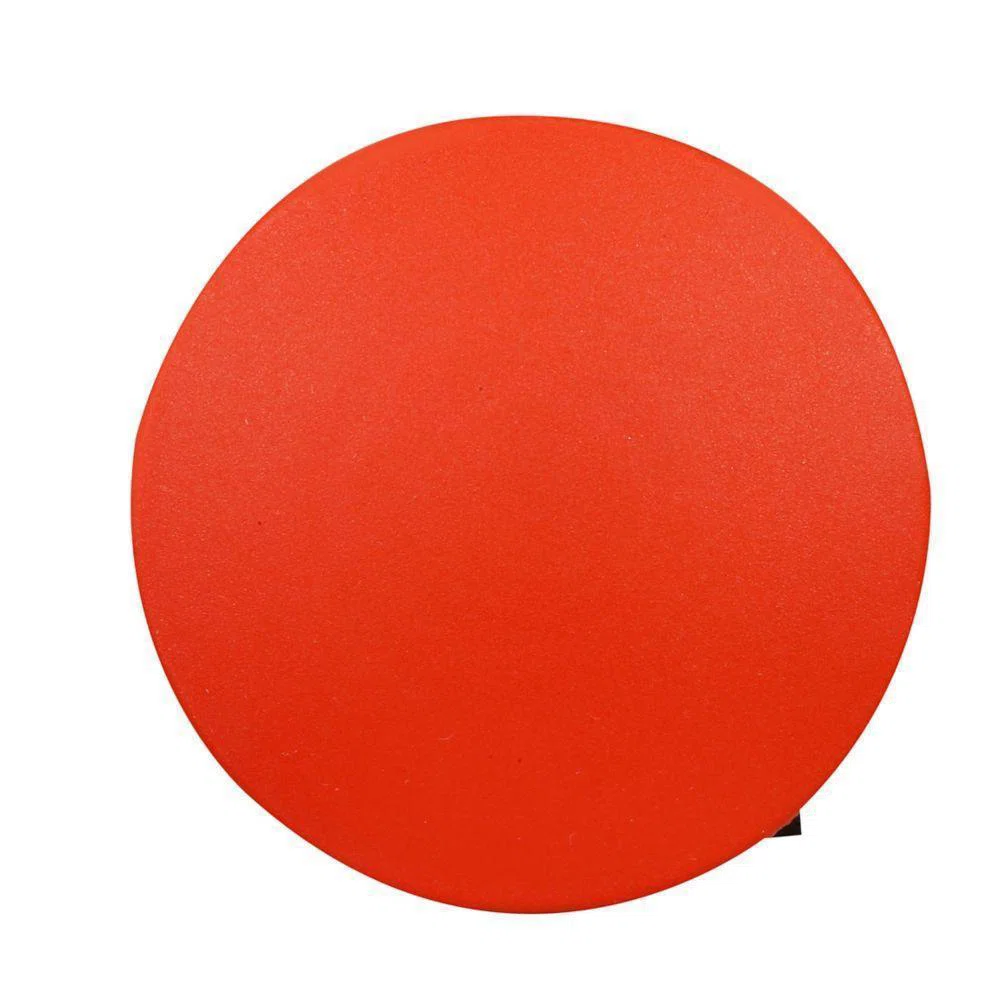

M22-PV45P-MPI Emergency Stop Modular Non-Illuminated Push-Pull Operator With Mechanical Indication, 45 mm

MFR #:
M22-PV45P-MPI
UPC:
786685610436
Item #:
988801
$140.13 each
Product Details

This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.

Manuals and Documentation

Features

  • More than 100000 mechanical operations
  • Capable of communicating via ASi protocol with ASi adapter modules
  • Suitable for use in safety applications up to Category 4 or SIL 3

Specifications

Identifiers

Identifiers
Manufacturer Part Number
M22-PV45P-MPI
GTIN
00786685610436
Identifiers
UPC
786685610436

General Information

General Information
Manufacturer
Eaton
Brand
EATON
Country Of Origin
DE
General Information
Warranty
1 year
Standards Approvals
UL Listed,CSA Certified,CE Marked
Application
Industrial Grade Control and Signaling Applications

Dimensions

Dimensions
Size
45 mm

Technical Information

Technical Information
Bezel Housing
Silver Bezel
Enclosure Type
NEMA 3/3R/4/4X/12/13
Material
Plastic
Operator Type
Push-Pull
Technical Information
Series
M22
Temperature Rating
-25 to 70 deg C
Terminal Type
Screw
Type
Emergency Stop Modular
