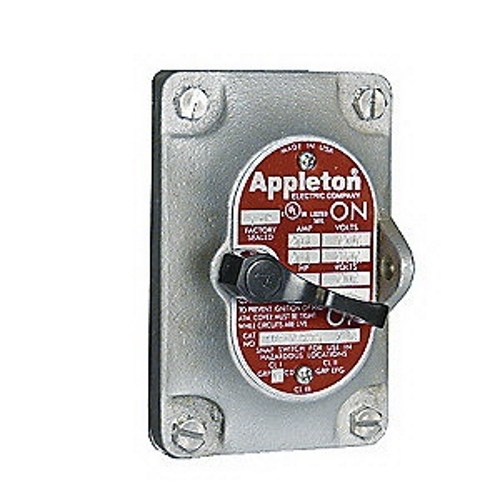

1-Gang Front Operated Switch Cover; Aluminum, For EDS Series Tumbler Switches
MFR: Appleton Electric
MFR #: EDKF21AQ
UPC: 781381795319
Item #: 97791
1-Gang Front Operated Switch Cover; Aluminum, For EDS Series Tumbler Switches
MFR #: EDKF21AQ
UPC: 781381795319
Item #: 97791
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$476.00
each
1-Gang Front Operated Switch Assembly, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Material: Aluminum, Enclosure: NEMA 7CD, 9EFG, HP Rating: 1 HP At 120 VAC, 2 HP At 240 VAC, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Standard: UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For EDS Series Tumbler Switches
Manuals and Documentation
- Catalog Number
- EDKF21AQ
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 20
- Application
- For EDS Series Tumbler Switches
- Enclosure
- NEMA 7CD, 9EFG
- Special Features
- Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models); Tumbler switch devices are approved for installation without additional external sealing fittings; Sealing chamber has prewired factory sealed pigtail leads to switch; Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction; Threaded stainless steel operating handle provides positive Corrosion resistant operation; For installation in: Chemical plants, petrochemical plants, Refineries and process industries; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of light
- Standard
- UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
- UPC
- 781381795319
- GTIN
- 00781381795319
- Item Type
- 1-Gang Front Operated Switch Assembly
- Voltage Rating
- 120 - 277
