WAGO WAGO Corporation

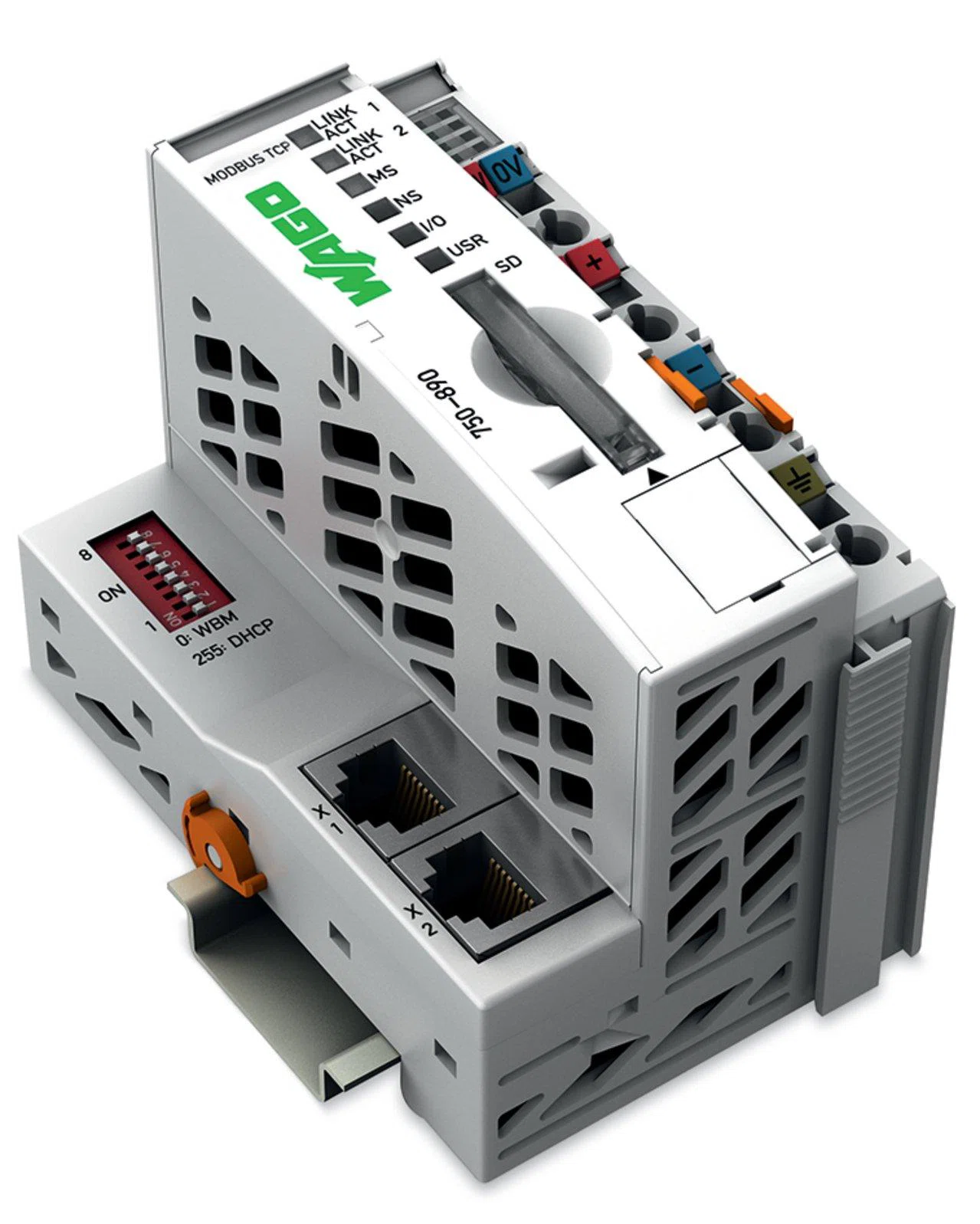

750-890 4th Generation Controller, 24 V DC, 500 mA

MFR #:
750-890
Item #:
971565
$1,369.40 each
Product Details

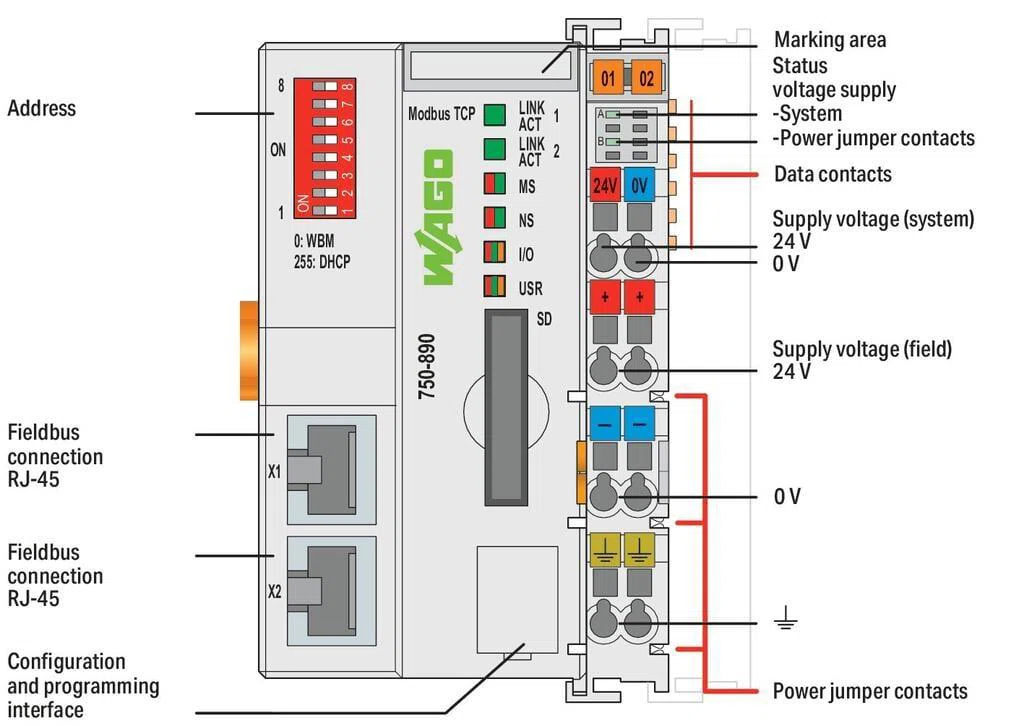

Controller Modbus TCP; 4th generation; 2 x ETHERNET, SD Card SlotThe Modbus TCP Controller can be used as a programmable controller within ETHERNET networks along with the WAGO I/O System. The controller supports all digital and analog input/output modules, as well specialty modules found within the 750/753 Series, and is suitable for data rates of 10/100 Mbit/s. Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X). The DIP switch configures the last byte of the IP address and may be used for IP address assignment. This controller supports Modbus TCP for use in industrial environments. It also supports a wide variety of standard ETHERNET protocols for easy integration into IT environments (e.g., HTTP(S), BootP, DHCP, DNS, SNTP, SNMP, (S)FTP). An integrated Webserver provides user configuration options, while displaying the controller's status information. The IEC 61131-3 programmable controller is multitasking-capable and features a capacitor-backed RTC. A data memory of 8 MB is available. The controller is equipped with a removable memory card slot. A memory card can be used to transfer device parameters or files (e.g., boot files) from one controller to another. The card can be accessed via FTP and used as an additional drive.

Specifications

Identifiers

Identifiers
Manufacturer Part Number
750-890
Identifiers
EAN
4055143821407

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant | CE | IP20 | IEC 61131-3
Application
For marine applications

Dimensions

Dimensions
Dimensions
3.937 in H x 2.421 in W x 2.831 in D

Technical Information

Technical Information
Amperage Rating
500 mA
Color
Light Gray
Communication
Modbus
Material
Polycarbonate
Mounting Type
35 mm DIN Rail
Technical Information
Programming
Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)
Temperature Rating
0 to 55 deg C
Type
4th Generation
Voltage Rating
24 V DC
