EATON

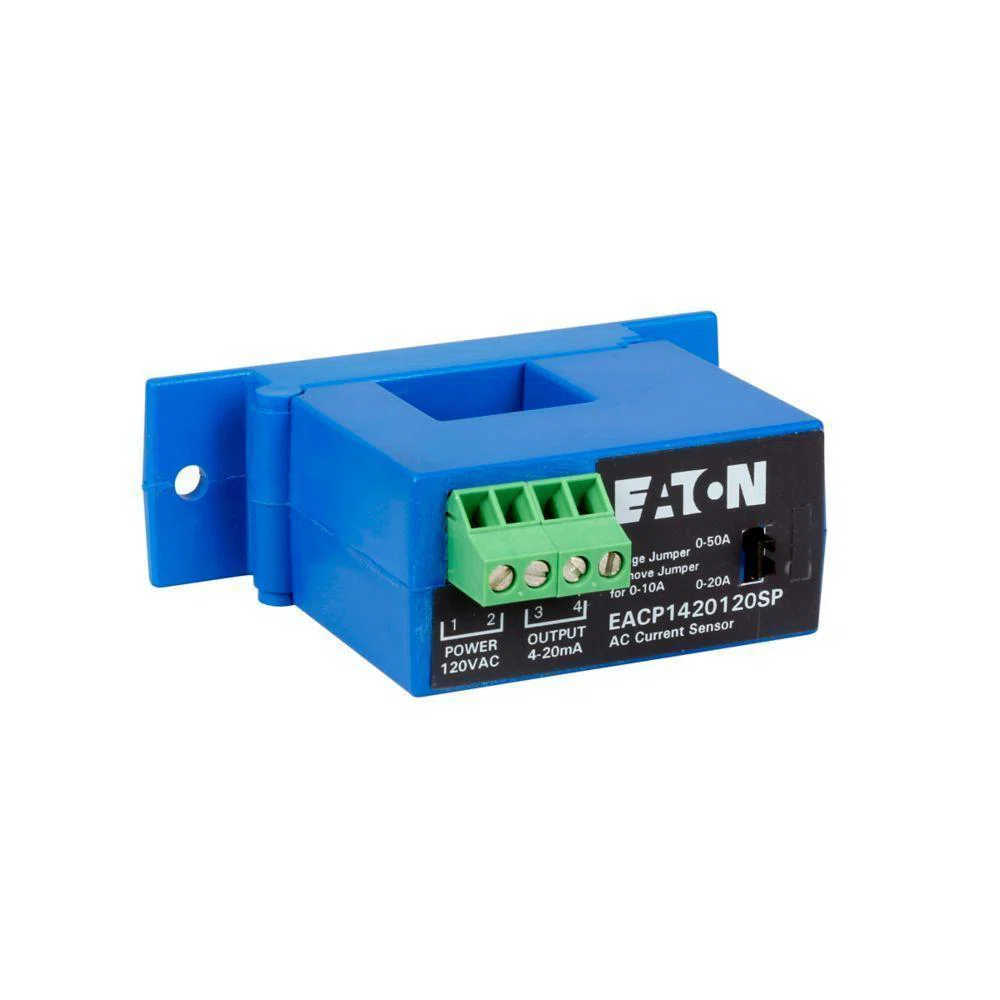

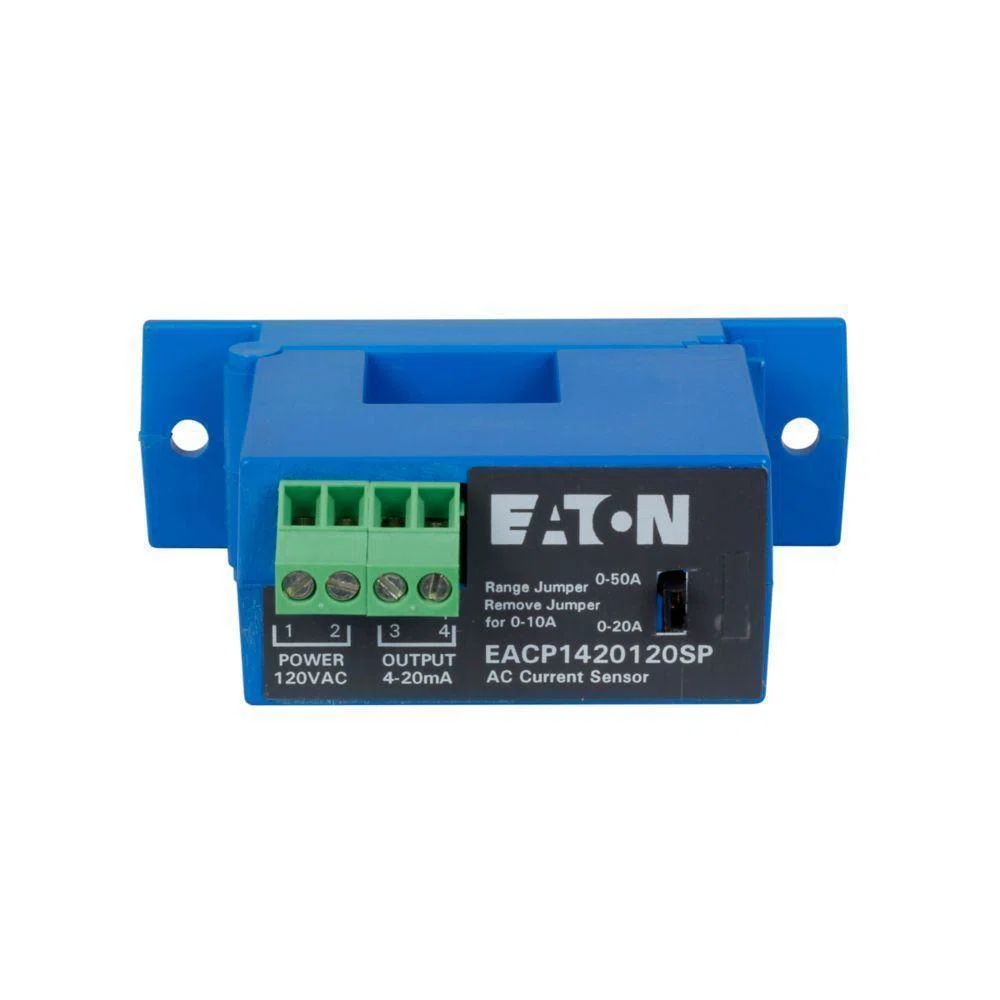

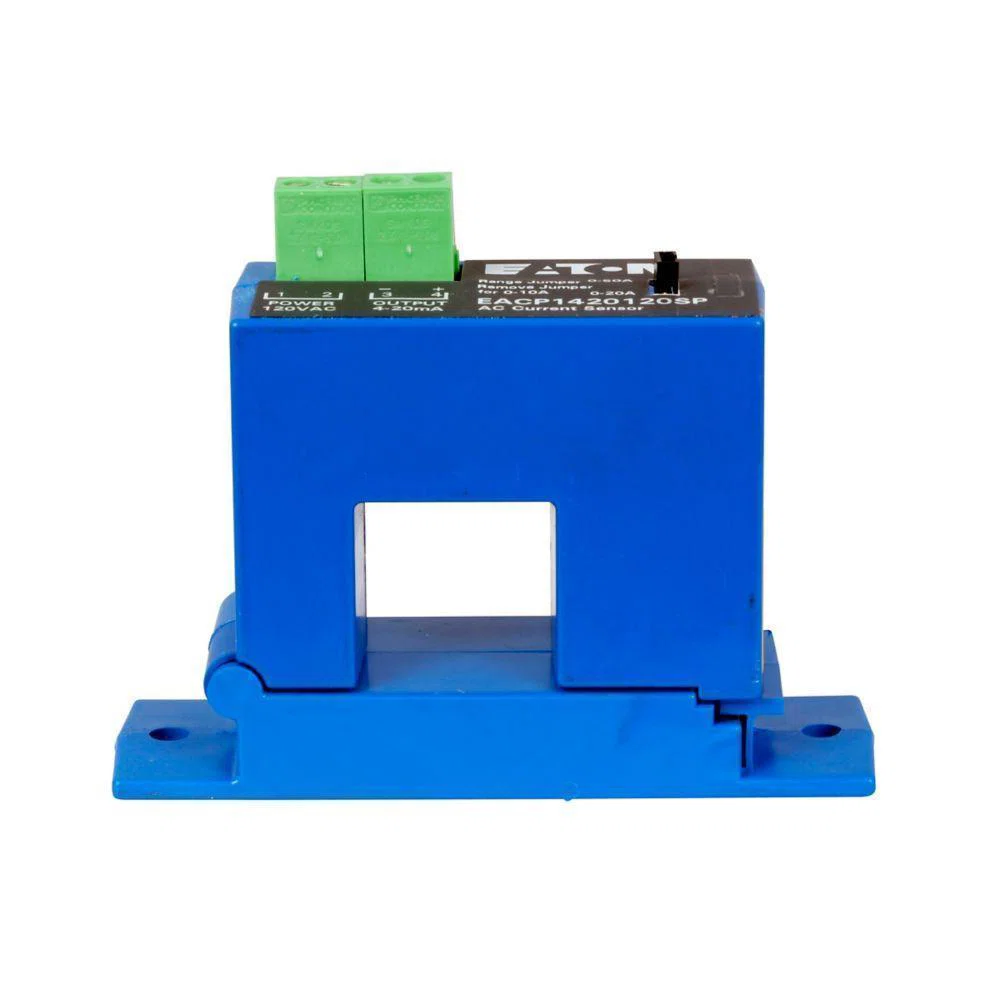

EACP1420120SP CurrentWatch EAC Split Core Housing Current Sensor, 100 ms Response, 120 V AC

MFR:
Eaton
MFR #:
EACP1420120SP
UPC:
786685120614
Item #:
96499

Availability

Location Available Qty
Available Available to Order
$1,081.18 each

The EAC Series CurrentWatch combines a current transformer and signal conditioner into a single package. This family of sensors is designed for application on “linear” or sinusoidal AC loads. The EAC series is available in split-core or solid-core housings. The EAC Series has jumper-selected current input ranges and industry-standard outputs: 4–20 mA, 0–5 Vdc or 0–10 Vdc.

Manuals and Documentation

Features

  • Highly accurate factory matched and calibrated one-piece sensor is more accurate than traditional two-piece, field installed solutions
  • Average responding average responding algorithm gives an RMS output on pure sine waves, perfect for constant speed (linear) loads
  • Jumper selectable ranges the ability to change input ranges reduces inventory and eliminates zero and span
  • Isolation output is magnetically isolated from the input for safety and elimination of insertion loss (voltage drop)
Manufacturer Part Number EACP1420120SP
Brand EATON
Manufacturer Eaton
UPC 786685120614
Country Of Origin US
Amperage Rating 50 A
Series CurrentWatch EAC
Type Split Core Housing
Voltage Rating 120 V AC
Size 3.53 in W x 1.19 in D x 2.25 in H
Alternative Part Number 20883197
Manufacturer Item Status Active
Country USA
Warranty 1 year
Standards Approvals UL/CUL listed
Application Automation Equipment, Data Loggers and Panel Meters, Electrical Assemblies, Panels and EOEM Applications
Connection Type Screw Terminal
Frequency Rating 50/60 Hz
Operating Temperature -4 to 122 deg F
Response Time 100 ms
