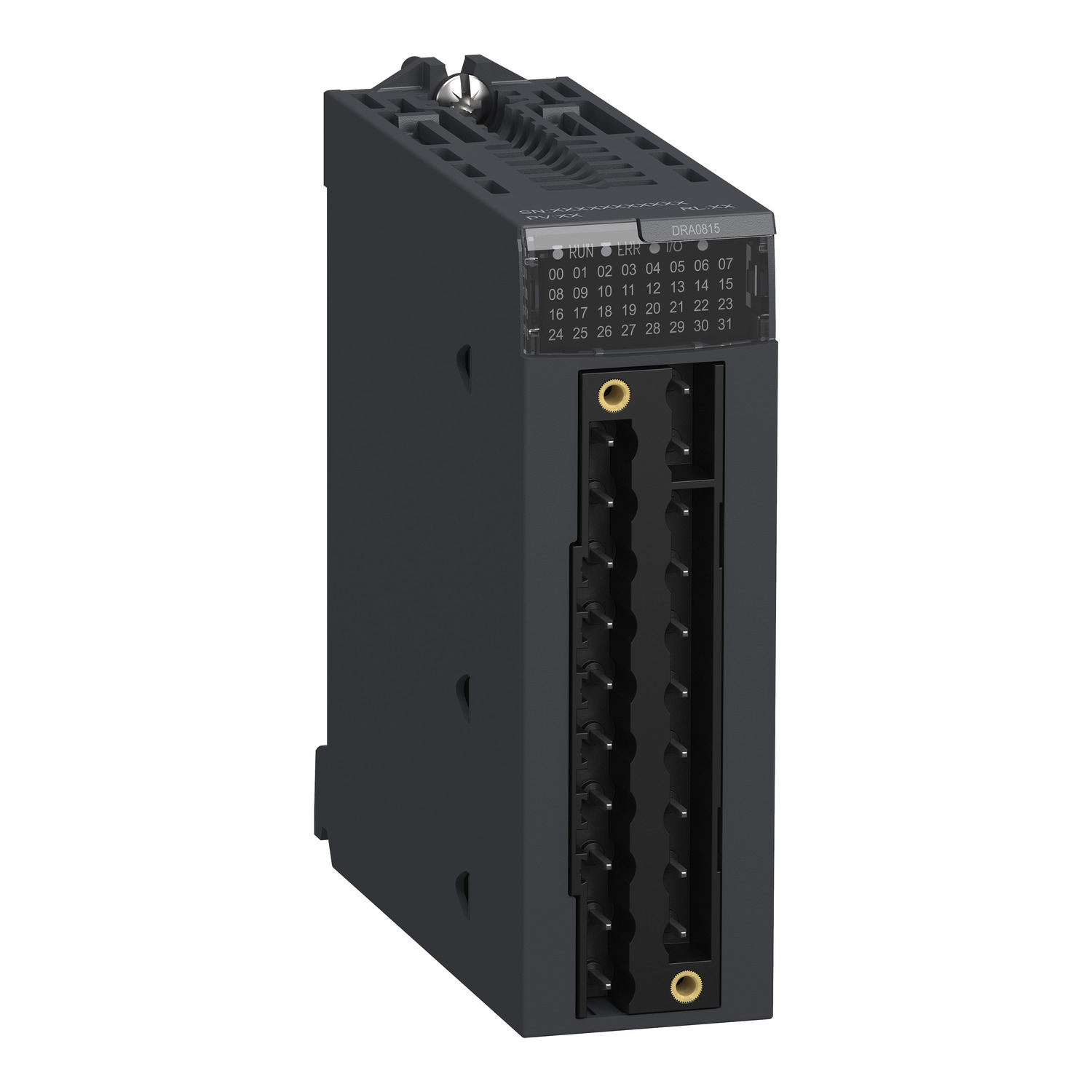

BMXDRA0815 Modicon X80 Discrete Output Module, 8 Outputs

MFR #:
BMXDRA0815
UPC:
785901038368
Item #:
955939
$599.97 each
Product Details

This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open isolated relay outputs and it is supplied with 24 to 240V AC/24 to 125V DC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 3223310 hours of MTBF. This discrete module has a weight of 0.210kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Manuals and Documentation

Features

  • Cost-effective modernization and migration
  • Reduce time to market
  • Process efficiency
  • Easy Maintenance
  • Reliability and robustness

Specifications

Identifiers

Identifiers
Manufacturer Part Number
BMXDRA0815
GTIN
03606481275608
Identifiers
UPC
785901038368
EAN
3606481275608

General Information

General Information
Manufacturer
Schneider Electric
Brand
Schneider Electric
General Information
Country Of Origin
FR
Standards Approvals
IP20

Technical Information

Technical Information
Amperage Rating
40/101 mA
Number Of Outputs
8
Power Rating
3.6
Series
Modicon X80
Step Response
<=10 ms Activation/<=13 ms Deactivation
Technical Information
Temperature Rating
32 to 140 deg F
Terminal Type
Block
Type
Discrete
Voltage Rating
24 to 240 V AC/24 to 125 V DC
