Product Details

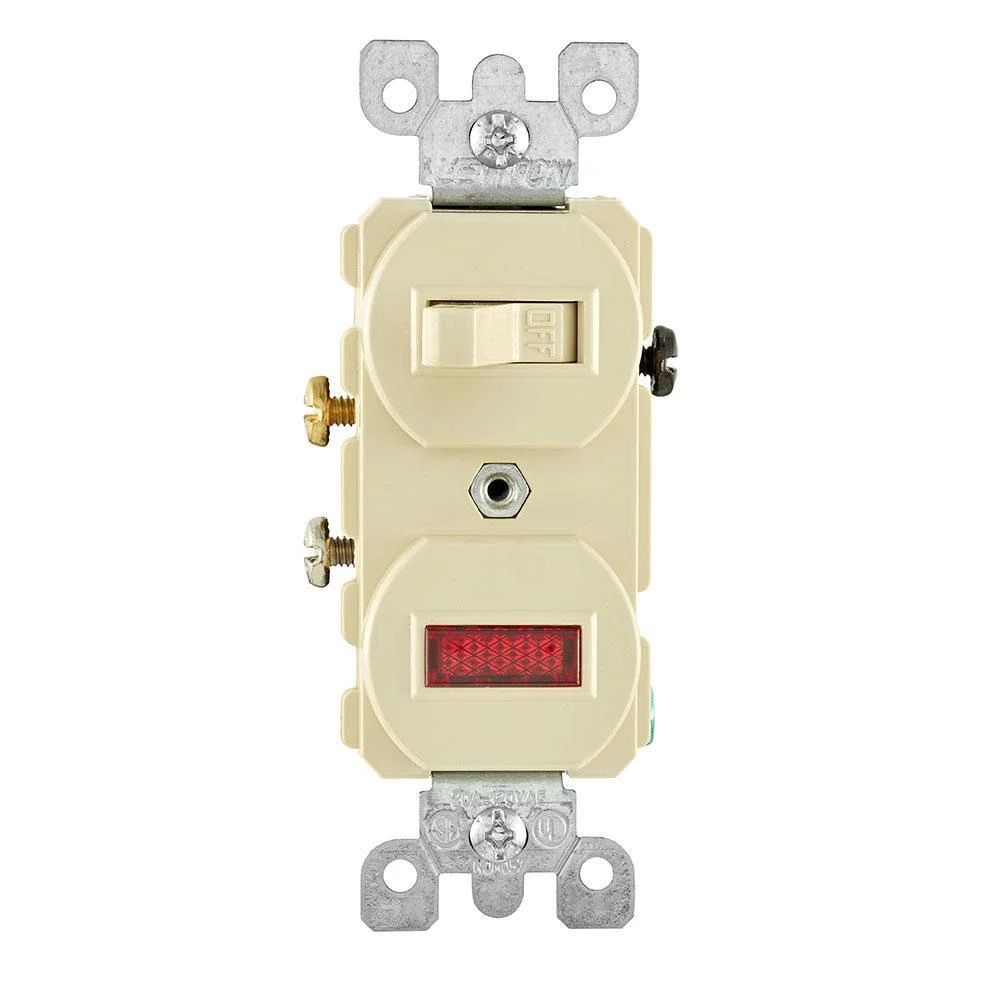

LevitonĀ® AC Combination Switch, Duplex Grounding, 120/125 V AC, 20 A, 1 Pole, Neon Pilot Lamp, Toggle Action, NEMA 5-15R Enclosure, Surface Mounting, Side Wire Terminal, -40 to 120 deg C, Thermoplastic, Ivory, 4.2 in H x 1.62 in W x 16 in D Dimensions
Manuals and Documentation
Features
- AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
- Terminal screw accept up to #12 AWG copper or copper clad wire
- Fits standard wallboxes, break-OFF tabs on devices with switches permit conversion to separate feeds
- Break-OFF tabs on devices with switches permit conversion to separate feeds
Specifications
Identifiers
| Manufacturer Part Number |
5336-I
|
|---|---|
| GTIN |
00078477233504
|
| UPC |
078477233504
|
|---|
General Information
| Manufacturer |
Leviton
|
|---|---|
| Brand |
LevitonĀ®
|
| Country Of Origin |
MX
|
| Warranty |
2 Years Limited
|
|---|---|
| Standards Approvals |
ANSI C73 | CSA C22.2 No. 111/152105 | NEMA WD1/WD6 | NOM 057 | UL 20/E7458 | UL94 V-2 Flammability Rating
|
| Application |
Commercial Applications
|
Dimensions
| Dimensions |
4.2 in H x 1.62 in W x 16 in D
|
|---|
Technical Information
| Action |
Toggle
|
|---|---|
| Amperage Rating |
20 A
|
| Color |
Ivory
|
| Enclosure |
NEMA 5-15R
|
| Lamp Type |
Neon Pilot
|
| Material |
Thermoplastic
|
| Mounting |
Surface
|
|---|---|
| Number Of Poles |
1
|
| Temperature Rating |
-40 to 120 deg C
|
| Terminal Type |
Side Wire
|
| Type |
Duplex Grounding
|
| Voltage Rating |
120/125 V AC
|
