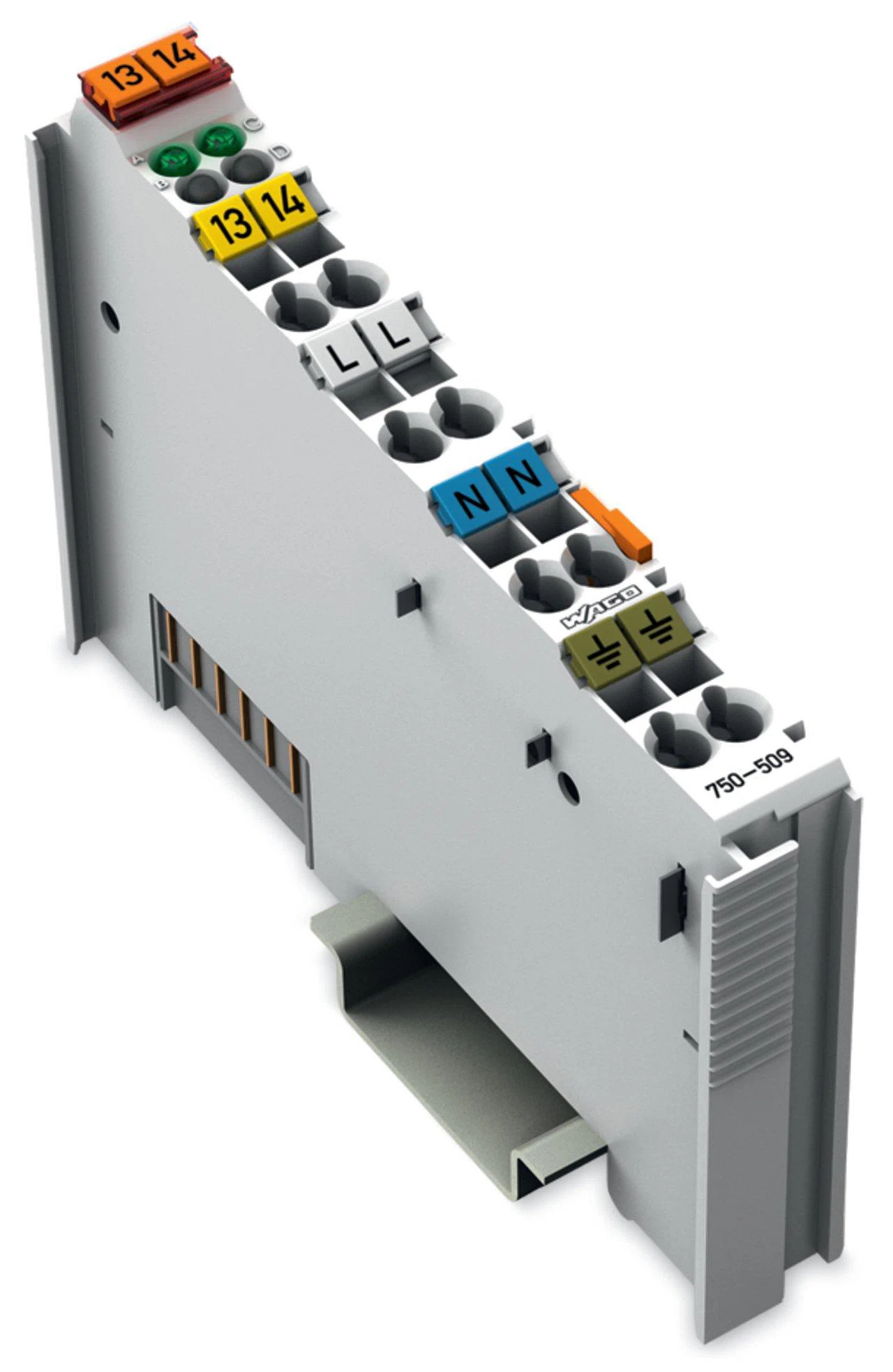

750-509 750 Digital Output Module, 2 Outputs
- MFR:
- WAGO Corporation
- MFR #:
- 750-509
- Item #:
- 914530
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$161.00
each
WAGO, 750-509, Output Module, Digital, Series: 750, 2 Outputs, 250 V AC/DC, 10 mA, Spring Terminal, 0 to 55 deg C, Polycarbonate/Polyamide 6.6, Light Gray, 3.937 in H x 0.472 in W x 2.748 in D Dimensions
Manuals and Documentation
| Manufacturer Part Number | 750-509 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4045454393403 |
| Country Of Origin | DE |
| Amperage Rating | 10 mA |
| Color | Light Gray |
| Dimensions | 3.937 in H x 0.472 in W x 2.748 in D |
| Material | Polycarbonate/Polyamide 6.6 |
| Series | 750 |
| Temperature Rating | 0 to 55 deg C |
| Type | Digital |
| Voltage Rating | 250 V AC/DC |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant | IEC 60068-2-6/27/42/43 | IEC 61131-2 | IP20 | CE |
| Application | For marine applications |
| Number Of Outputs | 2 |
| Terminal Type | Spring |
