Intermatic

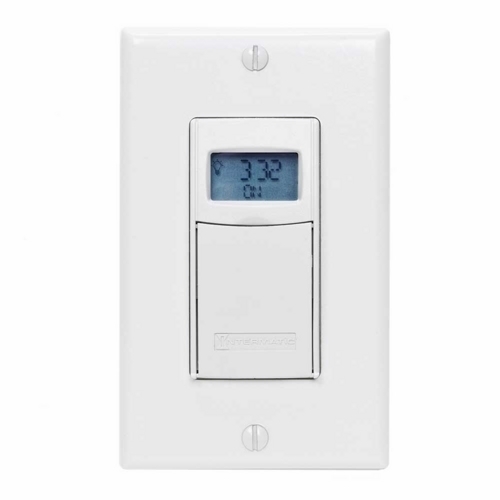

EI400WC Auto-Off Decorator Digital Electronic In-Wall Timer, 1 s to 24 hr Setting, 120 to 127 VAC, 12 to 18 VDC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
EI400WC
UPC:
078275101388
Item #:
90374

Availability

Location Available Qty
Available Available to Order
$67.56 each

Offering a programmable countdown time between one second and 24 hours, this versatile timer can handle any application, regardless of load type. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Manuals and Documentation
Catalog Number EI400WC
Manufacturer Intermatic
Brand Intermatic
Country of Origin China
Made in USA No
Action 1 x SPST
Amperage Rating 20
Application CFL Lighting, LED Lighting, HVACR
Contact Configuration 1 NO
Contact Rating 20 AMP @ 120 - 277 VAC (Resistive Heater), 15 AMP @ 120 VAC (Tungsten Incandescent), 6 AMP @ 208 - 277 VAC (Tungsten Incandescent), 16 AMP @ 120 - 277 VAC (Ballast Magnetic), 4 AMP @ 12 VDC (DC Loads), 2 AMP @ 28 VDC (DC Loads)
Mounting Wall
Number of Poles 1
Special Features Features: Auto Daylight Saving Time Adjustment, Low Battery Indicator, CR2 Lithium Battery Provides a minimum of 2 Years of Time Keeping without AC Power, Manual Override Feature, User Program Selections are Stored in Non-Volatile Memory, 5 Year Warranty
Standard cCSAus Certified, California TITLE 24 Compliant, HVACR
UPC 078275101388
GTIN 00078275101388
Item Type Decorator Digital Auto-Off In-Wall
Size 2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Operating Temperature +32 to +122 DEG F, 0 to +50 DEG C
Timing Range 1 S - 24 HR
Voltage Rating 120 - 127 VAC, 12 - 18 VDC
Wattage 5540 W
Cross Reference Products SS403
