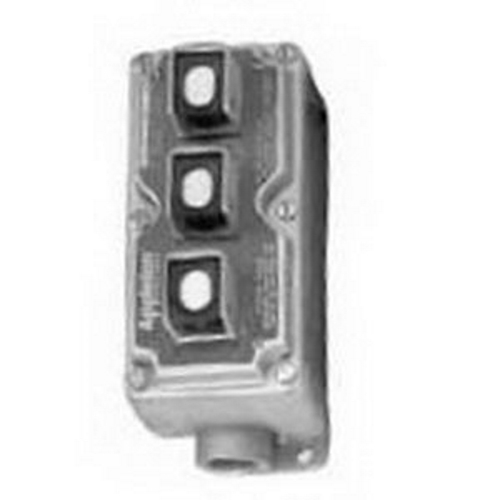

Factory Sealed Pushbutton; 600 Volt AC, 10 Amp, Momentary, 1 NO/1 NC, Malleable Iron Body, Aluminum Cover
MFR: Appleton Electric
MFR #: EFDL75-U3
UPC: 781381133371
Item #: 88939
Factory Sealed Pushbutton; 600 Volt AC, 10 Amp, Momentary, 1 NO/1 NC, Malleable Iron Body, Aluminum Cover
MFR #: EFDL75-U3
UPC: 781381133371
Item #: 88939
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1343.93
each
EFDCL Series 3 Device 3 Circuit Push Button Switch, Action: Momentary, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, Material: Mallea
Manuals and Documentation
- Catalog Number
- EFDL75-U3
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Action
- Momentary
- Application
- For Remote Control Of Motors
- Enclosure
- NEMA 3, 7CD, 9EFG
- Mounting
- Surface
- Special Features
- Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered
- Standard
- UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
- UPC
- 781381133371
- GTIN
- 00781381133371
- Item Type
- EFDCL Series 3 Device 3 Circuit Push Button Switch
