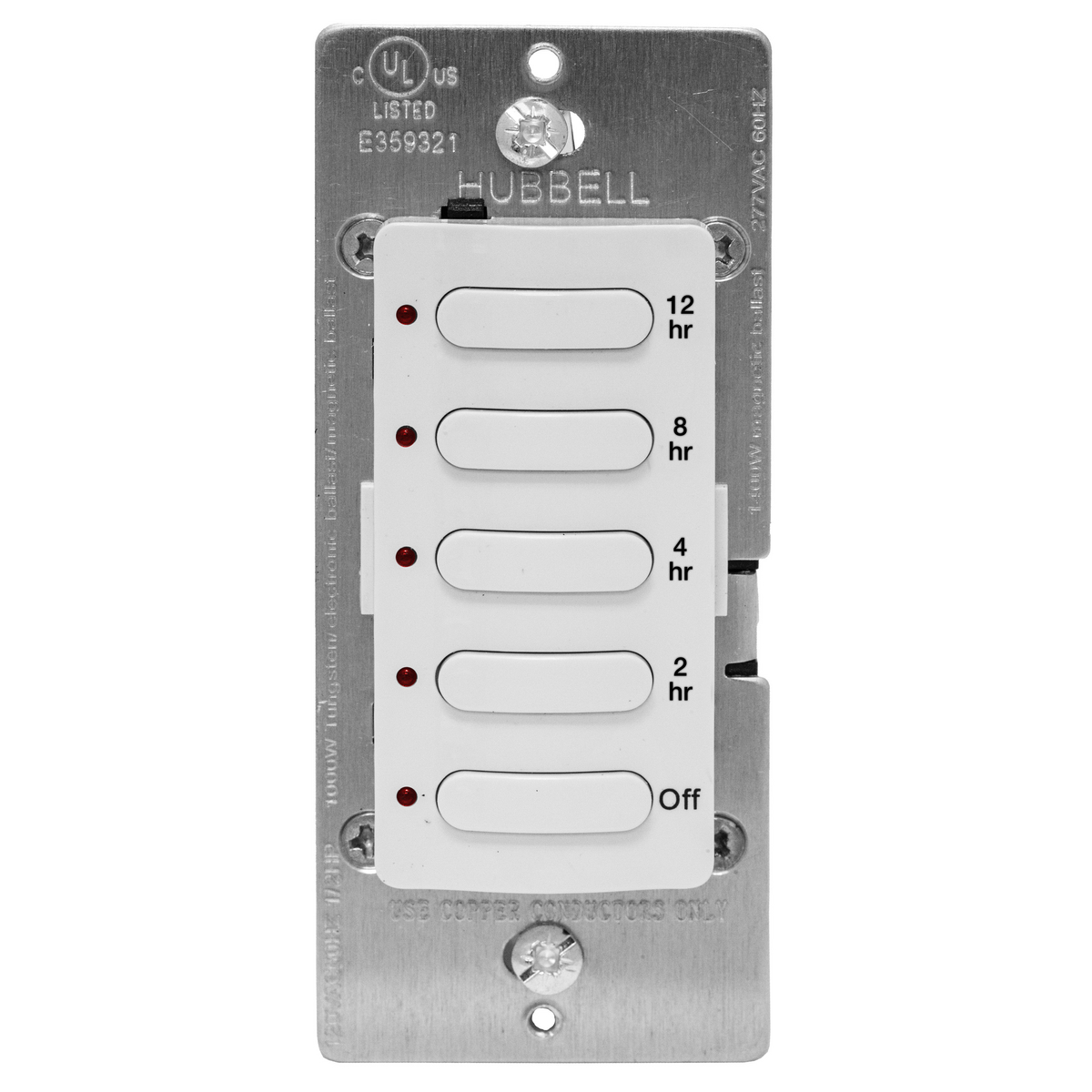

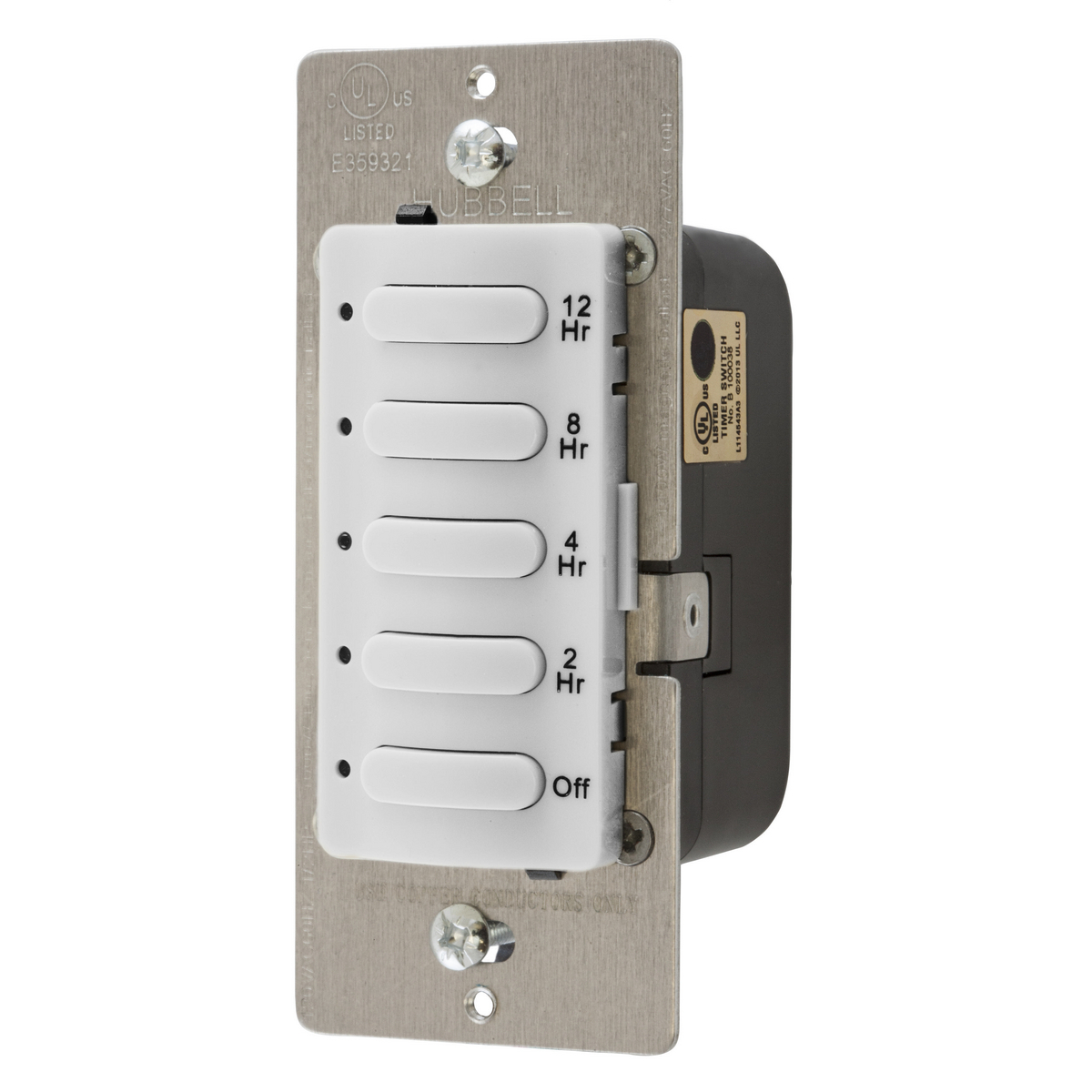

Timer Switches, Single Pole, 8.3A120/277V AC, 12 Hour Delay Time Out, White
MFR: Hubbell Wiring Device-Kellems
MFR #: DT5012W
UPC: 783585256474
Item #: 87839
Timer Switches, Single Pole, 8.3A120/277V AC, 12 Hour Delay Time Out, White
MFR #: DT5012W
UPC: 783585256474
Item #: 87839
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$57.35
each
Timers are used in many commercial, industrial and residential designs as a method to control energy. As an alternative to sensors or building controls, individual switch timers target point-of-use to enable the user to take control of the space and load, within limits. Preset timers are a simple on/off option to consider. By selecting a timer, the maximum on-time is established and control is maintained based on a reestablished regimen, adding to the buildings efficiency and energy savings. Timers in increments up to 30 and 60 minutes are excellent for use in indoor spaces. The 12 hour version is popular with outdoor lighting control and VAC where more on-time is required.
Manuals and Documentation
- Catalog Number
- DT5012W
- Manufacturer
- Hubbell Wiring Device-Kellems
- Brand
- Hubbell Wiring Device - Kellems
- Sub Brand
- Switches and Lighting Controls
- Country of Origin
- China
- Made in USA
- No
- Action
- Push Button
- Application
- Wall Mounted
- Connection
- Terminal Screws
- Contact Rating
- Inductive and Resistive Loads
- Mounting
- Screw
- Number of Poles
- 1
- Special Features
- Standard Product
- Standard
- cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
- UPC
- 783585256474
- GTIN
- 00783585256474
- Item Type
- 12 Hours
- Size
- 3.81 in x 1.75 in x 2.27 in
- Environmental Conditions
- Indoor Use Only
- Operating Temperature
- 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) with rate of change not exceeding 20 Degrees F(11 Degrees C) per hour
- Timing Range
- OFF, 2, 4,8, 12 hours
- Voltage Rating
- 120/277
- Wattage
- 1000/1,400 W
- Cross Reference Products
- VPT24-1PZ
