Discontinued
PREMISE WIRING Hubbell

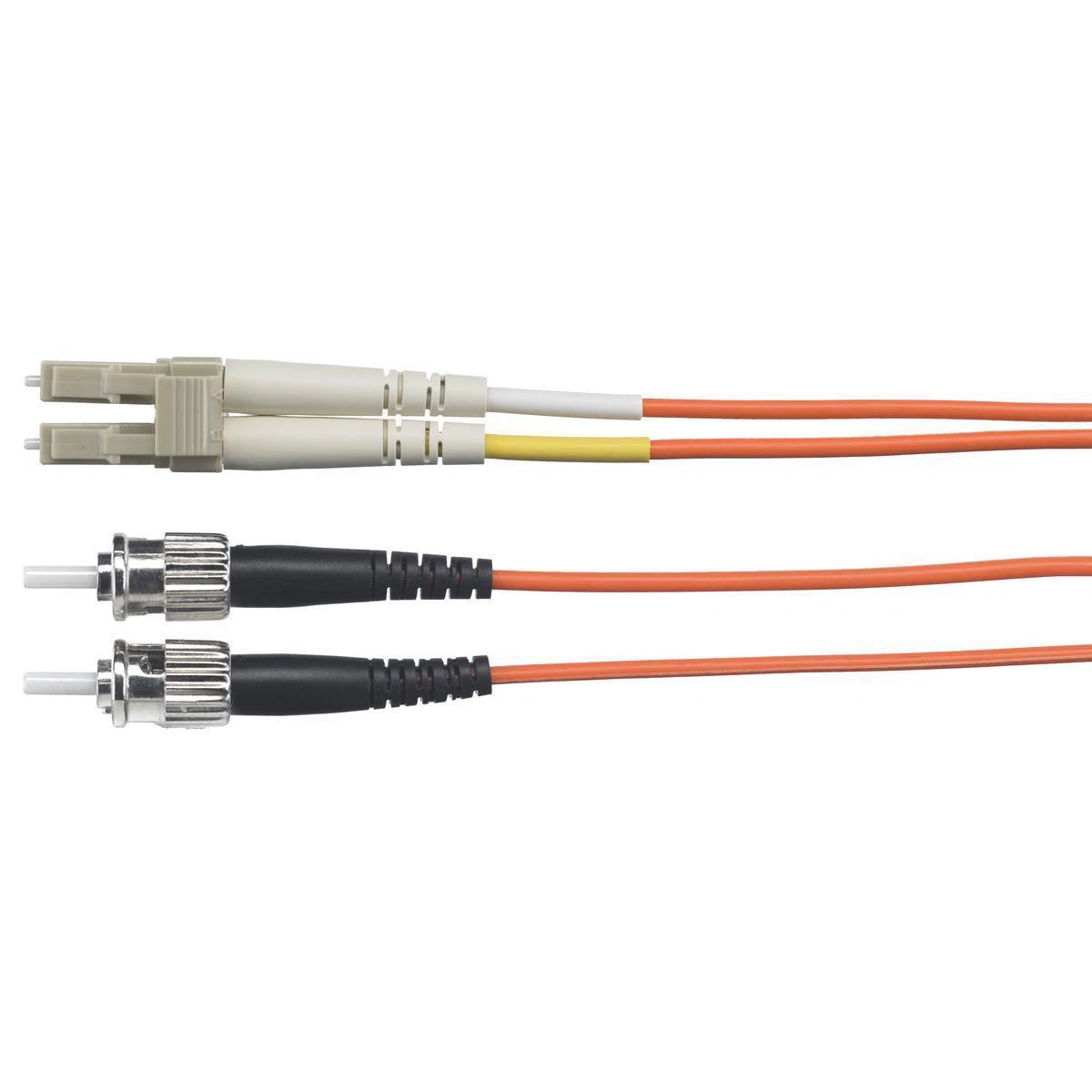

DFPCLCSTC3MM Duplex OM1 Multi-Mode Plenum Standard Fiber Optic Patch Cord, (6) Fiber, 62.5 um Core, 3 m L, Glass Fiber Conductor

MFR #:
DFPCLCSTC3MM
UPC:
662620823027
Item #:
873389
Product Details

Fiber patch cords provide connections from the work area to the wall outlet, or from active equipment to the patch panel. These applications include connecting to network interface cards (NIC), or to a fiber hub, router or switch. Cords are available as duplex or simplex 62.5/125, 50/125 MM, 50/125 laser optimized or SM fibers. We offer ST-style, SC, MT-RJ or LC connectors. All patch cords are factory polished and 100% optically tested for superior performance.

Manuals and Documentation

Features

  • Precision zirconia ferrule, PC polish
  • 100% tested, heat cured epoxy termination
  • High quality zirconia ferrules for high performance and superior durability
  • Low mated pair insertion loss minimum impact on signal budget
  • Wide temperature operating range for environmental stability
  • Precision engineered plastic SC housings for consistent repeatable mating

Specifications

Identifiers

Identifiers
Manufacturer Part Number
DFPCLCSTC3MM
GTIN
00662620823027
Identifiers
UPC
662620823027
EAN
0662620823027

General Information

General Information
Manufacturer
Hubbell
Brand
PREMISE WIRING
Country Of Origin
CN
General Information
Standards Approvals
RoHS Compliant | TIA-568.C-2/568.3/598/492CAAB/604-FOCIS | Telcordia® GR-326-CORE | ANSI/ICEA S-83-596 | TIA/EIA-568-B.3 | TIA-492AAAA(OM1,Legacy)
Application
10 Gbps/25 Gbps Fiber Channel, Backbone, Horizontal Distribution Interconnect and Data Center Equipment Interconnect Applications

Dimensions

Dimensions
Length
3 m

Technical Information

Technical Information
Attenuation Rating
<0.5 dB
Conductor Type
Glass Fiber
Connector Type
Plug-In LC to ST
Core Dimension
62.5 um
Fiber Count
6
Technical Information
Insulation Material
PVC
Jacket Color
Orange
Temperature Rating
0 to 75 deg C
Type
Duplex OM1 Multi-Mode Plenum Standard
