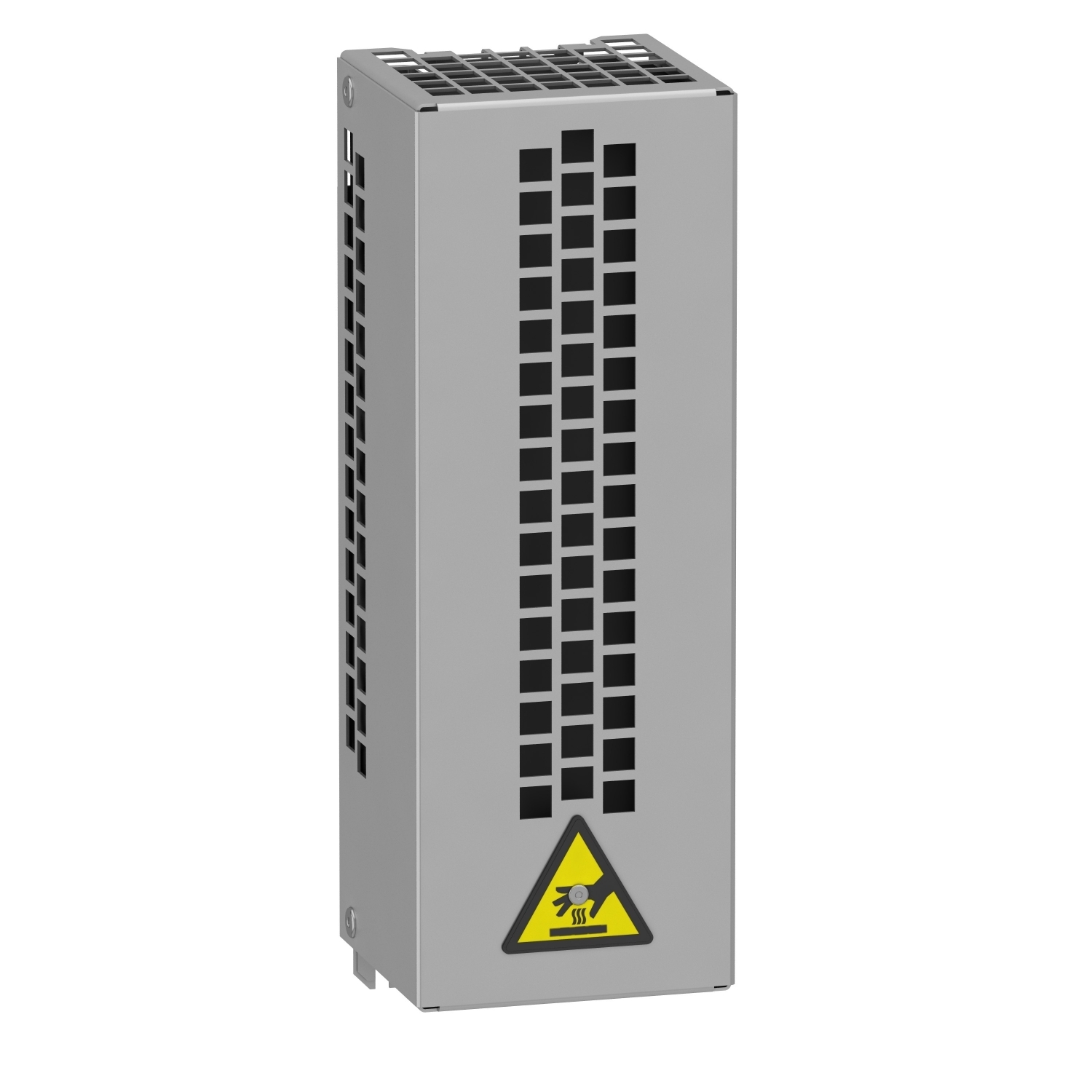

VW3A7730 Braking Resistor, 100 Ohm, 0.1 kW, For Use With Altivar Easy 310 and 310L/Process ATV900/Machine ATV320 and ATV340 Variable Speed Drive
- MFR:
- Schneider Electric
- MFR #:
- VW3A7730
- Item #:
- 858792
VW3A7730 Braking Resistor, 100 Ohm, 0.1 kW, For Use With Altivar Easy 310 and 310L/Process ATV900/Machine ATV320 and ATV340 Variable Speed Drive
- MFR #:
- VW3A7730
- Item #:
- 858792
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$271.54
each
This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
Manuals and Documentation
| Catalog Number | VW3A7730 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | Germany |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432941545&lang=en-us |
| GTIN | 03606480802249 |
