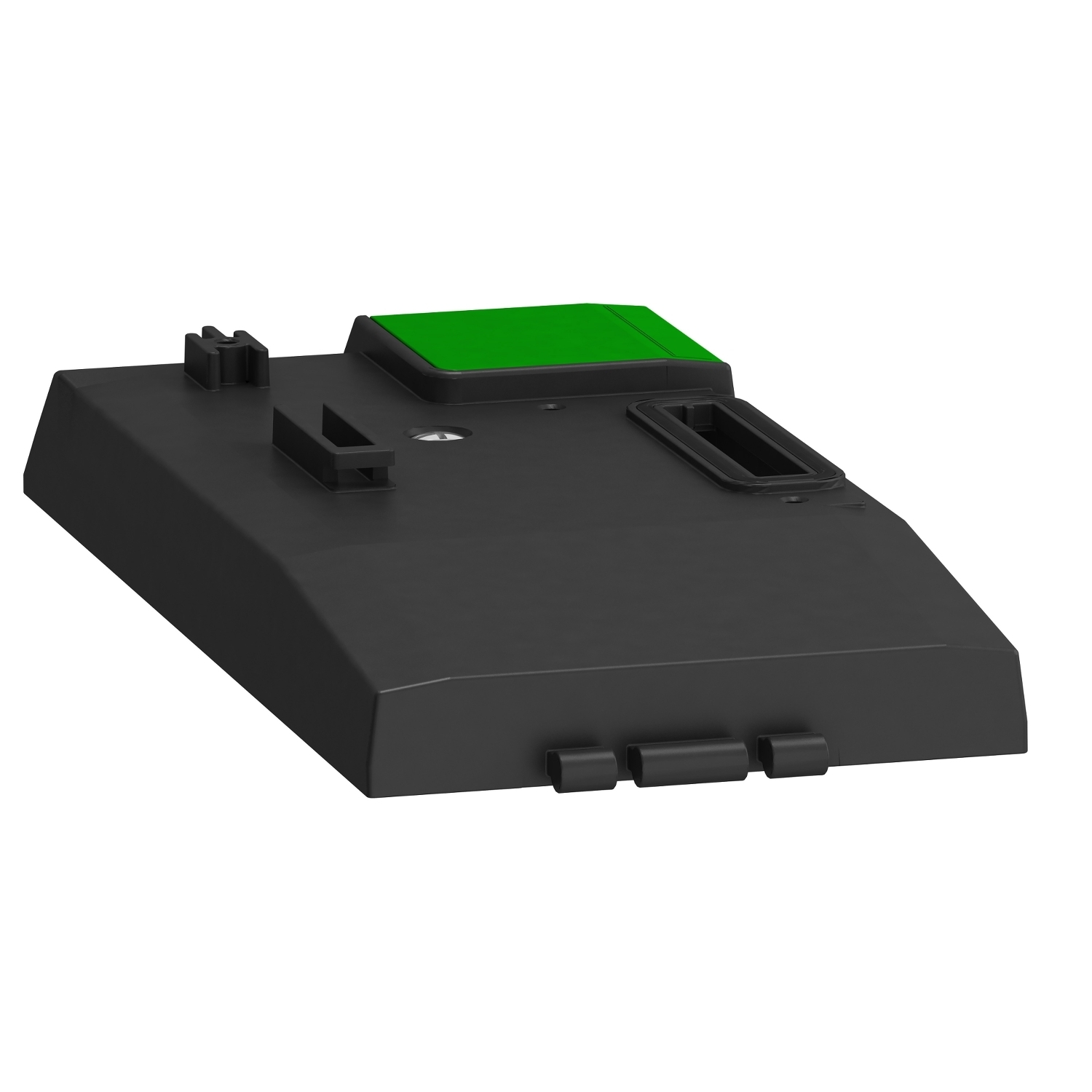

Control unit, Lexium 32i, LXM32i, CANopen/CANmotion
Control unit, Lexium 32i, LXM32i, CANopen/CANmotion
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with M12 connectors for CANmotion, M12 for CANopen, RJ45 for Modbus. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.636kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Manuals and Documentation
- Catalog Number
- LXM32ICAN
- Manufacturer
- Schneider Electric
- Brand
- Schneider Electric
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Communication
- CANmotion, Integrated;CANopen DS402, Integrated
- Connection Cables
- M12 CANmotion;M12 CANopen;RJ45 Modbus
- Control
- 9600, 19200, 38400 bps 0-40 m Modbus;Servo motor encoder feedback
- Display
- 1 LED (Red) servo drive voltage;1 LED error;1 LED RUN
- Input Signal
- Safety compliment of STO_A, compliment of STO_B;logic DI;Positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1;positive DI)> 19 V < 9 V IEC 61131-2 Type 1;positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1;24 V DC capture;24 V DC logic;24 V DC safety
- Interface
- 2-wire RS485 multidrop Modbus
- Output Signal
- <= 30 V DC;Logic DO)24 V DC
- Special Features
- Safe torque off safety function, Integrated;Against reverse polarity inputs signal;against short-circuits outputs signal
- Standard
- Conducted EMC EN 55011 class A group 1;conducted EMC EN 55011 class A group 2;conducted EMC EN/IEC 61800-3 environment 2 category C3;conducted EMC IEC/EN 61800-3 category C2;EMC immunity IEC/EN 61800-3 environments 1 and 2;EMC immunity level 3 IEC 61000-4-2;EMC immunity level 3 IEC 61000-4-3;EMC immunity level 3 IEC 61000-4-5;EMC immunity level 4 IEC 61000-4-4;radiated EMC EN 55011 class A group 2;radiated EMC IEC/EN 61800-3 category C3;SIL 3 IEC 61508;PL = e ISO 13849-1
- GTIN
- 03606480620171
- Item Type
- Control unit
