Product Details

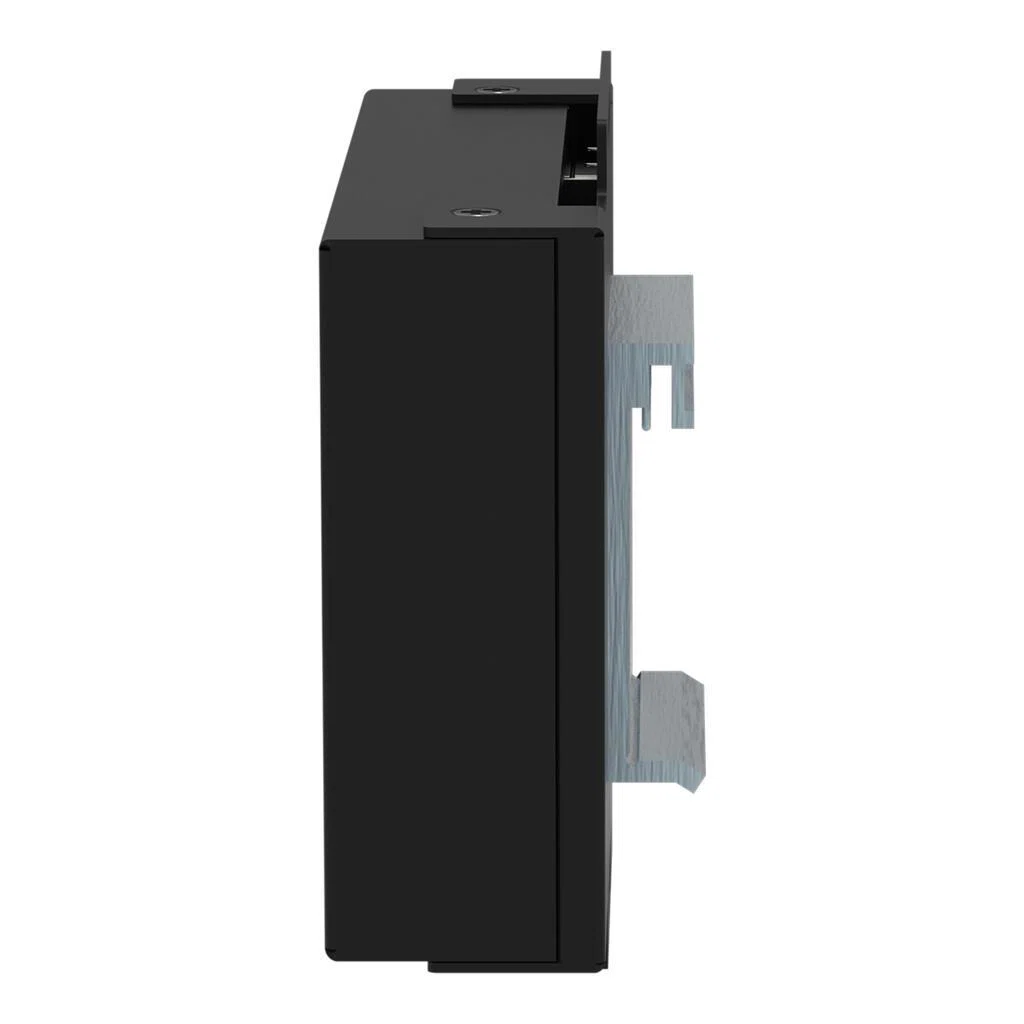

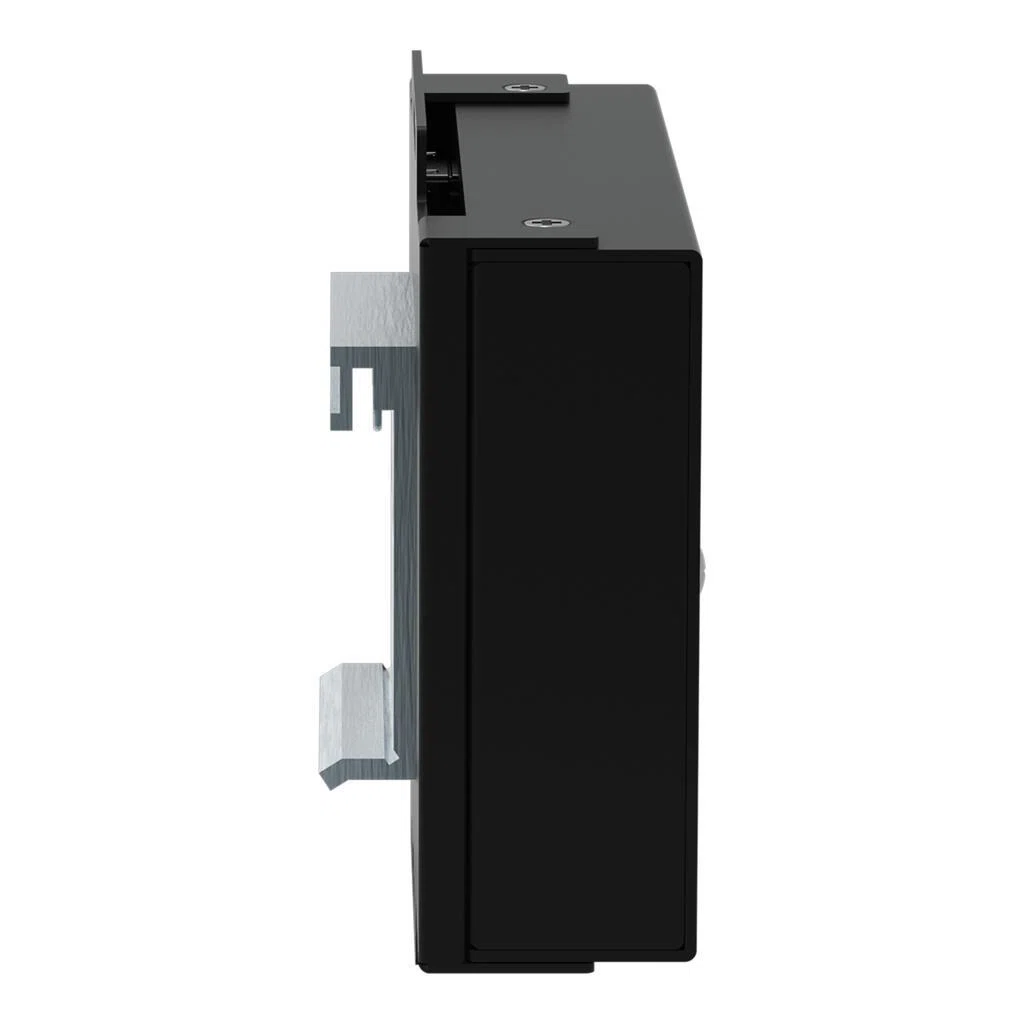

Industrial-ECO-Switch; 8-port 100Base-TX; blackThis unmanaged industrial ETHERNET switch (852-112) has eight Fast ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning. Features: 8 ETHERNET ports 10/100 Mbit/s Autonegotiation Front-panel diagnostic LEDs Supports Auto-MDI/MDI-X functions Full/half-duplex transfer modes for each port Store-and-forward switching method Integrated address look-up table, supports 2000 absolute MAC addresses Overvoltage protection Data flow control, per IEEE 802.3x Flow Control, in full-duplex mode DIN-35 rail mounting
Manuals and Documentation
Features
- 8 ETHERNET ports 10/100 Mbit/s Autonegotiation
- Front-panel diagnostic LEDs
- Supports Auto-MDI/MDI-X functions
- Full/half-duplex transfer modes for each port
- Store-and-forward switching method
- Integrated address look-up table, supports 2000 absolute MAC addresses
- Overvoltage protection
Specifications
Identifiers
| Manufacturer Part Number |
852-112
|
|---|
| EAN |
4045454847586
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant,No Exemption | IEEE 802.3x | IP30 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2
|
|---|
Dimensions
| Height |
2.906 in
|
|---|---|
| Length |
0.945 in
|
| Width |
4.299 in
|
|---|
Technical Information
| Data Transfer Rate |
10. 100 Mbps
|
|---|---|
| Enclosure Type |
IP30
|
| Environmental Conditions |
-40 to 70 deg C Operation/-40 to 80 deg C Storage
|
| Indicator Type |
LED
|
| Interface |
RJ45
|
| Mounting Type |
Wall
|
|---|---|
| Network Type |
100Base-TX
|
| Number Of Ports |
8
|
| Series |
852
|
