Product Details

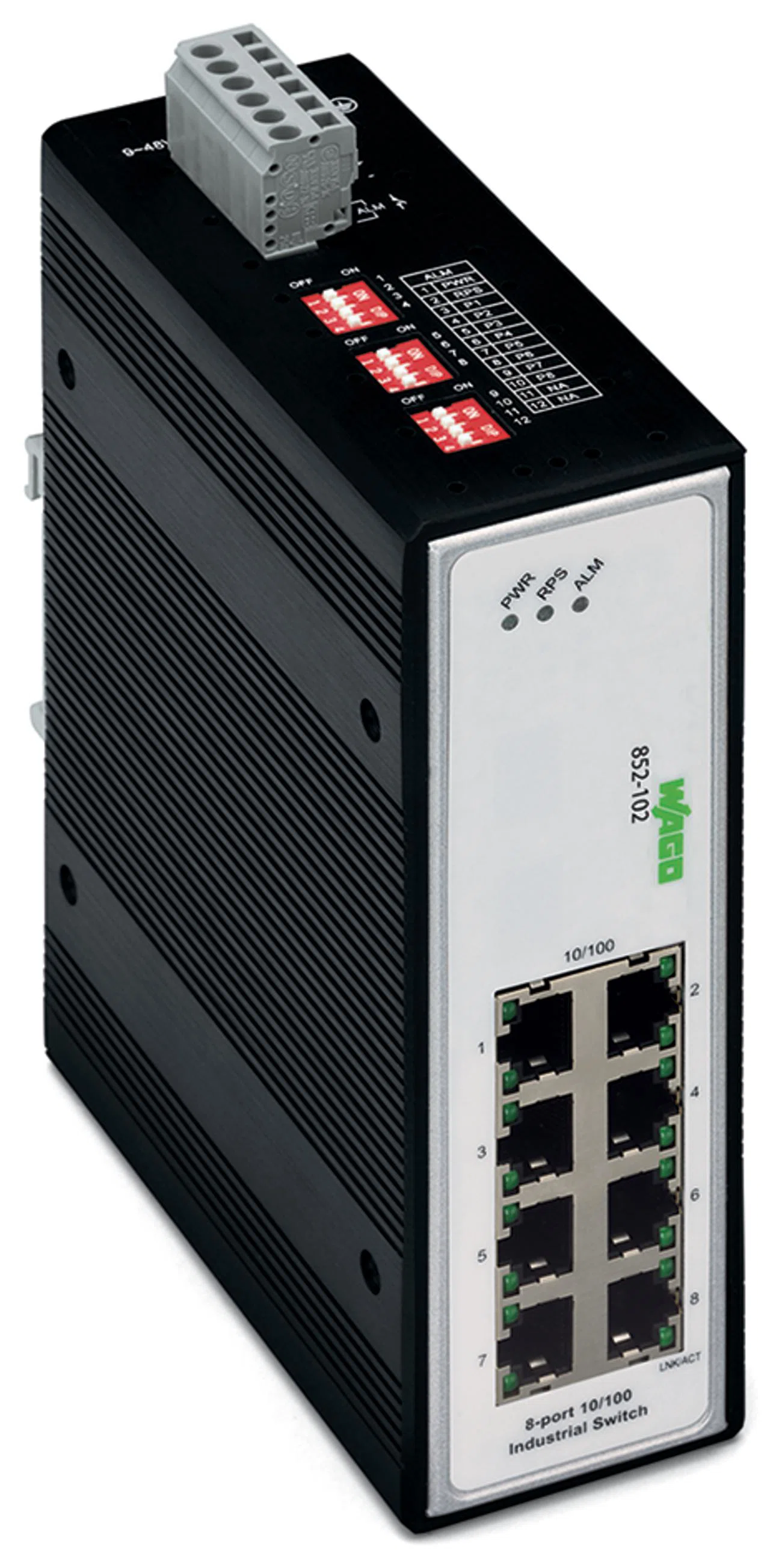

Industrial-Switch; 8-port 100Base-TX; blackThis unmanaged industrial ETHERNET switch (852-102) has eight Fast ETHERNET ports for easily setting up small- to medium-sized networks. Its slim design paired with a DIN-rail adapter simplifies installation in the control cabinet and provides high vibration and shock resistance. Additionally, automatic transmission rate detection (auto-negotiation) and automatic identification of the transmit and receive lines (Auto MDI-X) allow simple plug-and-play operation, saving time and money during commissioning. Status LEDs, a redundant power supply and an alarm contact (configurable via DIP switch) increase the switch's redundancy and diagnostic capabilities, providing higher operational uptime. Features: Redundant DC power supply Large supply voltage range: 9 €¦ 48 V DIP switch to set alarm functions Full compliance with IEEE802.3, 802.3u standards Non-blocking, store-and-forward switching Autonegotiation at all 10/100Base TX ports Auto-MDI/MDIX (crossover) at all 10/100BASE-TX ports
Manuals and Documentation
Features
- Redundant DC power supply
- Large supply voltage range - 9 48 V
- DIP switch to set alarm functions
- Non-blocking, store-and-forward switching
- AutoMDI/MDIX (crossover) at all 10/100BASETX ports
Specifications
Identifiers
| Manufacturer Part Number |
852-102
|
|---|
| EAN |
4045454665944
|
|---|
General Information
| Manufacturer |
WAGO Corporation
|
|---|---|
| Brand |
WAGO
|
| Standards Approvals |
RoHS Compliant,No Exemption | IP30 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2
|
|---|
Technical Information
| Interface |
RJ45
|
|---|---|
| Mounting Type |
DIN Rail
|
| Network Type |
100Base-TX
|
| Number Of Ports |
8
|
|---|---|
| Series |
852
|
