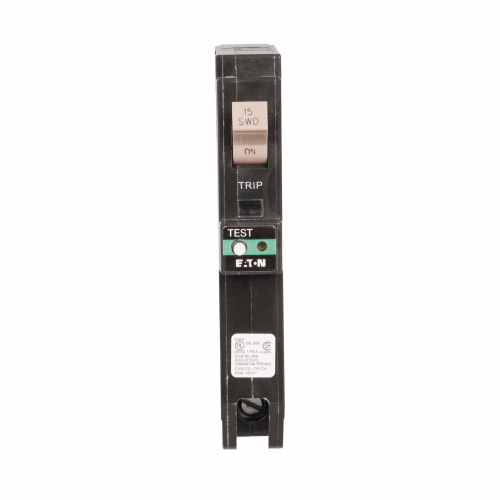

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
- Catalog Number
- CHFCAF115
- Manufacturer
- Eaton
- Brand
- Eaton
- Country of Origin
- Dominican Republic
- Made in USA
- No
- Amperage Rating
- 15
- Application
- Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other
- Connection
- Pigtail
- Interrupt Rating
- 10 kAIC
- Number of Poles
- 1
- Standard
- UL Listed,HACR Rated
- UPC
- 786685546179
- GTIN
- 00786685546179
- Item Type
- AFCI circuit breakers
- Voltage Rating
- 120/240 V
