Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals
MFR: Telemecanique Sensors
MFR #: XS8C4A1NCP20
Item #: 811119
Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals
MFR #: XS8C4A1NCP20
Item #: 811119
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$216.38
each

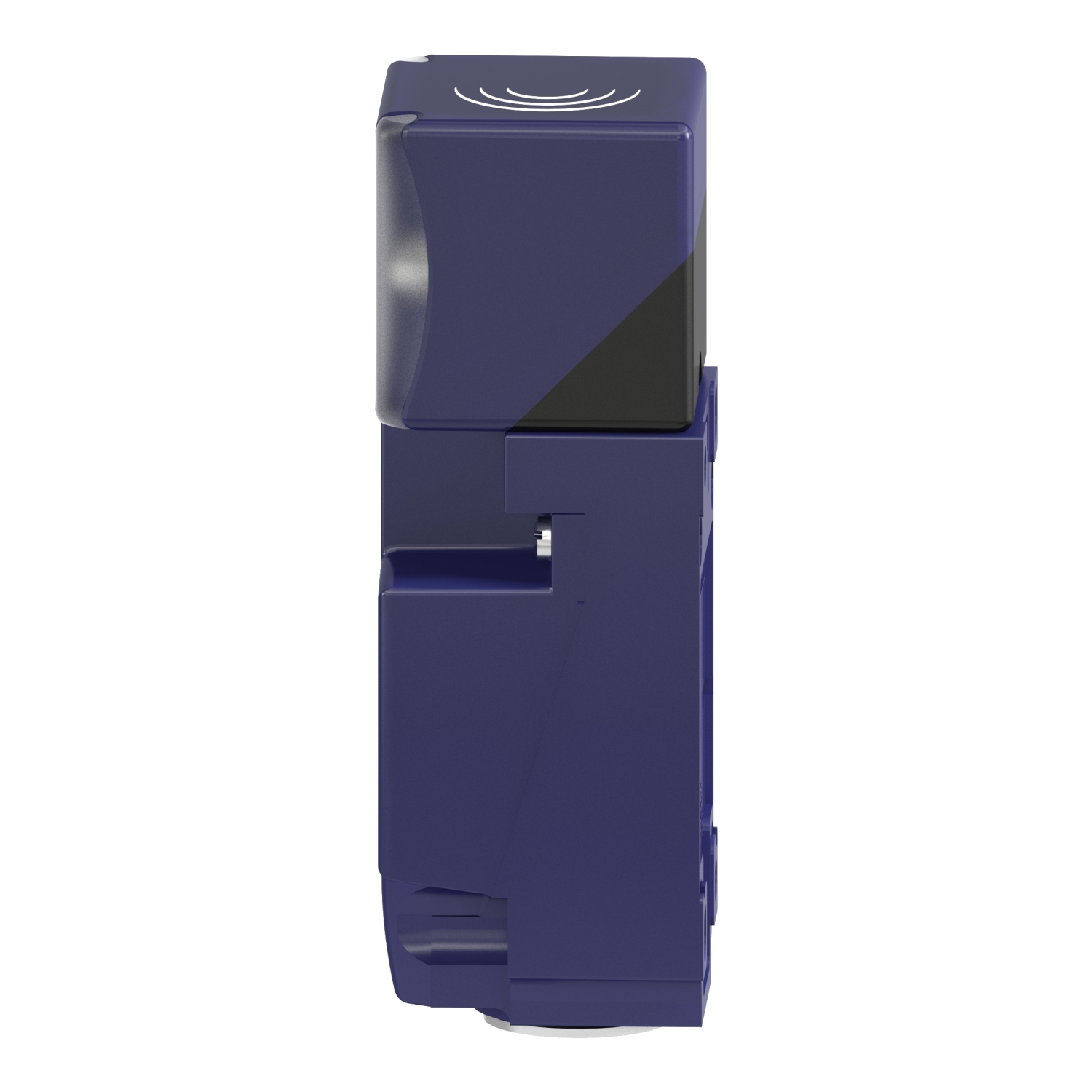

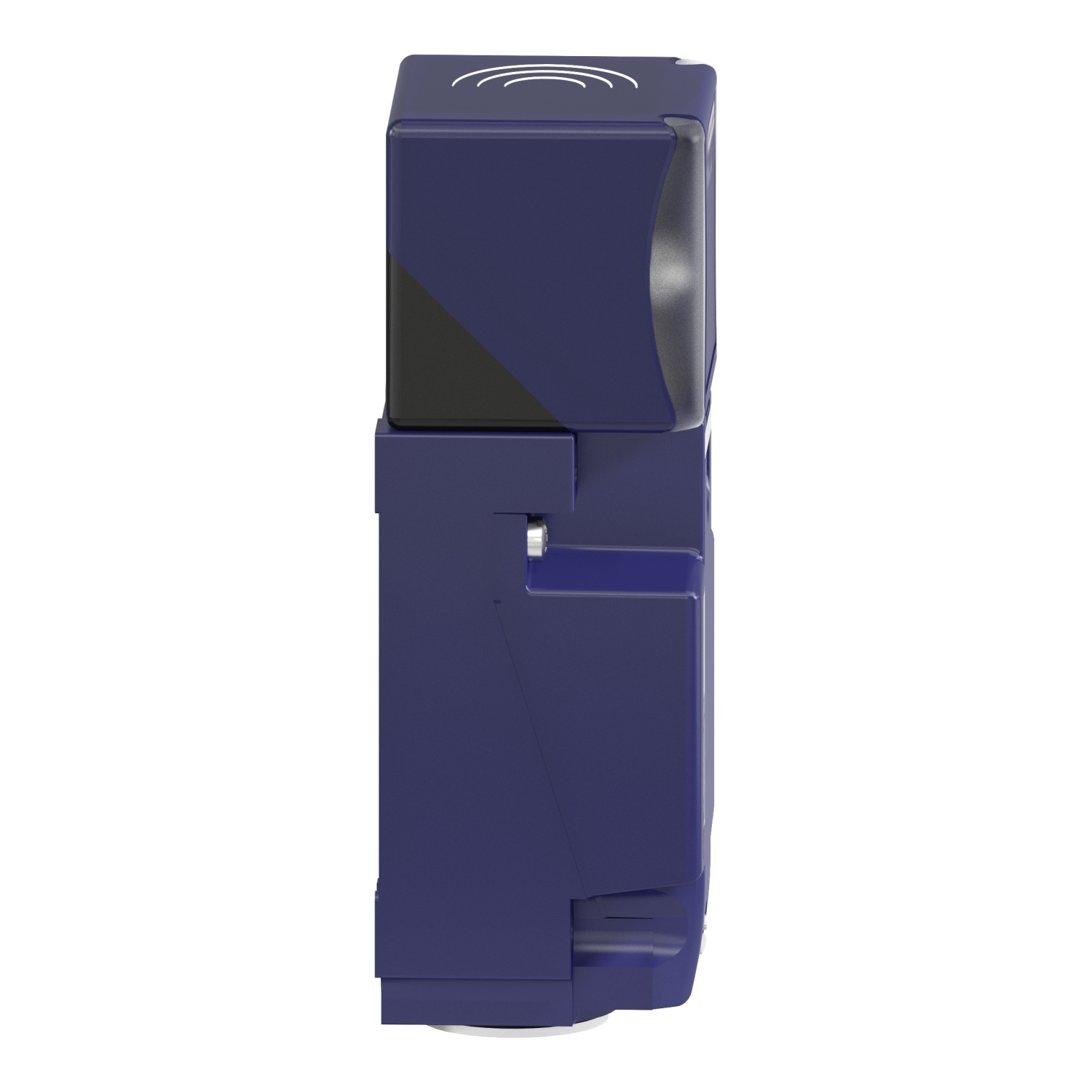

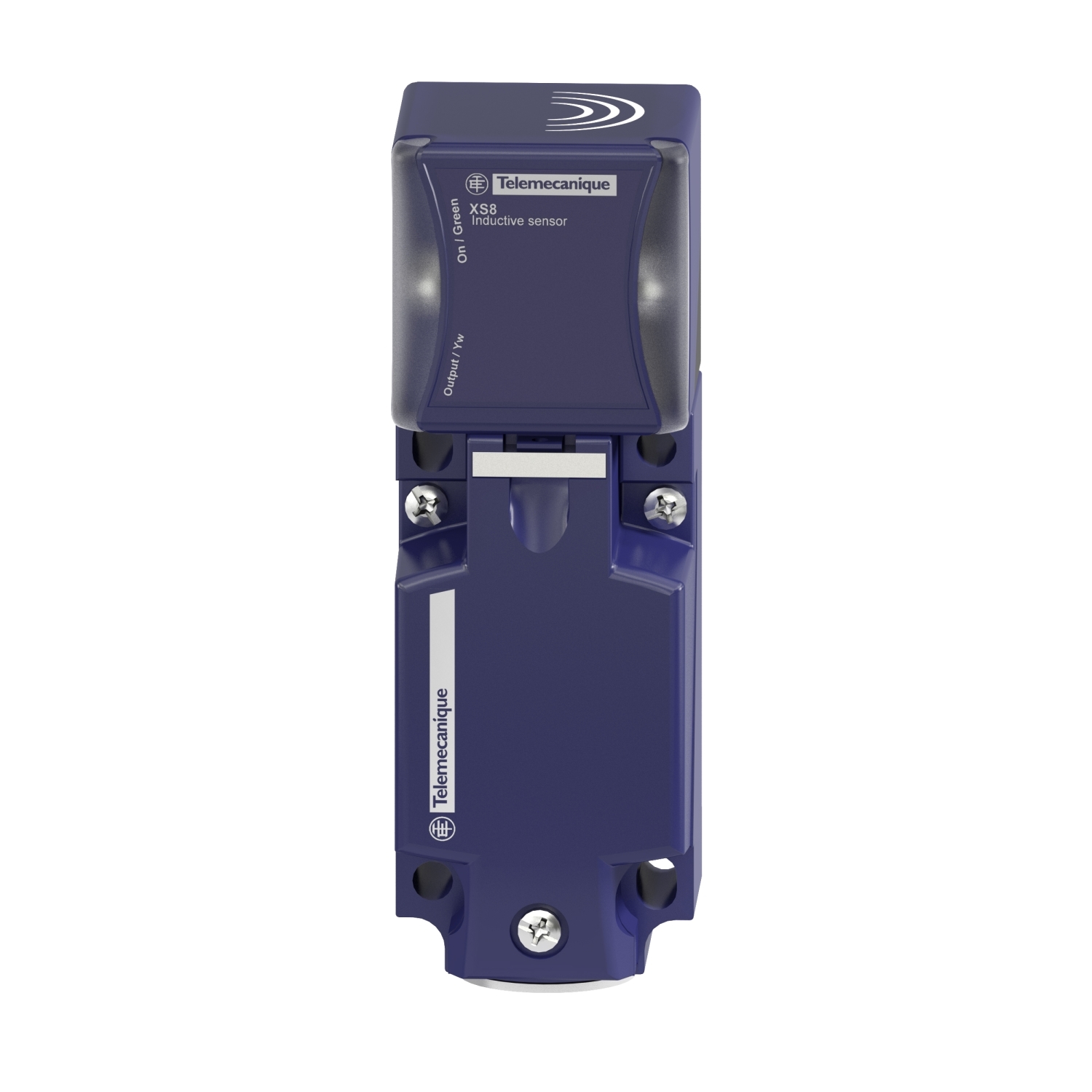

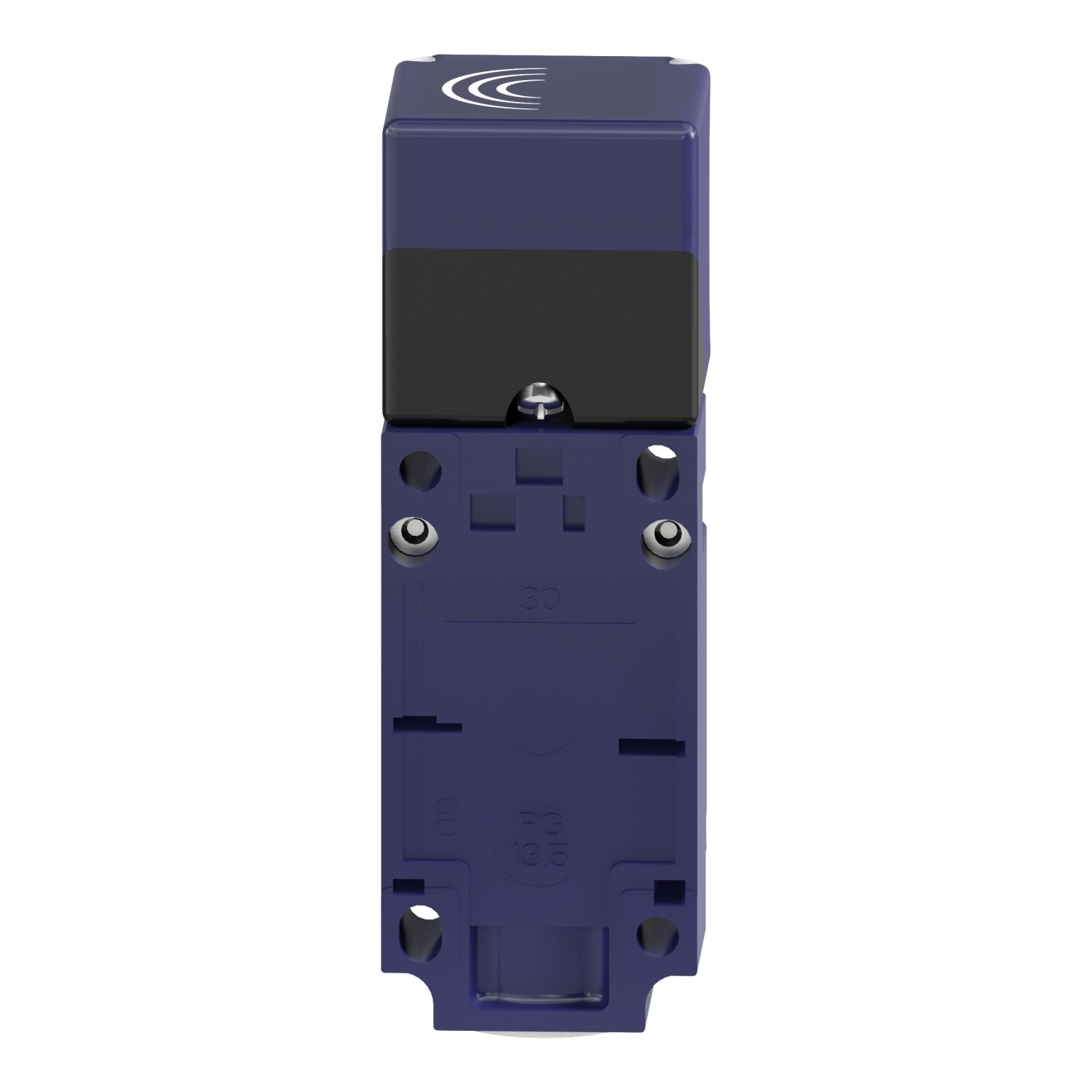

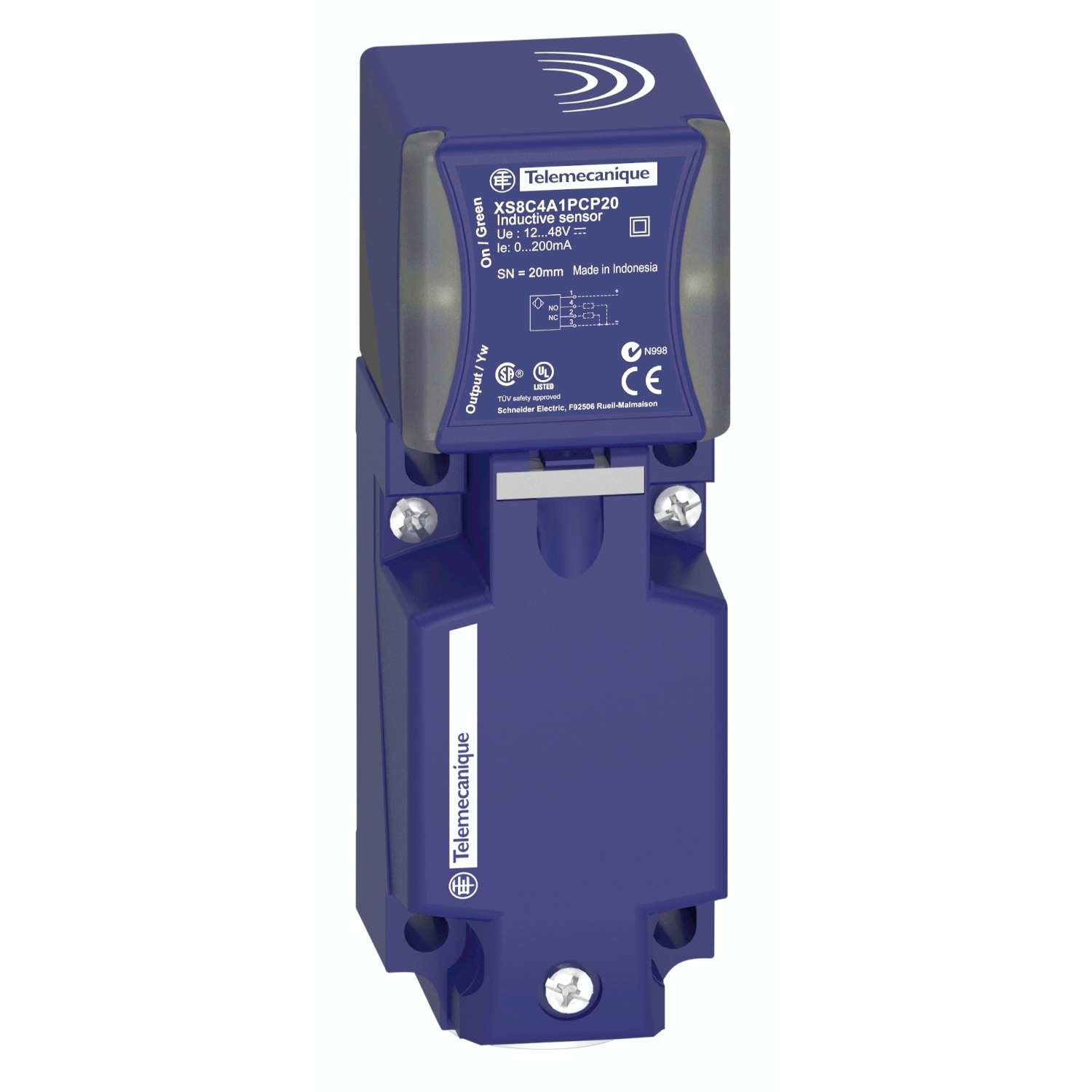

This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25C) and hot environments (+70C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Manuals and Documentation
- Catalog Number
- XS8C4A1NCP20
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- XS8
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- Mobile equipment
- Connector
- Screw-clamp terminals, 4 x 1.5 mm²
- Enclosure
- PBT
- Indicator
- Supply on 1 LED green);output state 1 LED yellow)
- Material
- Plastic
- Mounting
- Flush
- Sensing Range
- 20 MM,> 0.59...1.57 IN (> 15...40 MM)
- Sensor
- 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR
- Special Features
- PLASTIC
- Standard
- IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
- Supply Voltage
- 12...48 V DC reverse polarity protection
- GTIN
- 03389119058285
- Item Type
- Inductive proximity sensor;Form 40 x 40 x 117
- Operating Temperature
- -25-70 A Degrees C
