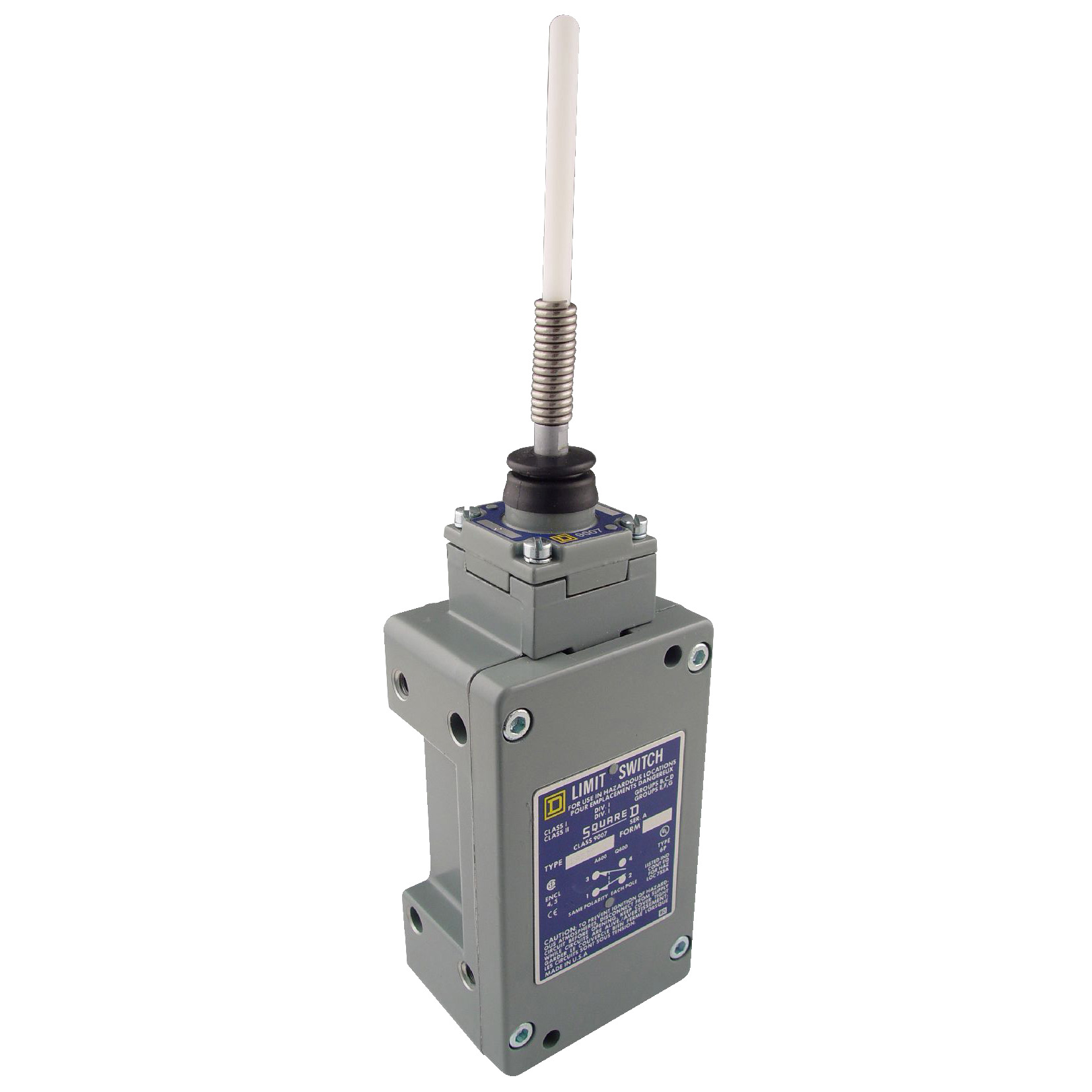

NEMA limit switch, 9007C, heavy duty, standard, spring return wobble stick, Delrin, 10A, 600V, 1NO/1NC, NEMA 7/9
NEMA limit switch, 9007C, heavy duty, standard, spring return wobble stick, Delrin, 10A, 600V, 1NO/1NC, NEMA 7/9
| Location | Available Qty |
|---|---|
| Available | Available to Order |

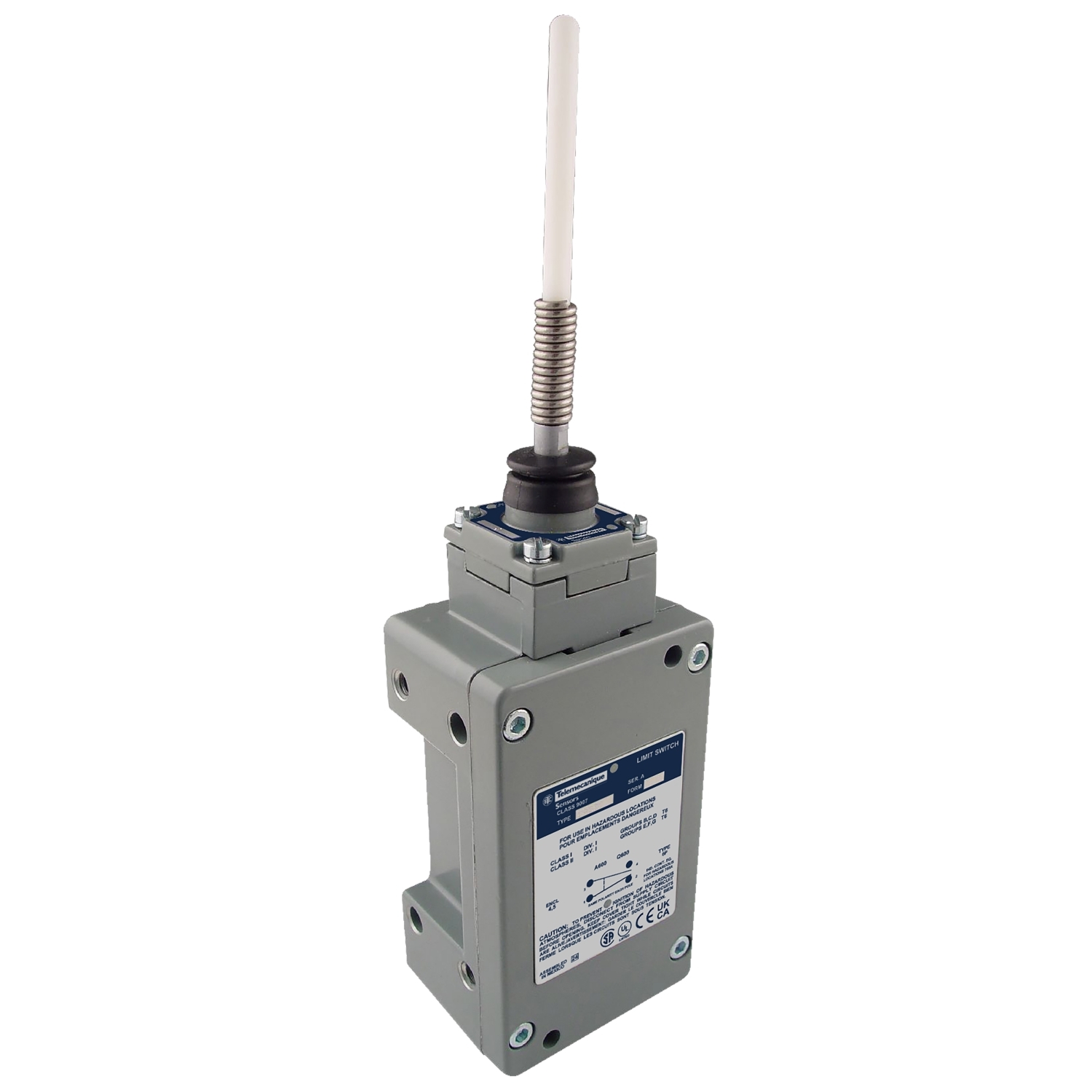

These industrial heavy duty limit switches are applied in almost any environments. This limit switch has a wobble stick with a Delrin extension and has a body and receptacle which is good for hazardous locations. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the Delrin wobble stick is moved in any direction. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The Delrin wobble stick requires 3 lb. of force to operate. This limit switch is 10.35 inches tall, 2.72 inches wide and 2.08 inches deep. This limit switch is UL Listed for hazardous locations, Division I, Class I, Groups B, C, D and Class II, Groups E, F, G. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Manuals and Documentation
- Catalog Number
- 9007CR53J
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- 9007CR
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Action
- By any moving part;Multi-directional approach, multi-directional approach;Snap action
- Actuator
- Acetal resin spring return wobble stick -)
- Amperage Rating
- 10
- Application
- Hazardous location box
- Connection
- Screw-clamp terminals AWG 22...AWG 12), 1-2
- Contact Configuration
- NC-NO;Form Z
- Contact Rating
- NEMA A600/Q600
- Enclosure
- NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Mounting
- By The Body
- Number of Poles
- 1
- Operating Cycles
- 1000000 CYCLES
- Special Features
- without
- Standard
- 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
- UPC
- 785901960799
- GTIN
- 00785901960799
- Item Type
- Limit switch
- Size
- 2.08
- Environmental Conditions
- STANDARD ENVIRONMENT
- Operating Temperature
- -20-185 A Degrees F HAZARDOUS LOCATION
- Voltage Rating
- 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.1 A 600 V DC, Q600 NEMA-0.27 A 250 V AC, Q600 NEMA-0.55 A 125 V DC, Q600 NEMA
