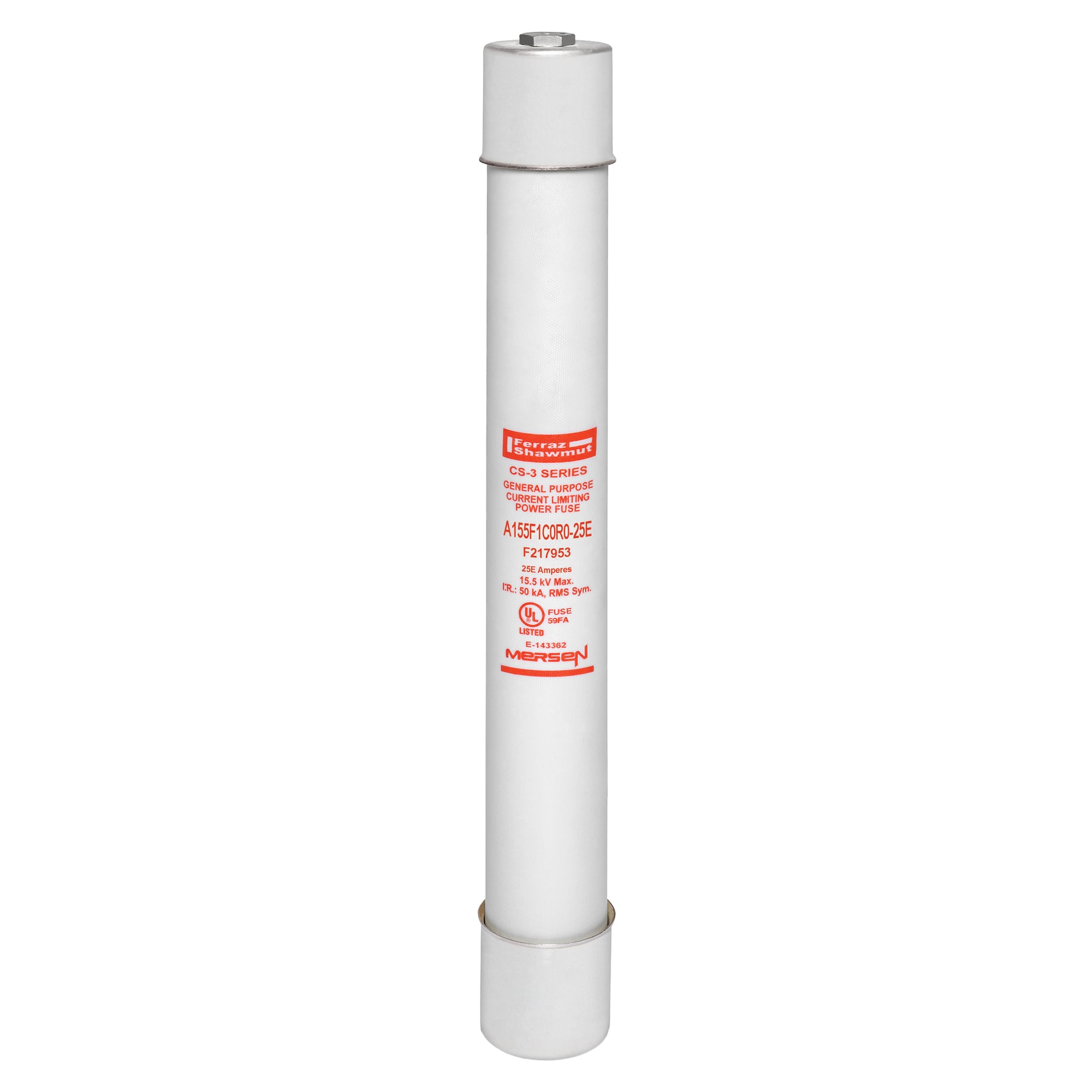

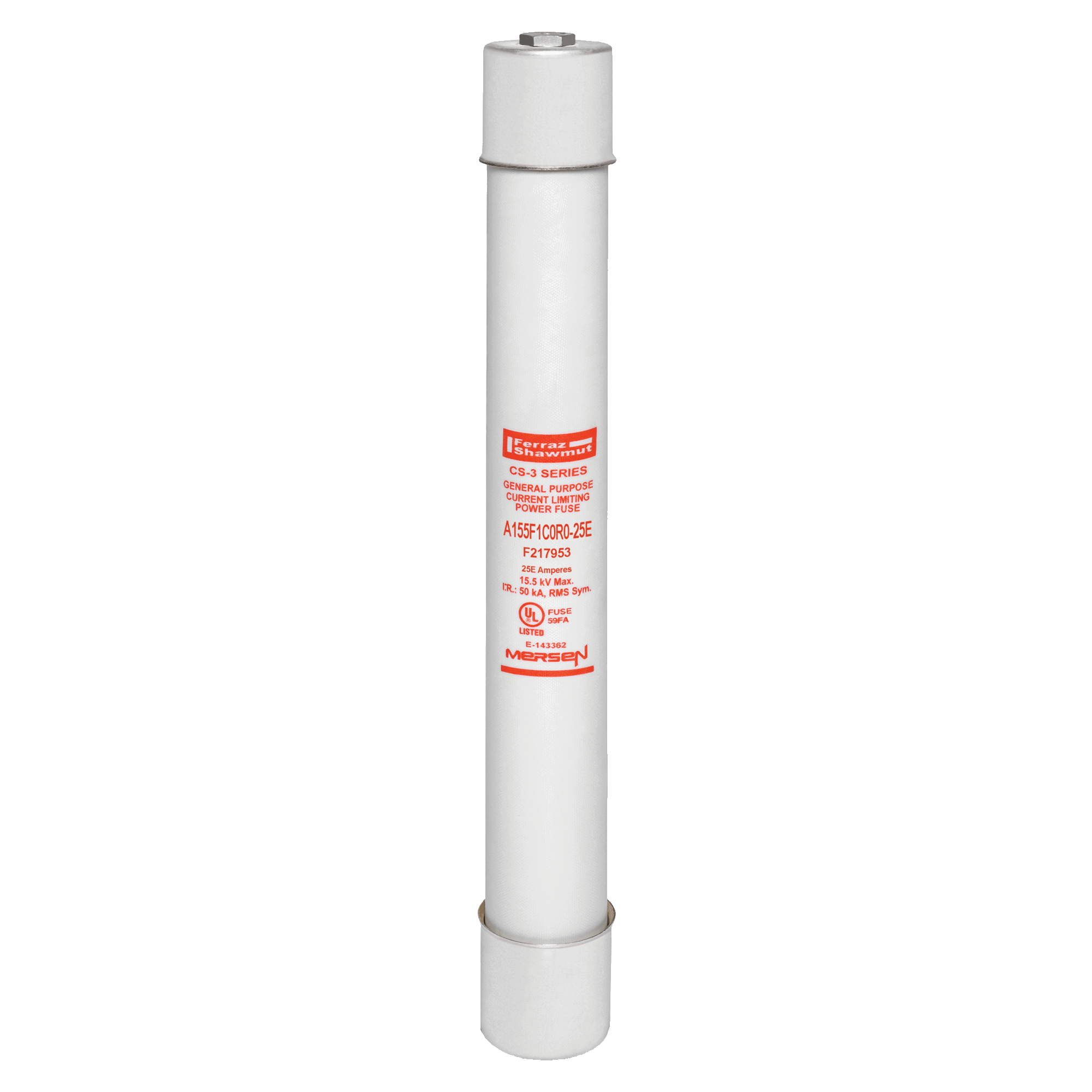

MV E-Rated Fuse 15500VAC 25A Series: C0R0 Visual Indicator
MFR: Mersen
MFR #: A155F1C0R0-25E
UPC: 782001804787
Item #: 757350
MV E-Rated Fuse 15500VAC 25A Series: C0R0 Visual Indicator
MFR #: A155F1C0R0-25E
UPC: 782001804787
Item #: 757350
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Medium Voltage E-Rated Fuse 15500VAC 25A Ferrule, Series: C0R0 Visual Indicator Amp-Trap
Manuals and Documentation
- Catalog Number
- A155F1C0R0-25E
- Manufacturer
- Mersen
- Brand
- Mersen
- Sub Brand
- Amp-Trap®
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 25
- Application
- Protection for 12 kV to 15.5 kV transformers or distribution systems.
- Connection
- Ferrule
- Interrupt Rating
- 50 KA
- Mounting
- Clip
- Special Features
- Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Outdoor usage for the 9F62 and 9F60 type EJO Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60/9F62: 0.125 lb tripped force – 0.20 Inch
- Standard
- Some UL listed to standard File E143362
- UPC
- 782001804787
- GTIN
- 00782001804787
- Item Type
- General Purpose Ferrule Mount Fuses for Transformer Protection
- Size
- 17.03 x 2
- Type of Indicators
- Visual Indicator
- Voltage Rating
- 15500
