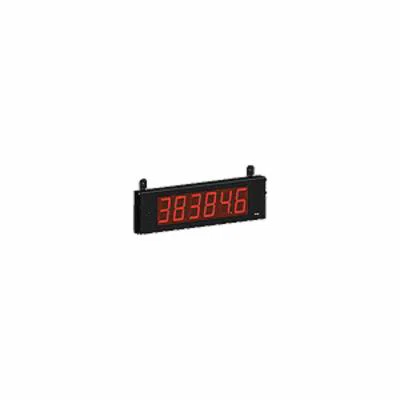

LD4T06P0 LD Series Timer and Cycle Counter, 6 Digits, LED Display

MFR #:
LD4T06P0
Item #:
75313
$1,976.63 each
Product Details

The Large Display Timer and Cycle Counter is a versatile display that functions as an Elapsed Timer or Preset Timer, with full-featured user programmability. The meter includes a built-in Cycle Counter, relay output and serial communications capability. The 6 digit displays are available in either 2.25 in or 4 in high red LED digits with adjustable display intensity. The 2.25 in high models are readable up to 130 feet. The 4 in high models are readable up to 180 feet. Both versions are constructed of a NEMA 4X/IP65 enclosure in light weight aluminum. The Timer has two signal inputs and eight input operating modes. These modes provide level active or edge triggered start/stop operation. The Timer features 18 selectable timer ranges to cover a wide variety of timing applications. The built-in Cycle Counter can be linked to timer operation to count timing cycles, or function as a totally independent counter, accepting count speeds up to 500 Hz. The display can be toggled either manually or automatically between the Timer and Counter values. In addition to the Timer/Counter inputs, a programmable User Input is provided to perform a variety of meter functions. DIP switches are used to configure the inputs for current sinking (active low) or current sourcing (active high) operation. The Setpoint Output can be assigned to the Timer or Counter value, and configured to suit a variety of control and alarm requirements. The meter also includes RS232 or RS485 serial communications.

Manuals and Documentation

Features

  • 2.25 and 4 in high red LED digits
  • 6-digit bi-directional timing capability
  • 5-digit cycle counting capability
  • Selectable timer ranges and operating modes
  • Elapsed timer and preset timer functionality
  • Programmable user input
  • Universally powered
  • 5 A form c relay output
  • 50 to 250 VAC/21.6 to 250 VDC voltage rating

Specifications

Identifiers

Identifiers
Manufacturer Part Number
LD4T06P0

General Information

General Information
Manufacturer
Red Lion Controls
Brand
redlion®
General Information
Standards Approvals
cULus Listed | CE EN 61326-1

Dimensions

Dimensions
Dimensions
7-7/8 in L x 26 in W x 2-1/4 in D

Technical Information

Technical Information
Display Type
LED
Enclosure Type
NEMA 4X/IP65
Frequency Rating
50/60 Hz
Input
DIP Switch
Material
Aluminum
Technical Information
Number Of Digits
6
Output
Relay
Series
LD Series
Temperature Rating
0 to 65 deg C
