Telemecanique

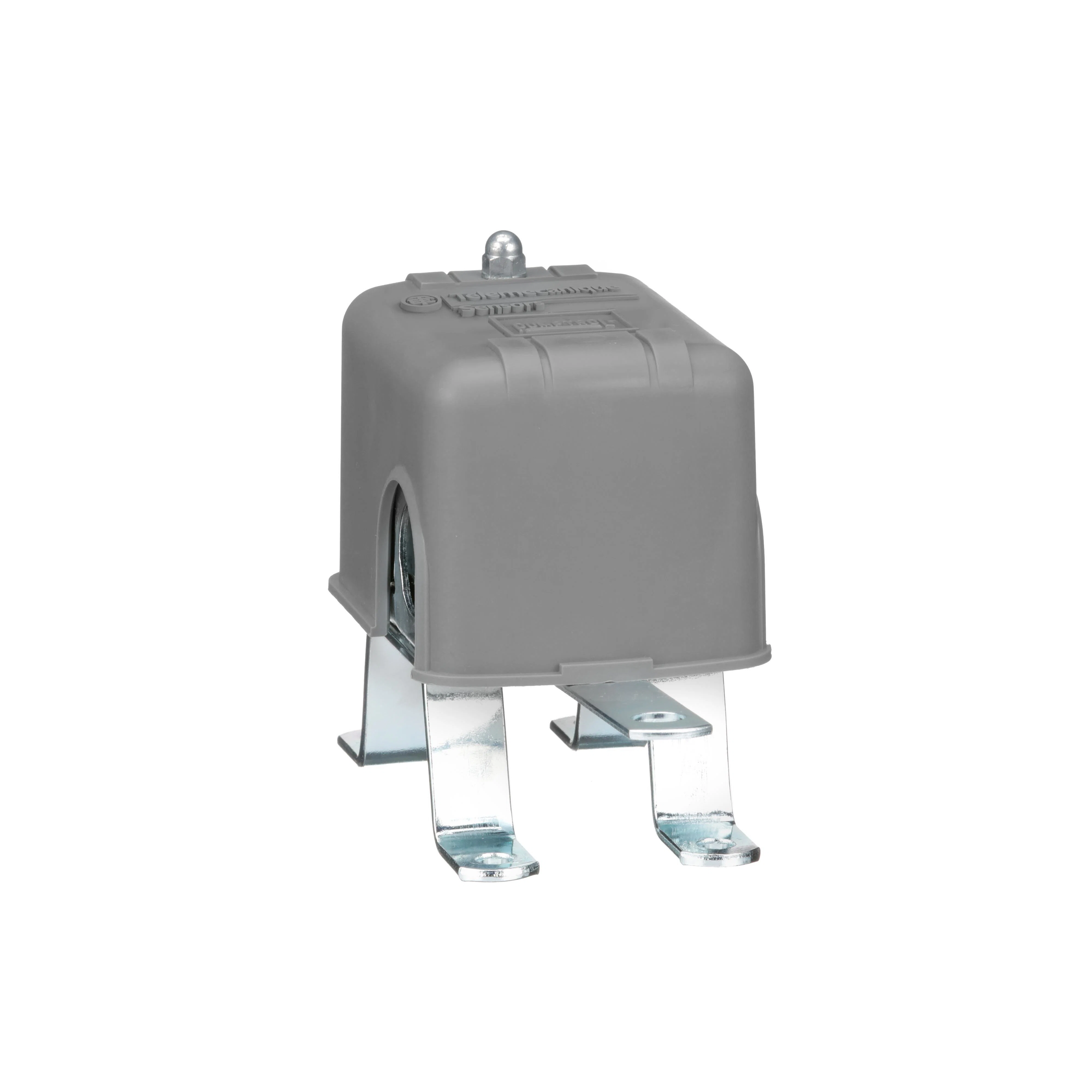

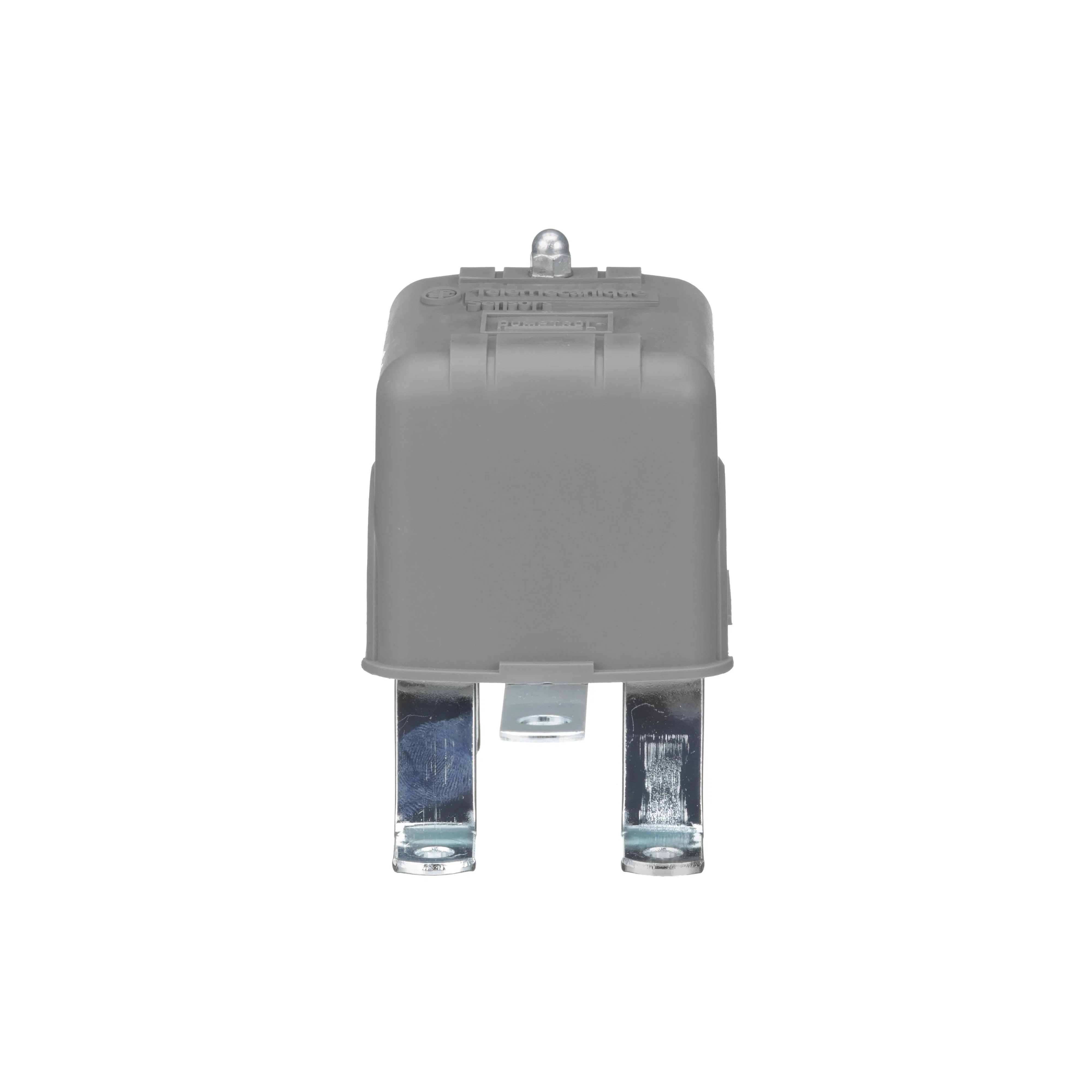

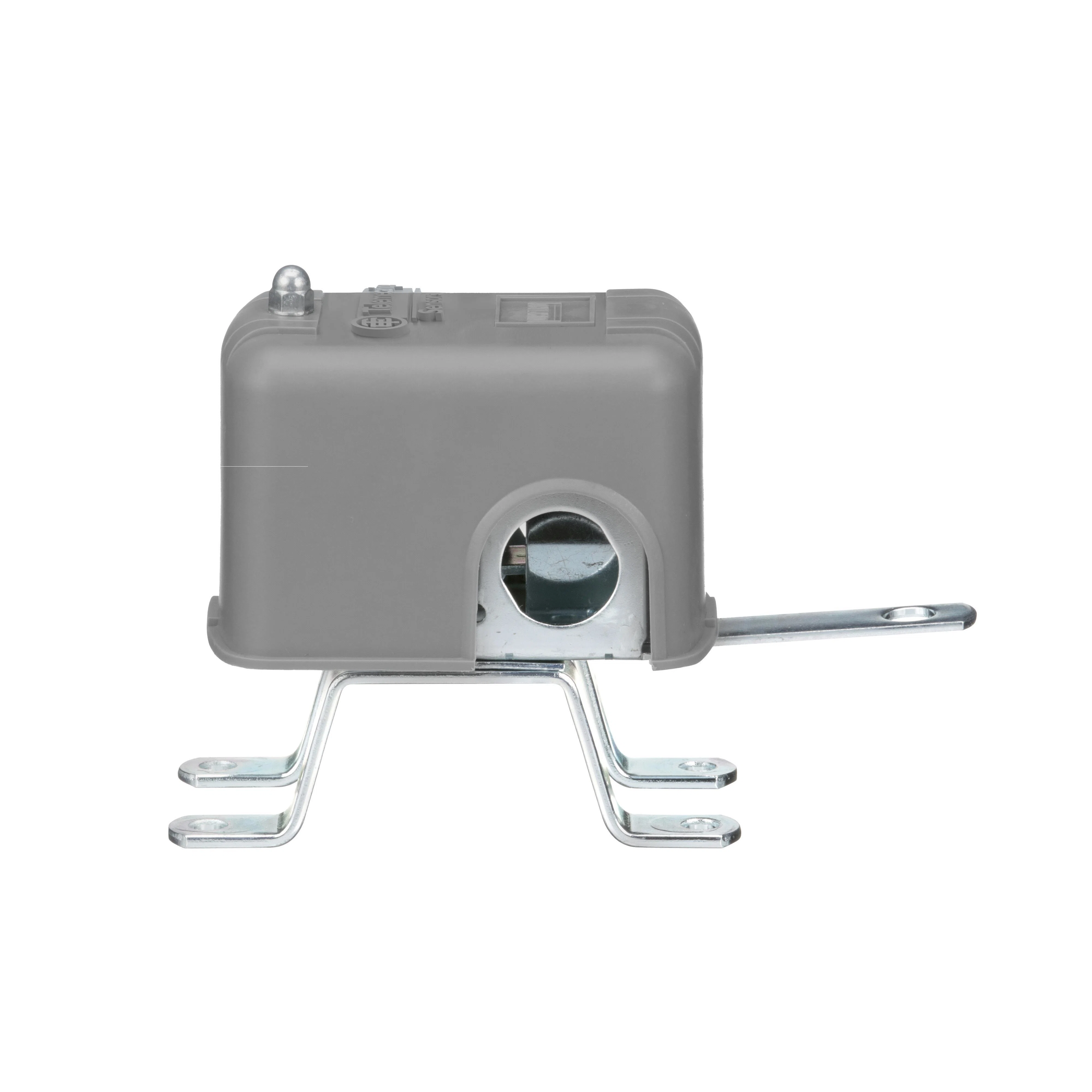

9036DG2 9036 Level Control Standard Float Switch, 575 V AC

MFR:
YAGEO Corporation
MFR #:
9036DG2
UPC:
785901575214
Item #:
74642

Availability

Location Available Qty
Available Available to Order
$106.44 each

Telemecanique, 9036DG2, Standard Float Switch, Level Control, Series: 9036, 575 V AC, 10 AWG Screw Clamp Connection, 2.53 in H x 3.93 in W x 2.53 in D Size, NEMA 1 Enclosure, -22 to 220 deg F Operating, Surface Mounting

Manuals and Documentation

Features

  • 3 knockouts for 1/2 in conduit UL 508 cable entry number
  • Contacts close on liquid rise contact operation
  • Variable adjustable float movement
  • 8 oz force down to trip
  • 9 oz force up to trip
  • 20 A cartridge fuse gG short circuit protection
  • Polypropylene or equivalent enclosure
  • 100 cycles at 60 cycles/min electrical durability
  • 300 cycles mechanical durability
  • 4 terminals, 60 cycles/min operating rate
  • Vertical float rod angle
  • Without local signaling
  • 2 NC DPST contacts
  • -22 to 220 deg F storage temperature
Manufacturer Part Number 9036DG2
Brand Telemecanique
Manufacturer YAGEO Corporation
UPC 785901575214
EAN 0785901575214
Country Of Origin MX
Enclosure Type NEMA 1
Mounting Type Surface
Series 9036
Type Level Control
Voltage Rating 575 V AC
Size 2.53 in H x 3.93 in W x 2.53 in D
Alternative Part Number 8100458
Manufacturer Item Status Active
Country USA/Canada
Warranty 18 months
Standards Approvals CE Certified | CSA File No. LR25490 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov | RoHS Compliant | UL 50/508 File No. E12158
Application For open tank general purpose and liquid level control applications
Connection Type 10 AWG Screw Clamp
Operating Temperature -22 to 220 deg F
