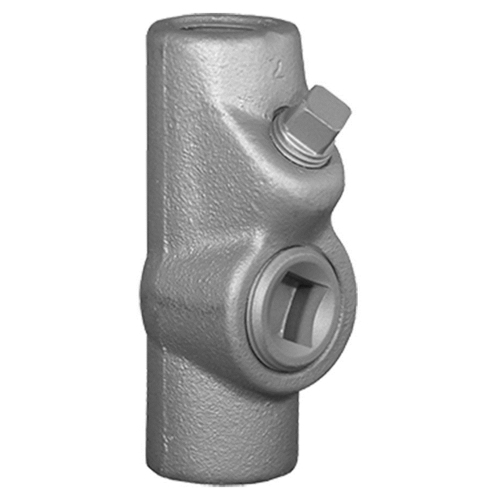

Female Vertical & Horizontal Conduit Seal for Close Turning Radius; 3/4 In
MFR: Appleton Electric
MFR #: EYF-75
UPC: 781381135122
Item #: 74163
Female Vertical & Horizontal Conduit Seal for Close Turning Radius; 3/4 In
MFR #: EYF-75
UPC: 781381135122
Item #: 74163
Availability
| Location | Available Qty |
|---|---|
| Available | 11 |
$48.28
each
UNILETS EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 3/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Turning Radius: 1.
Manuals and Documentation
- Catalog Number
- EYF-75
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Rigid Metal Conduit and IMC
- Connection
- Female Threaded
- Finish
- Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
- Material
- Malleable Iron
- Special Features
- For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con
- Standard
- UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
- RoHS Indicator
- Contact Manufacturer
- UPC
- 781381135122
- GTIN
- 00781381135122
- Item Type
- EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
- Length
- 5.0000
- Length UOM
- Inch
- Width
- 4.8000
- Width UOM
- Inch
- Height
- 0.8200
- Height UOM
- Inch
- Weight
- 0.800
- Weight UOM
- Pounds
- Size
- 3/4
