Telemecanique
YAGEO Corporation

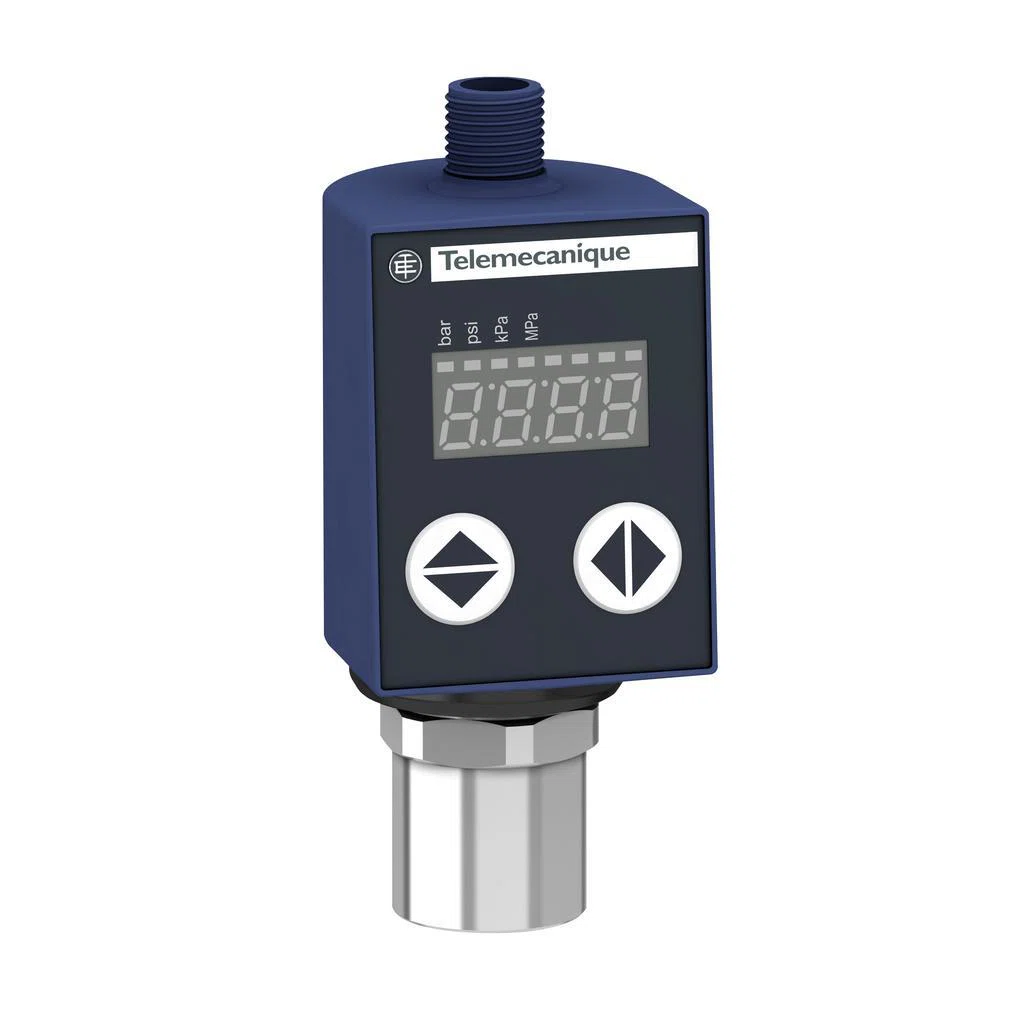

XMLR025G0T26 XMLR Pressure Sensor, <=10 ms Response, Analog Output, 24 V DC
- MFR #:
- XMLR025G0T26
- Item #:
- 714751
$655.69
each
Product Details
Telemecanique, XMLR025G0T26, Pressure Sensor, Series: XMLR, <=10 ms Response, Analog Output, 24 V DC, </=50 mA, 4-Pin M12 Male Connector Connection, 10 MPa Pressure, 3.94 in H x 1.61 in W x 1.65 in D Size, NEMA IP65/IP67 Enclosure, -4 to 176 deg F Operating, Environmental Conditions: -40 to 176 deg F Storage Temperature
Manuals and Documentation
Features
- 362.59 psi pressure sensor
- 4 digits 7 segments display type
- Fast 50 msNormal 200 msSlow 600 ms display response time type
- +/- 0.1 % of measuring range/ deg C drift of the zero point
- Any position, but disposals can falsified the measurement in case of upside down mounting operating position
- <= 1 % of the measuring range overall accuracy
- <= 0.6 % of the measuring range measurement accuracy on switching output
- Polyester front material
- 0.5 kV DC uimp rated impulse withstand voltage
- Polyacrylamide, 316L stainless steel housing material
- Reverse polarity, load short circuit protection
- <= 0.5 % of the measuring range linearity error on analogue output
- 1/4-18 NPT male fluid connection
- 300 ms maximum delay first up
- >=10000000 cycles mechanical durability
- Fresh water 32 to 176 deg F (0 to 80 deg C) Air -4 to 176 deg F (-20 to 80 deg C) Hydraulic oil -4 to 176 deg F (-20 to 80 deg C) Refrigeration fluid -4 to 176 deg F (-20 to 80 deg C) controlled fluid
- Ceramic, fluorocarbon FKM (viton), stainless steel type AISI 303, material in contacts with fluid
Specifications
Identifiers
| Manufacturer Part Number |
XMLR025G0T26
|
|---|
| EAN |
3389119610988
|
|---|
General Information
| Manufacturer |
YAGEO Corporation
|
|---|---|
| Brand |
Telemecanique
|
| Country Of Origin |
CH
|
| Standards Approvals |
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | EN/IEC 61326-2-3-UL 61010-1 | cULus Listed | EAC | RCM Certified | EN/IEC 60947-5-1 | RoHS Compliant
|
|---|---|
| Application |
Pressure transmitter
|
Dimensions
| Size |
3.94 in H x 1.61 in W x 1.65 in D
|
|---|
Technical Information
| Amperage Rating |
=50 mA
|
|---|---|
| Connection Type |
4-Pin M12 Male Connector
|
| Enclosure Type |
NEMA IP65/IP67
|
| Environmental Conditions |
-40 to 176 deg F Storage Temperature
|
| Operating Temperature |
-4 to 176 deg F
|
| Output Type |
Analog
|
| Pressure Rating |
10 mpa
|
|---|---|
| Response Time |
<=10 ms
|
| Series |
XMLR
|
| Type |
Pressure Transmitter
|
| Voltage Rating |
24 V DC
|
