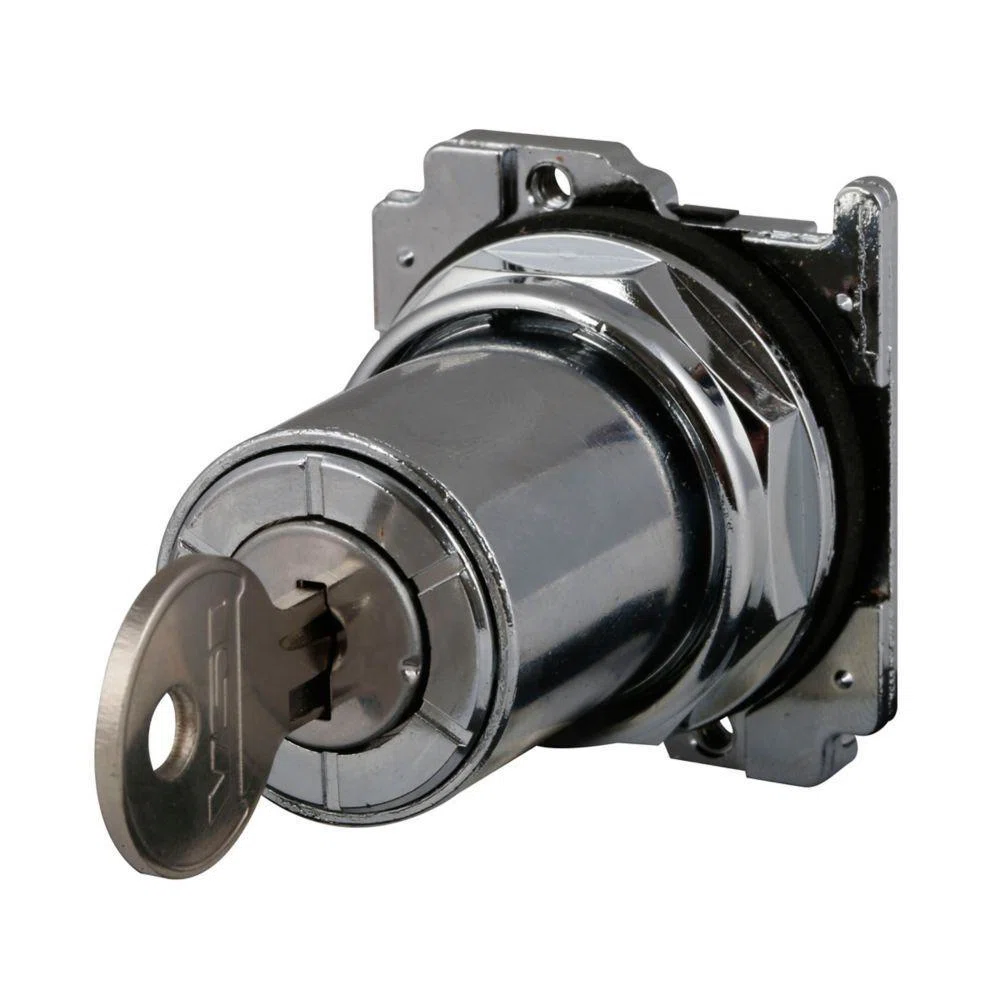

10250T15237 Heavy Duty Non-Illuminated Oiltight/Watertight Selector Switch Operator With Cam Code 3, 30.5 mm, 3 Positions, Silver
- MFR #:
- 10250T15237
- UPC:
- 782113227566
- Item #:
- 70913
10250T15237 Heavy Duty Non-Illuminated Oiltight/Watertight Selector Switch Operator With Cam Code 3, 30.5 mm, 3 Positions, Silver
- MFR #:
- 10250T15237
- UPC:
- 782113227566
- Item #:
- 70913
$408.79
each
Product Details
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
Manuals and Documentation
Features
- EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
- Earth terminal provides additional grounding point and allows for daisy chain grounding
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Front of panel drainage holes
- 60 deg throw
Specifications
Identifiers
| Manufacturer Part Number |
10250T15237
|
|---|---|
| GTIN |
00782113227566
|
| UPC |
782113227566
|
|---|
General Information
| Manufacturer |
Eaton
|
|---|---|
| Brand |
EATON
|
| Country Of Origin |
DO
|
| Standards Approvals |
UL Listed,CSA Certified,CE Marked
|
|---|---|
| Application |
Automation and Logic Control Equipment Applications
|
Dimensions
| Size |
30.5 mm
|
|---|
Technical Information
| Bezel Housing |
Polished Chrome
|
|---|---|
| Color |
Silver
|
| Contact Mode |
Maintained
|
| Enclosure Type |
NEMA 3/3R/4/4X/12/13/IP65
|
| Material |
Die Cast Zinc
|
| Mounting Type |
Surface
|
|---|---|
| Number Of Positions |
3
|
| Operator Type |
Keyed
|
| Series |
10250T
|
| Type |
Heavy Duty Non-Illuminated Oiltight/Watertight
|
