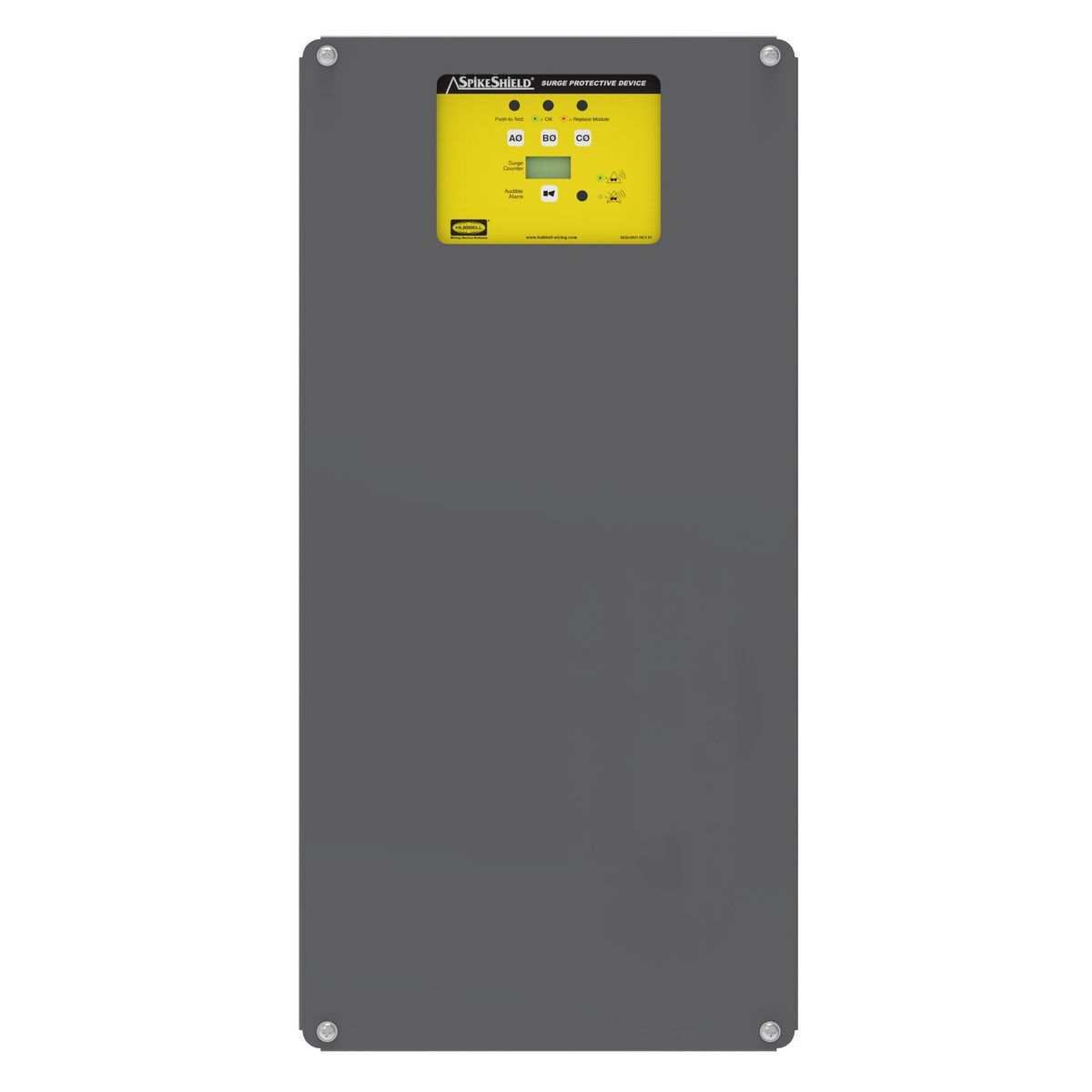

HBL8P320B Branch Service Standard Surge Protective Panel, 277/480Y V AC, 60 Hz, 3 Phase, 4 Poles, 10 to 2 AWG Wire
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL8P320B
- UPC:
- 783585570280
- Item #:
- 704024
Discontinued
HBL8P320B Branch Service Standard Surge Protective Panel, 277/480Y V AC, 60 Hz, 3 Phase, 4 Poles, 10 to 2 AWG Wire
- MFR #:
- HBL8P320B
- UPC:
- 783585570280
- Item #:
- 704024
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

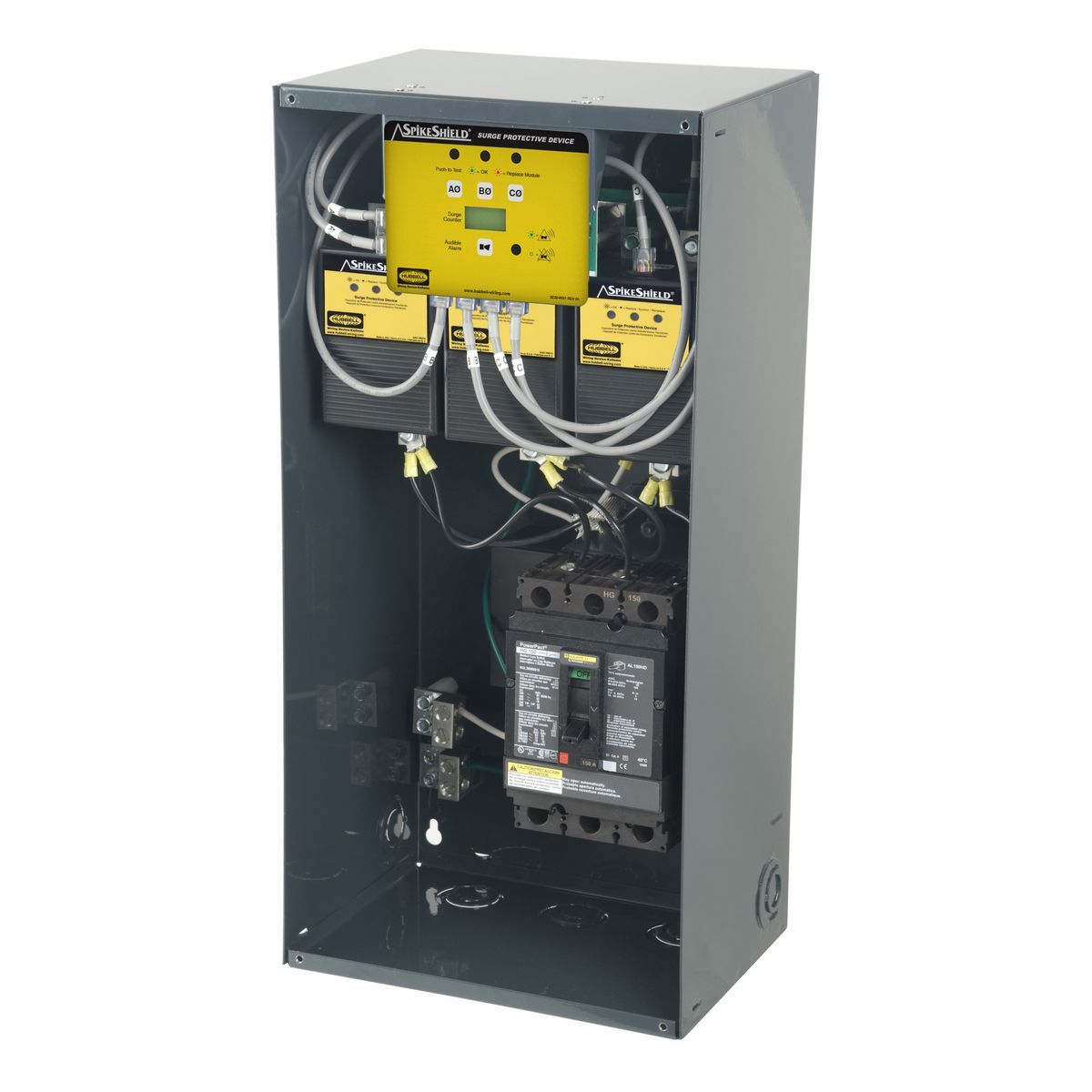

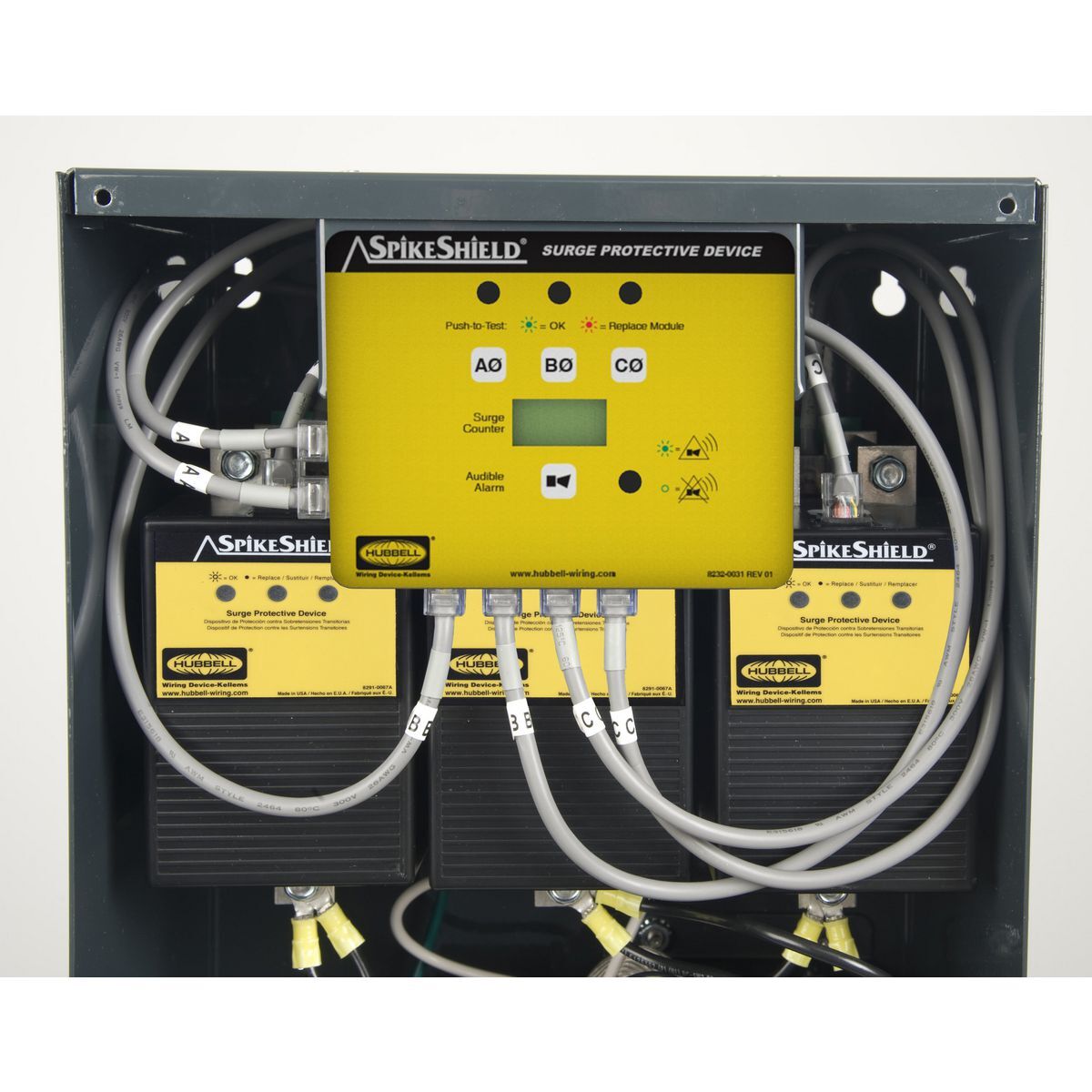

320kA and 160kA Service/Branch Panel Protection - The SpikeShield service entrance product line includes a line of panels with replaceable modules. This series features improved performance through the use of a low impedance bus-bar design and easily replaceable bolt-down modules. They incorporate a modular (replaceable surge protection modules) design and feature the latest industry approvals and safety ratings. Including UL1449 4th edition.
Manuals and Documentation
| Catalog Number | HBL8P320B |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Circuit Protection |
| Connection | Terminal Screws |
| Frequency Rating | 60Hz |
| Material | Composite |
| Mounting | Screw |
| Phase | 3 |
| Response Time | Approx 5 ns |
| Short Circuit Rating | 320KA |
| Special Features | Standard Unit |
| Standard | UL 1449 3rd Edition, UL 498 |
| UPC | 783585570280 |
| GTIN | 00783585570280 |
| Item Type | 320kA |
| Size | Standard |
| Environmental Conditions | Indoor dry unless protected by an additional means |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Type of Indicators | LED and Audible Alarm |
| Voltage Rating | Wye 277/480 |
