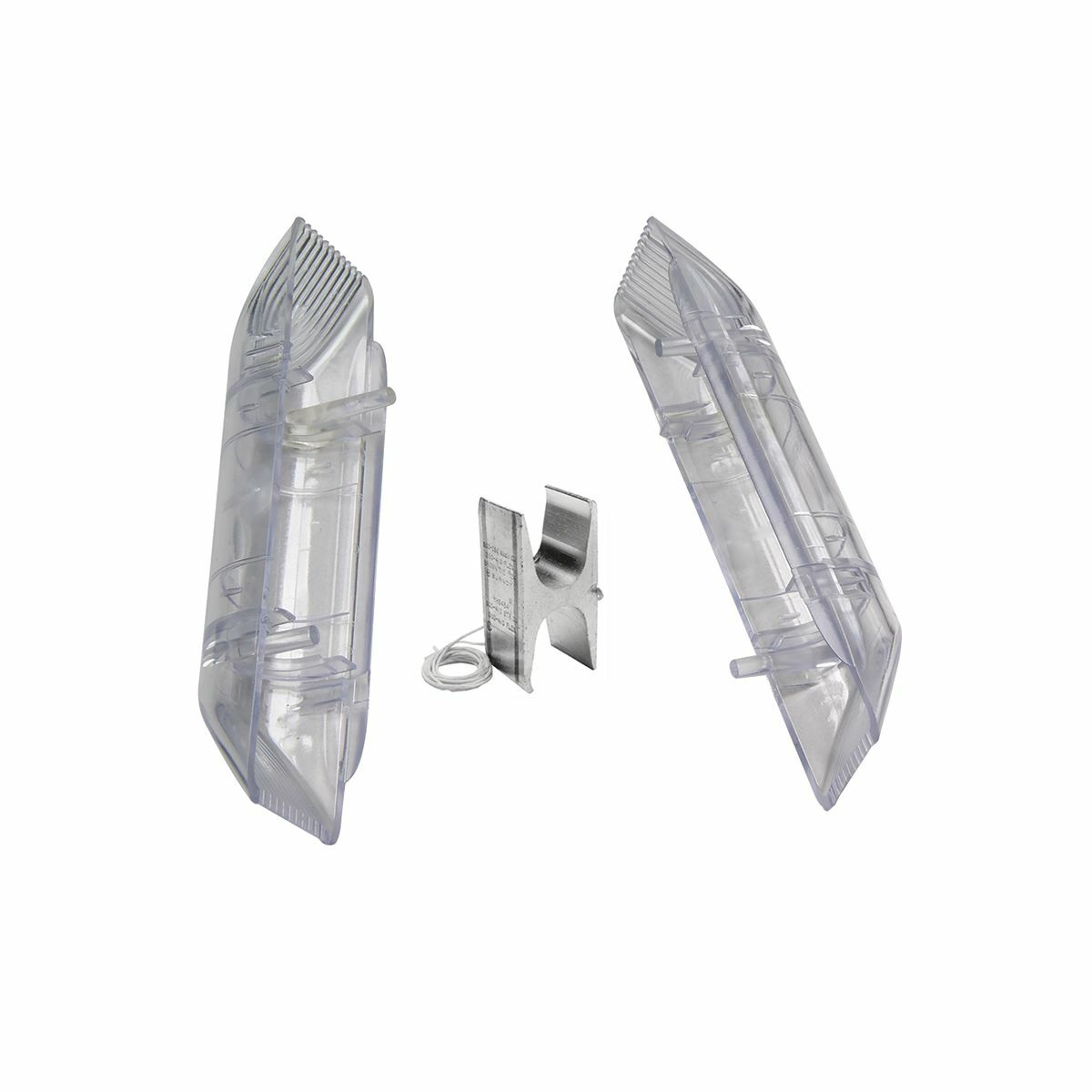

Cu-code-H-Tap Crimpit, 750-500(550-500)(Main), 750-350(550-350), Flame retardent.
MFR: Burndy, a Hubbell affiliate
MFR #: YH3939WCC
UPC: 781810436493
Item #: 695189
Cu-code-H-Tap Crimpit, 750-500(550-500)(Main), 750-350(550-350), Flame retardent.
MFR #: YH3939WCC
UPC: 781810436493
Item #: 695189
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$320.55
each
Manuals and Documentation
- Catalog Number
- YH3939WCC
- Manufacturer
- Burndy, a Hubbell affiliate
- Brand
- BURNDY
- Sub Brand
- CRIMPIT
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- Wire Tap
- Finish
- Tin-Plated
- Material
- COPPER
- Special Features
- Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Color Code: Yellow, Wire Strip Length: 1-3/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y46 Tool, PYFR Die, (1), Die Index: KR Element A, Cover Packaged With Connector: Yes, Flame Retardant Cover: CFR-FR, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (run - Range): 500 - 750 KCMIL, Conductor Size (tap Range): 350 - 750 KCMIL, Shape: H
- Standard
- UL 486A-486B
- UPC
- 781810436493
- GTIN
- 00781810436493
- Item Type
- Compression Taps
- Temperature Rating
- 194
- Voltage Rating
- 35
