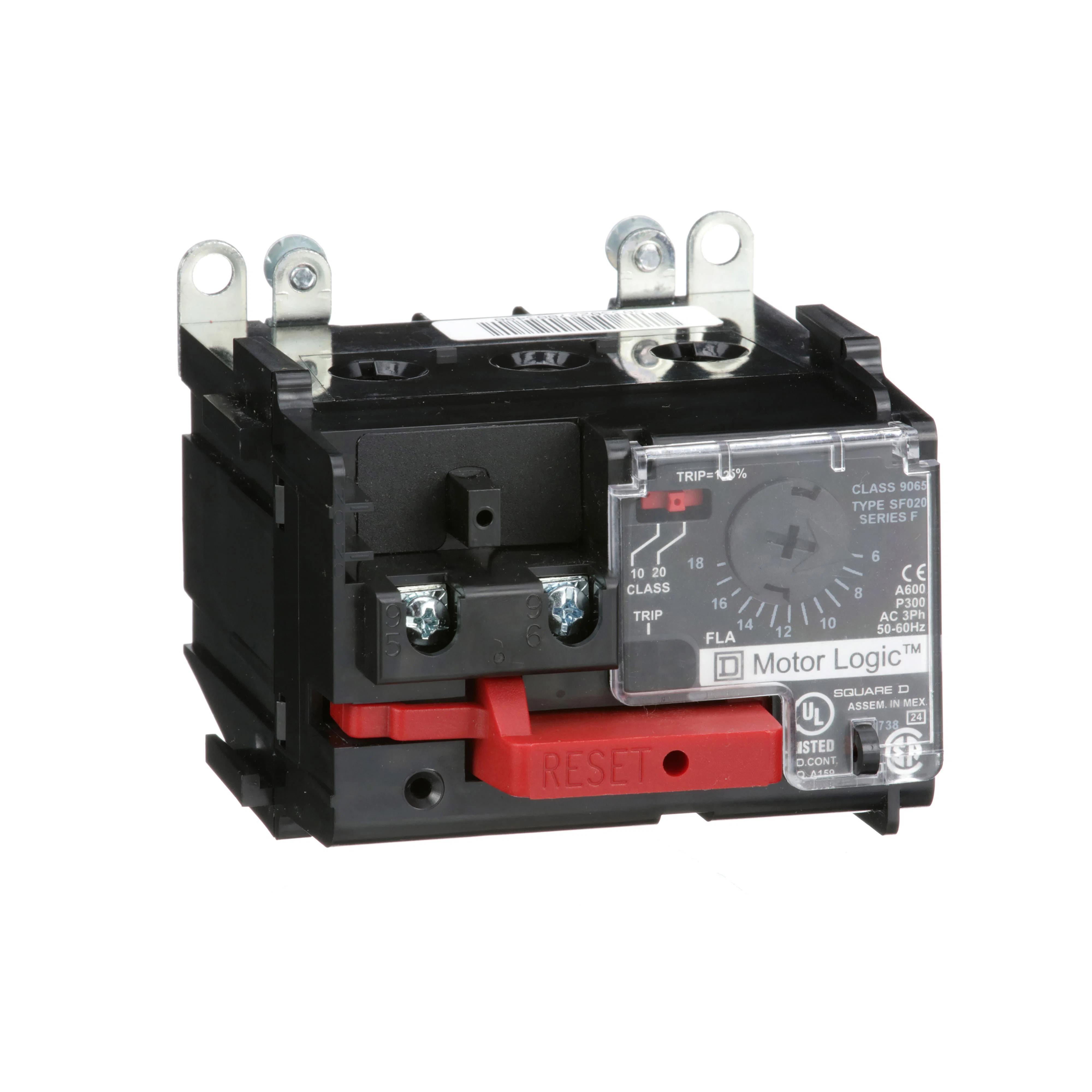

9065SF020 Solid-State Thermal Overload Relay, 18 A
- MFR:
- Schneider Electric
- MFR #:
- 9065SF020
- UPC:
- 785901749929
- Item #:
- 67674
9065SF020 Solid-State Thermal Overload Relay, 18 A
- MFR #:
- 9065SF020
- UPC:
- 785901749929
- Item #:
- 67674
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 0 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 6A to 18A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. Electrical remote reset is available. The visible trip indicator and trip test function make trouble shooting much quicker. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified. Separate mount overload relays are UL listed and CSA certified.
Manuals and Documentation
Features
- Comes standard installed both non-reversing and reversing and combination and multispeed starters
- Simple Installation
- Field interchangeable thermal units for replacement motor installations
- Available as direct mount or separate mount
- Provides thermal protection for the most costly equipment
| Manufacturer Part Number | 9065SF020 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901749929 |
| EAN | 0785901749929 |
| Country Of Origin | MX |
| Amperage Rating | 18 A |
| Dimensions | 6.1 in W x 5.3 in D x 5.5 in H |
| Enclosure Type | NEMA 0 |
| Mounting Type | Surface |
| Type | Solid-State |
| Alternative Part Number | 8156777 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | RoHS Compliant | CE/CSA/NOM Certified | UL Listed | PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Contact Rating | 18 A at 600 V AC |
| Frequency Rating | 50/60 Hz |
| Number Of Poles | 3 |
