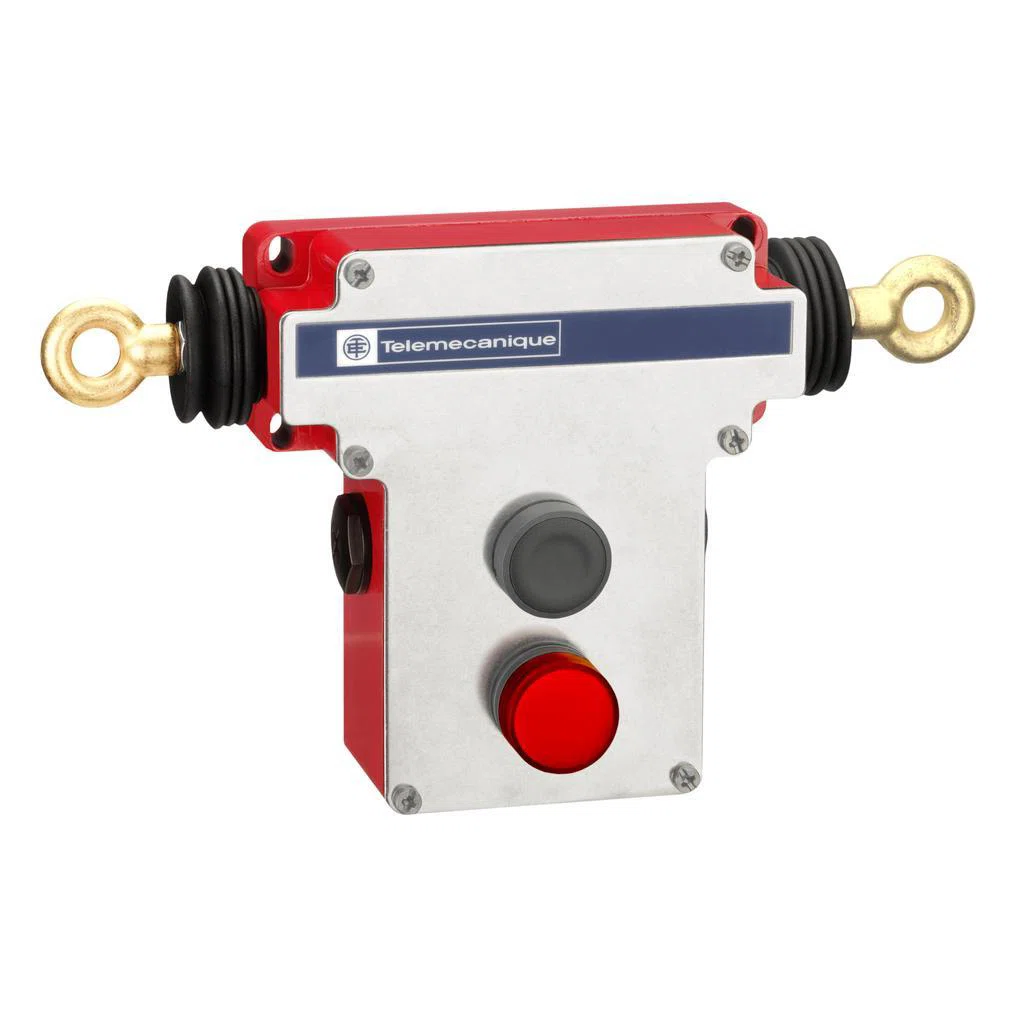

XY2CEDA196H7 Preventa Latching Emergency Stop Rope Pull Switch With Pilot Light, 24 to 130 V, 10 A, 2NO-2NC Contact
- MFR #:
- XY2CEDA196H7
- UPC:
- 785901013235
- Item #:
- 667881
XY2CEDA196H7 Preventa Latching Emergency Stop Rope Pull Switch With Pilot Light, 24 to 130 V, 10 A, 2NO-2NC Contact
- MFR #:
- XY2CEDA196H7
- UPC:
- 785901013235
- Item #:
- 667881
Product Details
XY2-CE and XY2-CH cable pull switches provide for an emergency stop to be signaled at any point along a cable up to 165 ft in L. typical applications include conveyor systems, packaging, textiles, transfer machines, presses, woodworking equipment and paint lines. operation is based on the taut cable principle. cable must be tight and have appropriate tension applied to set or reset the switch. once cable tension has been set, the device will open the N.C. positive opening contacts if either the cable is pulled or if it should become slack due to stretching or breakage. normal stop versions are used where a momentary, non-emergency signal is required at any point along a cable. Cable pull switches are frequently used in place of individual emergency stop push buttons around a machine or conveyor. the cost of the cable pull switch and installation is usually less than the cost of installing individual emergency stop stations required to meet codes and standards. as more individual emergency stop push buttons are required, using a cable pull device becomes more attractive and cost-effective. an added benefit is that the cable pull switch is available continuously along the cable run and is easy for personnel to pull and operate.
Manuals and Documentation
Features
- H7 - 1/2 in NPT tapped cable entry version
Specifications
Identifiers
| Manufacturer Part Number |
XY2CEDA196H7
|
|---|---|
| GTIN |
03606480880117
|
| UPC |
785901013235
|
|---|---|
| EAN |
3606480880117
|
General Information
| Manufacturer |
YAGEO Corporation
|
|---|---|
| Brand |
Telemecanique
|
| Country Of Origin |
FR
|
| Warranty |
18 Months
|
|---|---|
| Standards Approvals |
Green Premiumâ„¢ | REACH Compliant | PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
|
| Application |
Material Handling, HVAC, Crane and Hoist, Manufacturing, Automotive, Food and Beverage, Complex and Special Machines and Industrial Markets
|
Technical Information
| Action |
Slow-Break
|
|---|---|
| Actuator |
Flush/Pushbutton
|
| Amperage Rating |
10 A
|
| Contact Configuration |
2NO-2NC
|
| Contact Rating |
3 A at 240 V/15 V AC/0.27 A at 250 V/13 V DC
|
| Enclosure Type |
IP66
|
| Material |
Zamak
|
|---|---|
| Series |
XY2CE
|
| Temperature Rating |
-25 to 70 deg C
|
| Terminal Type |
Screw Clamp
|
| Type |
Latching Emergency Stop
|
| Voltage Rating |
24 to 130 V
|
