Appleton

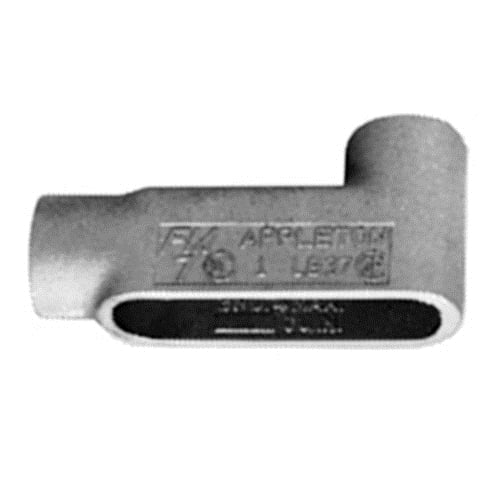

Conduit Outlet Body, Type LB, 2 Hubs, 4 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 4.56 in L x 2.25 in W x 2.25 in H

Name: Conduit Outlet Body, Type LB, 2 Hubs, 4 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 4.56 in L x 2.25 in W x 2.25 in H
Brand: Appleton
SKU: 64942
Price: 28.15 USD
Availability: OutOfStock

MFR: Appleton Electric

MFR #: LB17

UPC: 781381506687

Item #: 64942

Conduit Outlet Body, Type LB, 2 Hubs, 4 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 4.56 in L x 2.25 in W x 2.25 in H

Appleton Electric

Conduit Outlet Body, Type LB, 2 Hubs, 4 cu-in, 7, NEMA FB-1 Enclosure, Tapered FNPT, Surface Mount, Grayloy Iron, Triple Coated, Gray, 4.56 in L x 2.25 in W x 2.25 in H

MFR #: LB17

UPC: 781381506687

Item #: 64942

Availability

Location	Available Qty
Available	Available to Order

$28.15 each

Product Details

FM7 UNILETS Type LB Conduit Outlet Body, Hub Size: 1/2 IN, Form: 7, Length: 4.56 IN, Height: 2-1/4 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female T

Manuals and Documentation

Specifications

Catalog Number: LB17

Manufacturer: Appleton Electric

Brand: Appleton

Sub Brand: UNILETS

Country of Origin: Mexico

Made in USA: No

Application: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC

Color: Gray

Connection: Tapered Female Threaded

Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)

Form: 7

Hub Size: 1/2 IN

Material: Grayloy-Iron

Special Features: Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 4 CU-IN as per NEC 314.16(A)
