Leviton® Leviton

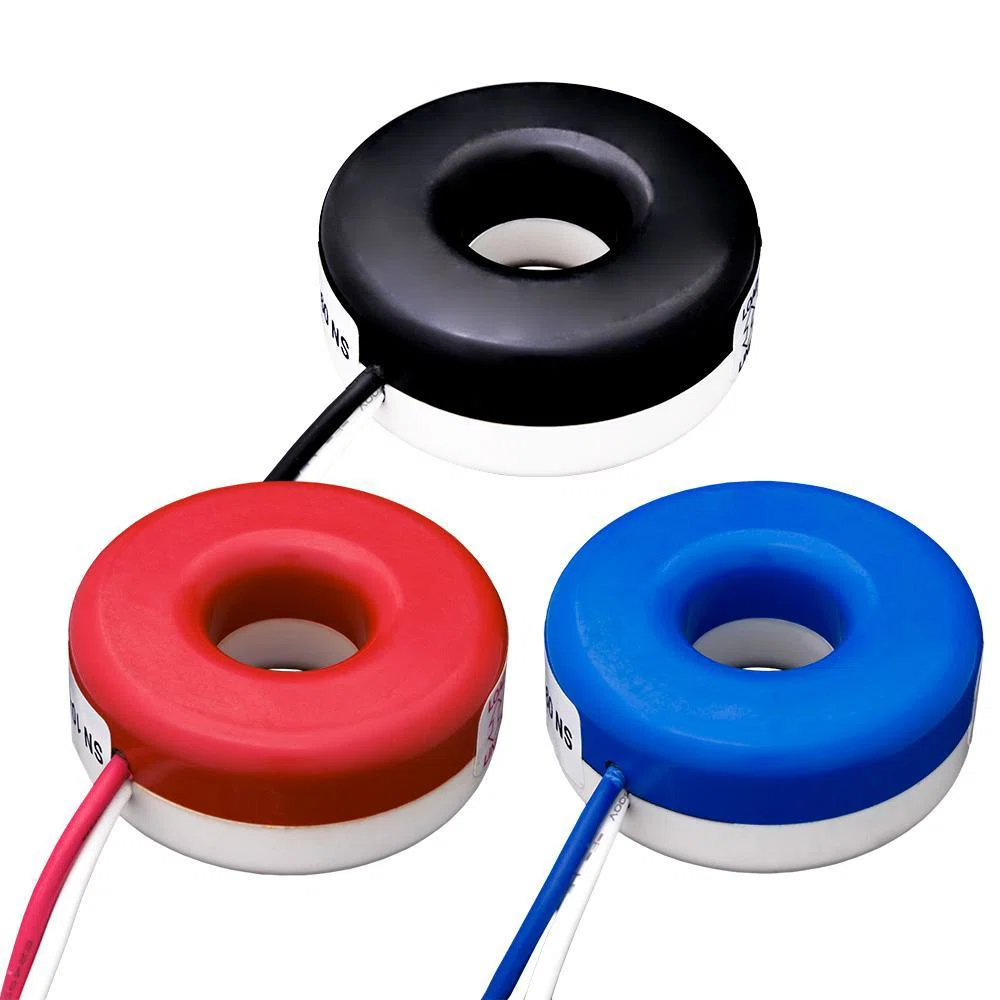

CDA01-312 Solid Core Sub-Metering Current Transformer Kit, 100:0.1 Current Ratio, 100 A Primary, 0.1 A Secondary

MFR #:
CDA01-312
UPC:
078477547151
Item #:
646254
$148.58 each
Product Details

Leviton® current transformers (CTs) support our full line of VerifEye™ revenue grade meters and help meet all measurement and verification based opportunities including smart metering and LEED rating achievement. Designed as part of a simple and effective process for accurately capturing measurements of power consumption, CTs are easy to specify and install for new construction and retrofits. The better the equipment, the better the measurement. Leviton® meters utilize highly accurate current transformers for revenue grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same level of performance. CTs come as solid core standard for high quality, long-term accuracy and reliability. Solid core CTs deliver +/-0.3% accuracy. Split core and Rogowki coil CTs deliver +/-1% accuracy. For added safety, all Leviton® current transformers come with built-in voltage suppression devices that prevent hazardous voltages from developing on CT secondary's should they become disconnected from a meter with load current present. Leviton® CTs are UL and cUL listed devices.

Manuals and Documentation

Features

  • Split core CTs can be disassembled or split in to halves eliminating the need to turn power off and open the circuit during installation
  • This time-saving installation is ideal for critical loads that cannot be disconnected
  • They are comp current transformer and cost-effective transformative
  • Solid core current transformers are accurate (0.3% maximum error)
  • For installation, power must be de-energized and the circuit opened in order to slip the current transformer over the power line
  • Split core CTs close securely
  • Eliminating the need to turn power off and open the circuit during installation
  • This time-saving installation is ideal for critical loads that cannot be disconnect current transformed
  • Can be disassembled or split in to halves
  • Solid core current transformers are cost-effective transformative and less susceptible to damage during installation
  • Solid core current transformers slip over power lines to measure the electrical current flowing through the line

Specifications

Identifiers

Identifiers
Manufacturer Part Number
CDA01-312
GTIN
00078477547151
Identifiers
UPC
078477547151

General Information

General Information
Manufacturer
Leviton
Brand
Leviton®
Country Of Origin
CN
General Information
Standards Approvals
ANSI Specified | ASHRAE 90.1 | CSA C22.2 No. 61010-1 | Title 24 Compliant | UL 916
Application
Commercial, Industrial Facilities, Retail, Street and Stadium Lighting Applications

Dimensions

Dimensions
Dimensions
0.72 in ID x 2.06 in OD x 26 in W x 0.82 in H

Technical Information

Technical Information
Accuracy
0.3 %
Current Ratio
100:0.1
Phase
3
Technical Information
Primary Current
100 A
Secondary Current
0.1 A
Type
Solid Core Sub-Metering
