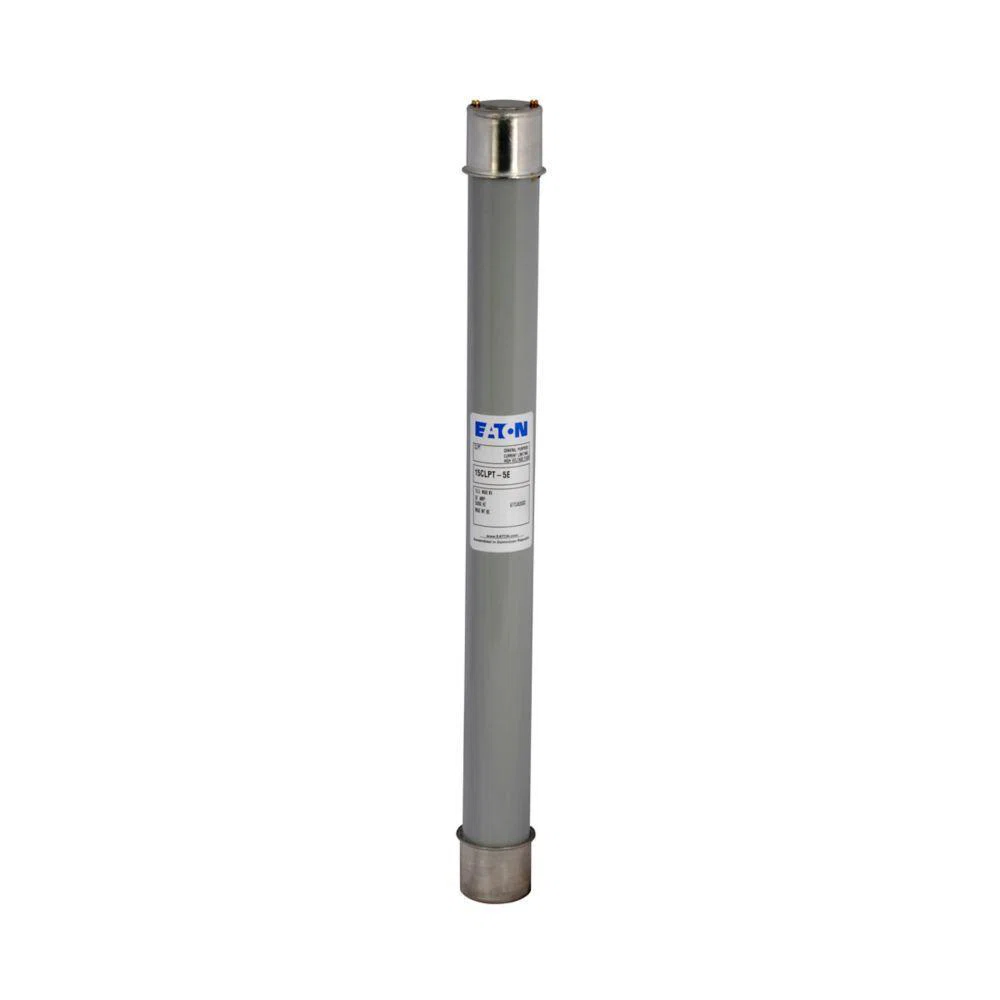

5CLPT-1 Medium Voltage Current Limiting Fuse, 1 A, 5.08/5.5 kV, 80 kA Interrupt, Class: E
- MFR #:
- 5CLPT-1
- UPC:
- 051712528955
- Item #:
- 645814
5CLPT-1 Medium Voltage Current Limiting Fuse, 1 A, 5.08/5.5 kV, 80 kA Interrupt, Class: E
- MFR #:
- 5CLPT-1
- UPC:
- 051712528955
- Item #:
- 645814
Product Details
Our R-Rated, current-limiting medium voltage fuses are backup fuses suitable for indoor and outdoor use in applications where it is necessary to limit short-circuit currents on high capacity systems. They are typically used to protect medium voltage drives and starters.Construction types include ferrule and bolt-on, with special application ferrule and hermetically sealed fuses available for use with motor starters and motor controls, including AMPGARD motor starters. Both fuse mountings and fuse clips are available.All of our R-Rated medium voltage fuses include open fuse indication to speed troubleshooting.
Manuals and Documentation
Features
- Medium voltage fuses are defined by their melting time-current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
- Physically dimensioned for easy installation in existing hardware and provide designers a space saving size for new installations
- Self-contained in a non-venting package, PT fuses may be installed indoors or outdoors in an enclosure
- Current limiting fuses provide positive interruption even on low fault currents
- The fuse limits the magnitude of electromechanical stresses in the protected apparatus
Specifications
Identifiers
| Manufacturer Part Number |
5CLPT-1
|
|---|---|
| GTIN |
00051712528955
|
| UPC |
051712528955
|
|---|
General Information
| Manufacturer |
Eaton
|
|---|---|
| Brand |
Bussmann
|
| Country Of Origin |
DO
|
| Standards Approvals |
Not Applicable,IEEE Std. C37.41,Contact Manufacturer
|
|---|---|
| Application |
Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Control Transformers Applications
|
Technical Information
| Amperage Rating |
1 A
|
|---|---|
| Body Size |
1.6 in Dia x 9.5 in L
|
| Class |
E
|
| Indicating Non Indicating |
Indicating
|
| Interrupt Rating |
80 kA
|
|---|---|
| Series |
CLPT
|
| Voltage Rating |
5.5 kV AC
|
