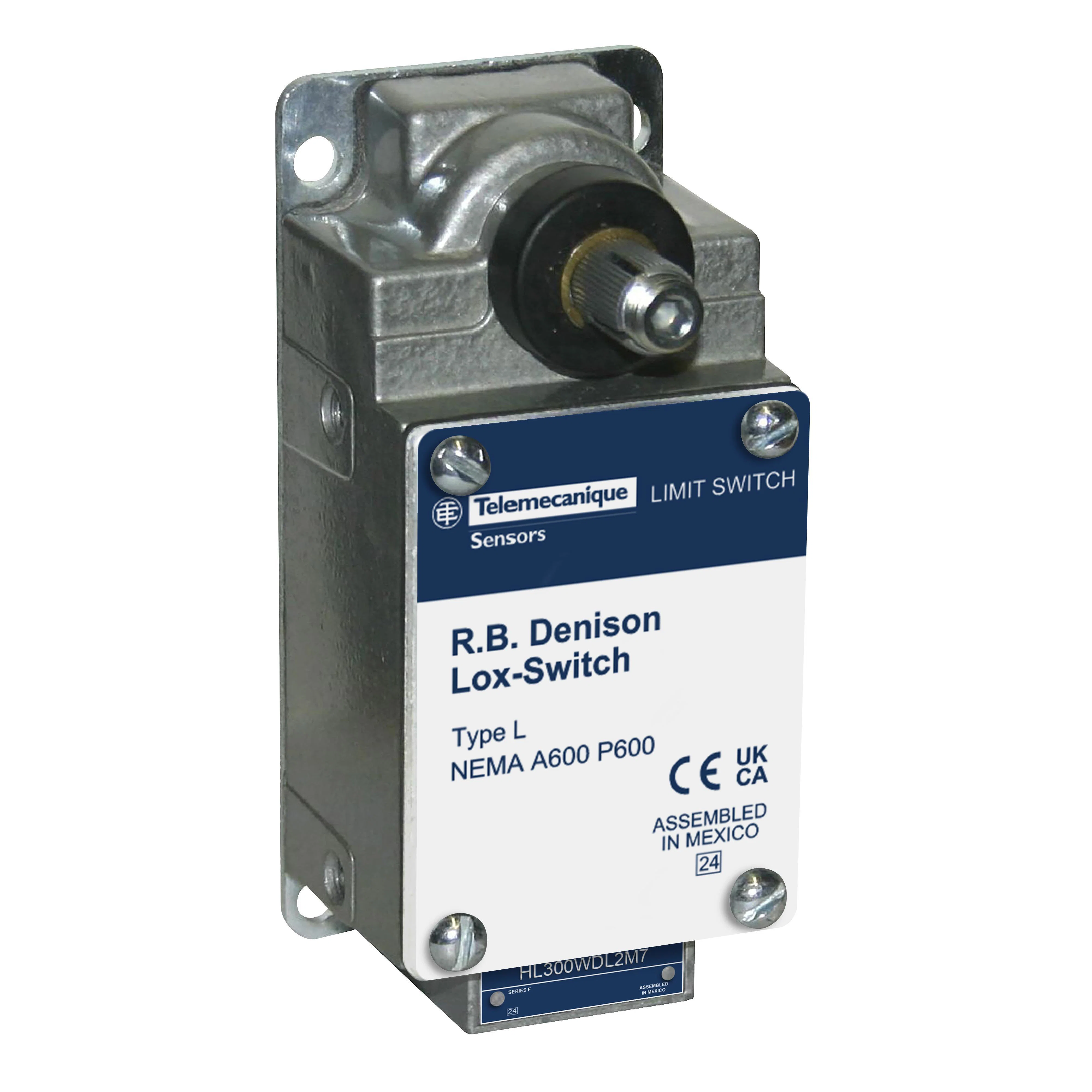

Limit switch, L100/300, 9007,
- MFR:
- Schneider Electric
- MFR #:
- HL300WS2M1
- UPC:
- 785901077442
- Item #:
- 628385
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$666.67
each
LIMIT SWITCH
Manuals and Documentation
Features
- Corrosion-resistant gray paint
- 80 deg maximum displacement angle
- 17 deg tripping angle
- 90/10 AgCdO on Cu backing stationary contacts silver on steel backing moveable contacts
- CW from left switch actuation
- Spring return without operating lever operator
- Lateral approach
- Rotary head
- Conduit entrance (1/2 in NPT) screw clamp
| Manufacturer Part Number | HL300WS2M1 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901077442 |
| EAN | 0785901077442 |
| Country Of Origin | MX |
| Amperage Rating | 20 A |
| Color | Gray |
| Enclosure Type | NEMA 1/2/4/12/13 |
| Material | Aluminum |
| Mounting Type | Panel |
| Series | L300 |
| Type | Fixed Severe Duty |
| Voltage Rating | 600 V AC |
| Size | 4.95 in H x 2.25 in W x 2.03 in D |
| Alternative Part Number | 8008027 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | CE Marked | IEC 60204-1/609475-1 | CENELEC EN 50041/EN 609475-1 | CSA C22.2 No. 14 | UL 508 | EN 60204-1 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov |
| Application | For use with L100/L300 limit switch and foundry applications |
| Action | Rotary/Snap |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC DPDT |
| Number Of Poles | 2 |
| Operating Temperature | 0 to 350 deg F |
