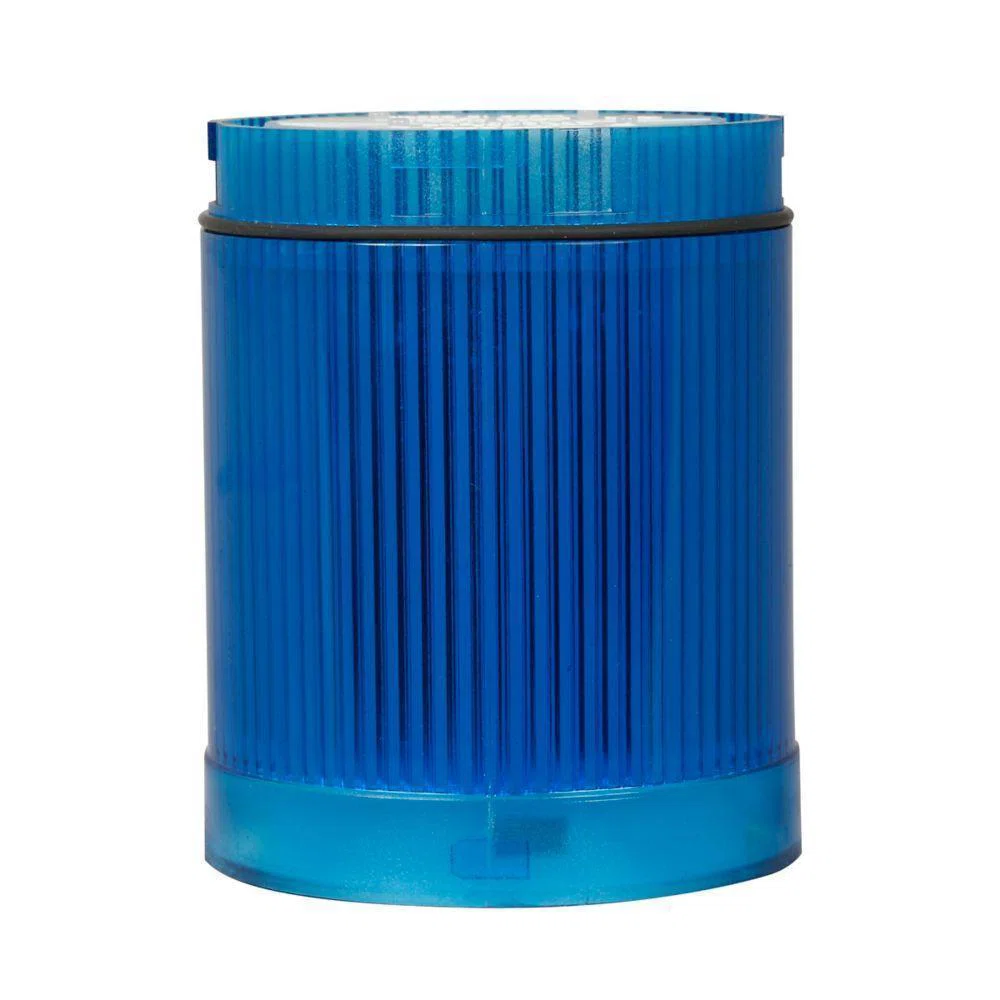

E26B6V4 E26 Standard Stack Light Module, 120 V, Incandescent Lamp, 2.56 in Dia, Surface Mount, Blue
- MFR:
- Eaton
- MFR #:
- E26B6V4
- UPC:
- 782114124512
- Item #:
- 617088
E26B6V4 E26 Standard Stack Light Module, 120 V, Incandescent Lamp, 2.56 in Dia, Surface Mount, Blue
- MFR #:
- E26B6V4
- UPC:
- 782114124512
- Item #:
- 617088
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$150.40
each
Eaton's E26 stacklight is a modular unit system that provides illuminated and audible status indication in all directions New Eaton stacklights are designed to improve control over key process and increase machine availability. The stacklights are engineered to keep you informed about material requirements, downtime and hazards.
Manuals and Documentation
Features
- Light modules include lens diffusers which provide even illumination and eliminate hot spots
- To maximize illumination and light dispersion, incandescent units include an opal white diffuser while LED diffusers are clear
| Manufacturer Part Number | E26B6V4 |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 782114124512 |
| Country Of Origin | BR |
| Amperage Rating | 36 to 50 mA |
| Average Life | 7000 hr |
| Color | Blue |
| Dimensions | 2.56 in L x 2.56 in W x 3.31 in H |
| Lamp Type | Incandescent |
| Material | Polycarbonate |
| Mounting Type | Surface |
| Series | E26 |
| Temperature Rating | -4 to 140 deg F |
| Type | Standard |
| Voltage Rating | 120 V |
| Wattage | 6 W |
| Alternative Part Number | 7374776 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 1 year |
| Standards Approvals | UL 508,CSA Std. C22.2 No. 142,IEC 6113-2,CE Marked |
| Application | Electrical Assemblies, Panels and EOEMs, Stack Light Applications |
| Includes | Lens, Diffuser and Lamp |
| Diameter | 2.56 in |
| Flash Rate | 60 fpm |
| Flash Type | Steady |
| Nema Rating | NEMA 4/4X/13/IP65 |
| Terminal Type | Wire |
