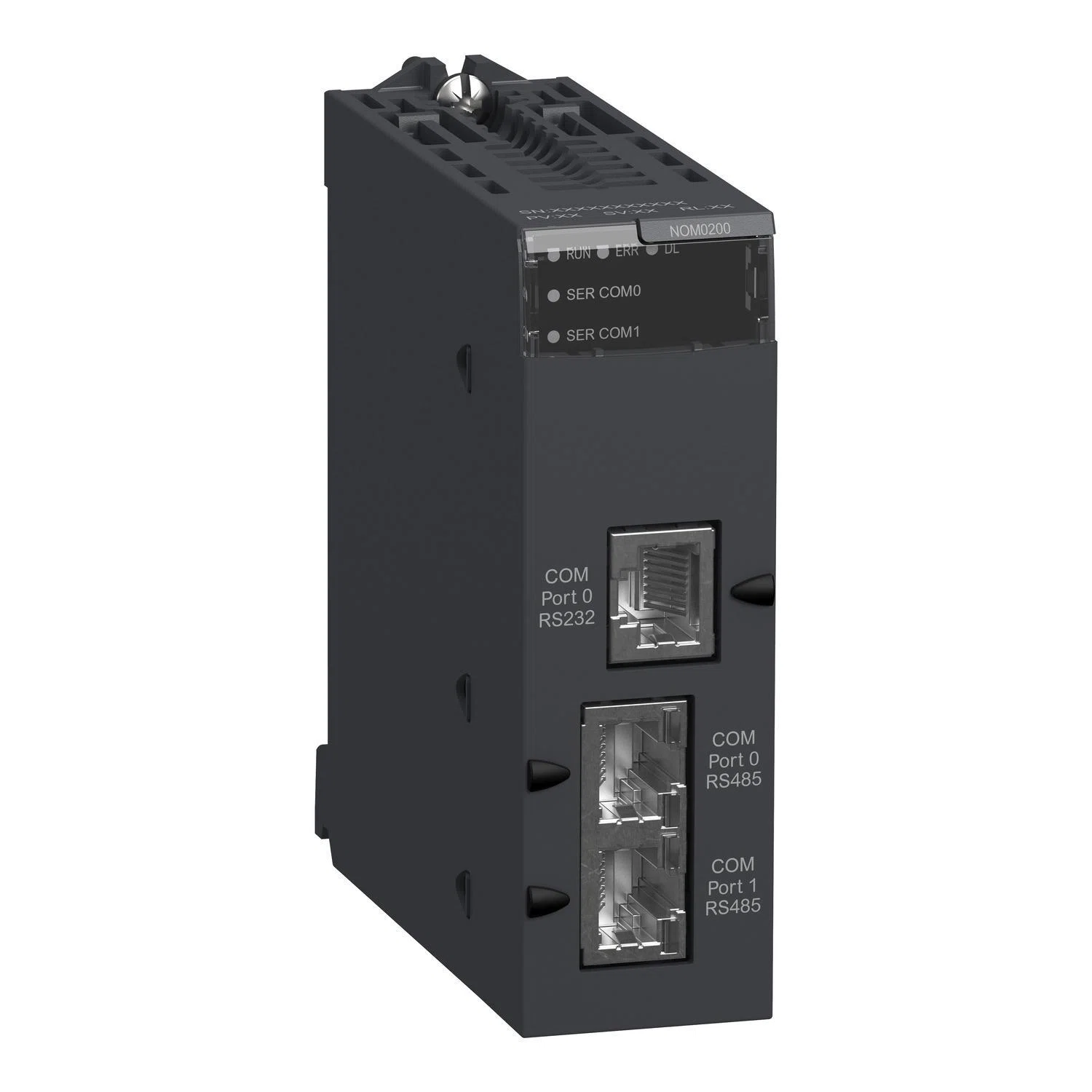

BMXNOM0200 Modicon Standard Format Serial Link Module, 24 V DC, 80 mA

MFR #:
BMXNOM0200
UPC:
785901796107
Item #:
60005
$1,469.66 each
Product Details

This serial link module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This module has 2 RS-485/232 ports in Modbus and character mode. It is an RTU module with a current consumption of 80mA at 24V DC, work with internal power supply. This product is robust, high quality and based on the latest innovative technology. Integrated connections are RS232 RJ45 115.2kbps and RS485 RJ45 57.6kbps. It is an IP20 rated product. It weighs 0.23kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).

Manuals and Documentation

Features

  • M340 serves as a all-in-one CPU
  • Plug-and-work solution
  • Reduced startup time
  • Increased network reliability and maintainability
  • Reduced total cost of ownership

Specifications

Identifiers

Identifiers
Manufacturer Part Number
BMXNOM0200
GTIN
03595864024431
Identifiers
UPC
785901796107
EAN
3595864024431

General Information

General Information
Manufacturer
Schneider Electric
Brand
Schneider Electric
Country Of Origin
US
General Information
Warranty
18 Months
Standards Approvals
RoHS Compliant | CE Certified | CSA C22.2 File No. 142/213 Class I Division 2 | cUL Listed | EN/IEC 61131-2 | UL 508 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Dimensions

Dimensions
Dimensions
15.8 in L x 11.8 in W x 5.8 in H

Technical Information

Technical Information
Amperage Rating
80 mA
Temperature Rating
0 to 60 deg C
Technical Information
Type
Standard Format
Voltage Rating
24 V DC
