Square D™ Schneider Electric

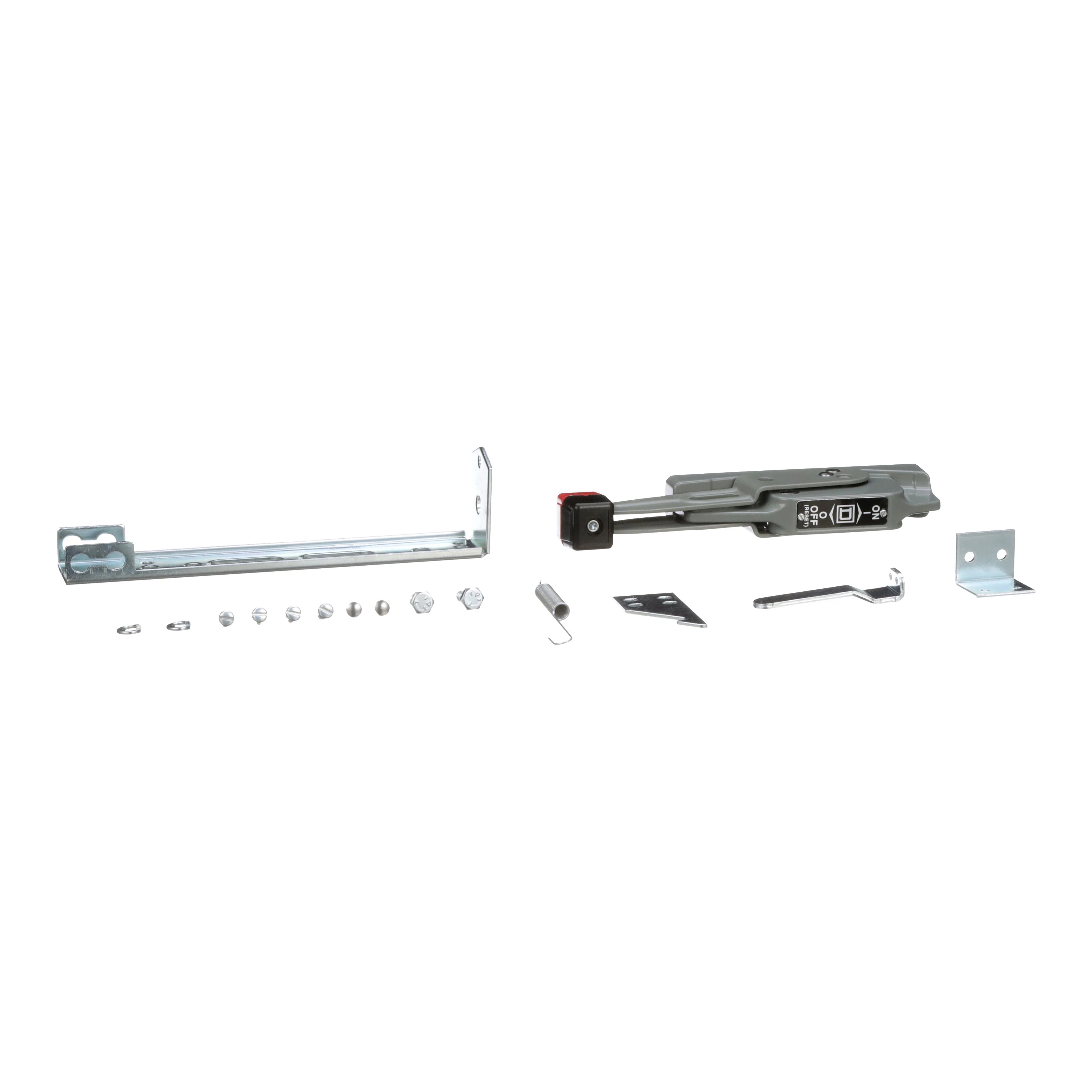

9422AP2 Operating Mechanism Handle, 6 in L

MFR #:
9422AP2
UPC:
785901958635
Item #:
581124
$515.64 each
Product Details

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 4/4X. This handle is for use with 9422RM1, 9422CMP, and PowerPacT M and P operating mechanisms. This product complies with UL standards.

Manuals and Documentation

Features

  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations

Specifications

Identifiers

Identifiers
Manufacturer Part Number
9422AP2
GTIN
00785901958635
Identifiers
UPC
785901958635
EAN
0785901958635

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square Dâ„¢
Country Of Origin
MX
General Information
Standards Approvals
eccn: EAR99 | PROP65:This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application
9422RM1 circuit breaker mechanism, 9422RM1 circuit breaker mechanism, 9422CMP circuit breaker mechanism

Dimensions

Dimensions
Length
6 in

Technical Information

Technical Information
Series
9422A
