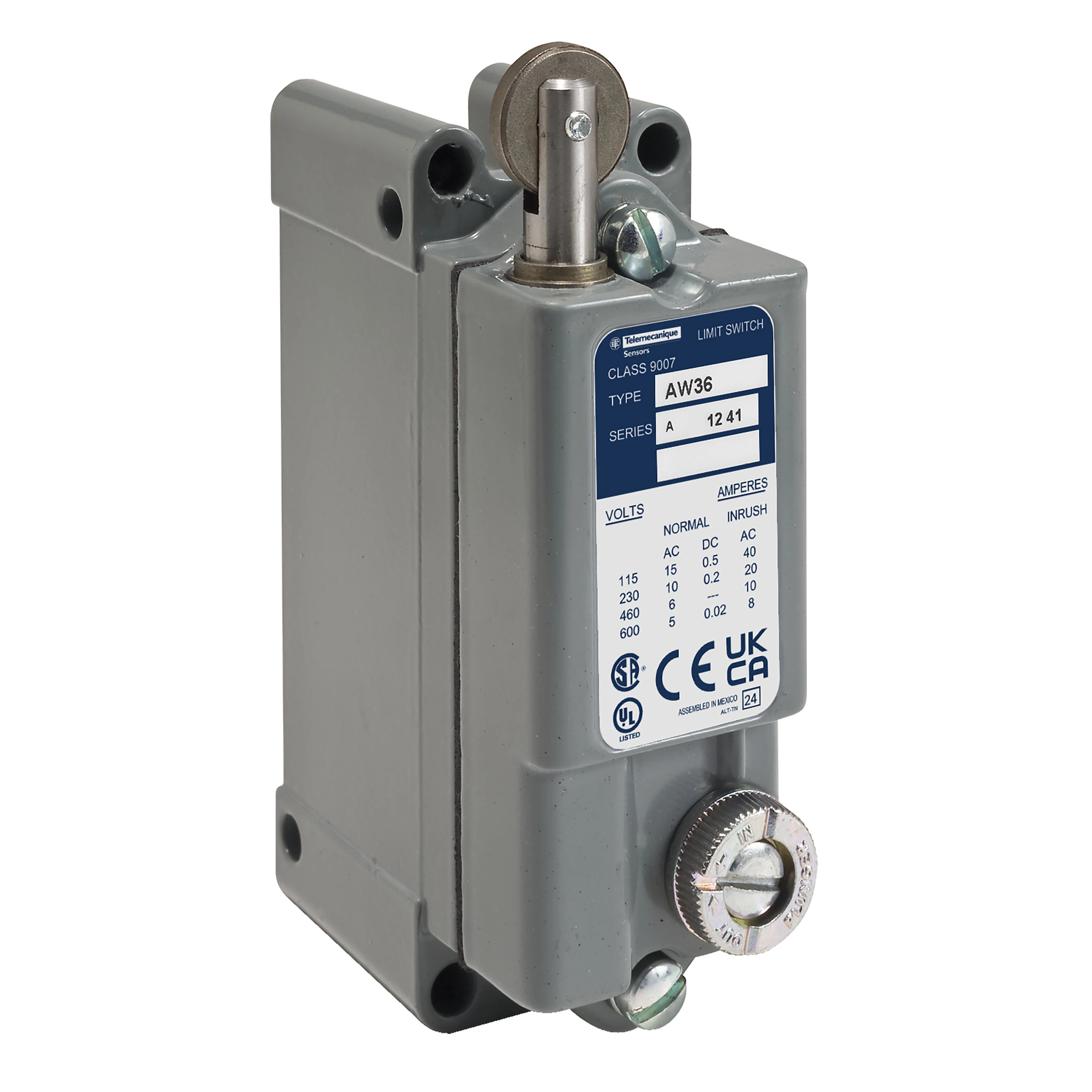

Square D™ Plunger Actuated Limit Switch, Fixed Heavy Duty, Series: 9007, 600 V AC, 10 A, 2NO-2NC DPDT-DB Contact Configuration, 2 Pole, Linear/Snap Action, Spring Return Roller Horizontal Plunger Actuator, Screw Clamp Connection, NEMA 1/2/4/12/13/IP65 Enclosure, Front/Rear Mounting, 3.68 in H x 2.53 in W x 1.44 in D Size, 0 to 185 deg F Operating, Cast Zinc, Epoxy Powder Coated
Manuals and Documentation
Features
- 2-direction traverse approach
- 3 in-lb minimum force for tripping
- Fixed body
- AW +options limit switch
- Linear movement of operating head
- Form ZZ, snap action silver contacts
- Screw clamp terminal (22 to 12 AWG) electrical connection
- Conduit entrance (1/2 in NPT) screw clamp
- Spring Return Roller Horizontal Plunger
Specifications
Identifiers
| Manufacturer Part Number |
9007AW38
|
|---|---|
| GTIN |
00785901830221
|
| UPC |
785901830221
|
|---|---|
| EAN |
0785901830221
|
General Information
| Manufacturer |
Schneider Electric
|
|---|---|
| Brand |
Square D™
|
| Country Of Origin |
MX
|
| Warranty |
18 months
|
|---|---|
| Standards Approvals |
PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
|
| Application |
For use with 9007AW limit switch
|
Dimensions
| Size |
3.68 in H x 2.53 in W x 1.44 in D
|
|---|
Technical Information
| Action |
Linear/Snap
|
|---|---|
| Actuator |
Roller Plunger
|
| Amperage Rating |
10 A
|
| Connection Type |
Screw Clamp
|
| Contact Configuration |
2NO-2NC DPDT-DB
|
| Enclosure Type |
NEMA 1/2/4/12/13/IP65
|
| Finish |
Epoxy Powder Coated
|
| Material |
Cast Zinc
|
|---|---|
| Mounting Type |
Front/Rear
|
| Number Of Poles |
2
|
| Operating Temperature |
0 to 185 deg F
|
| Series |
9007
|
| Type |
Fixed Heavy Duty
|
| Voltage Rating |
600 V AC
|
