Square D™ Schneider Electric

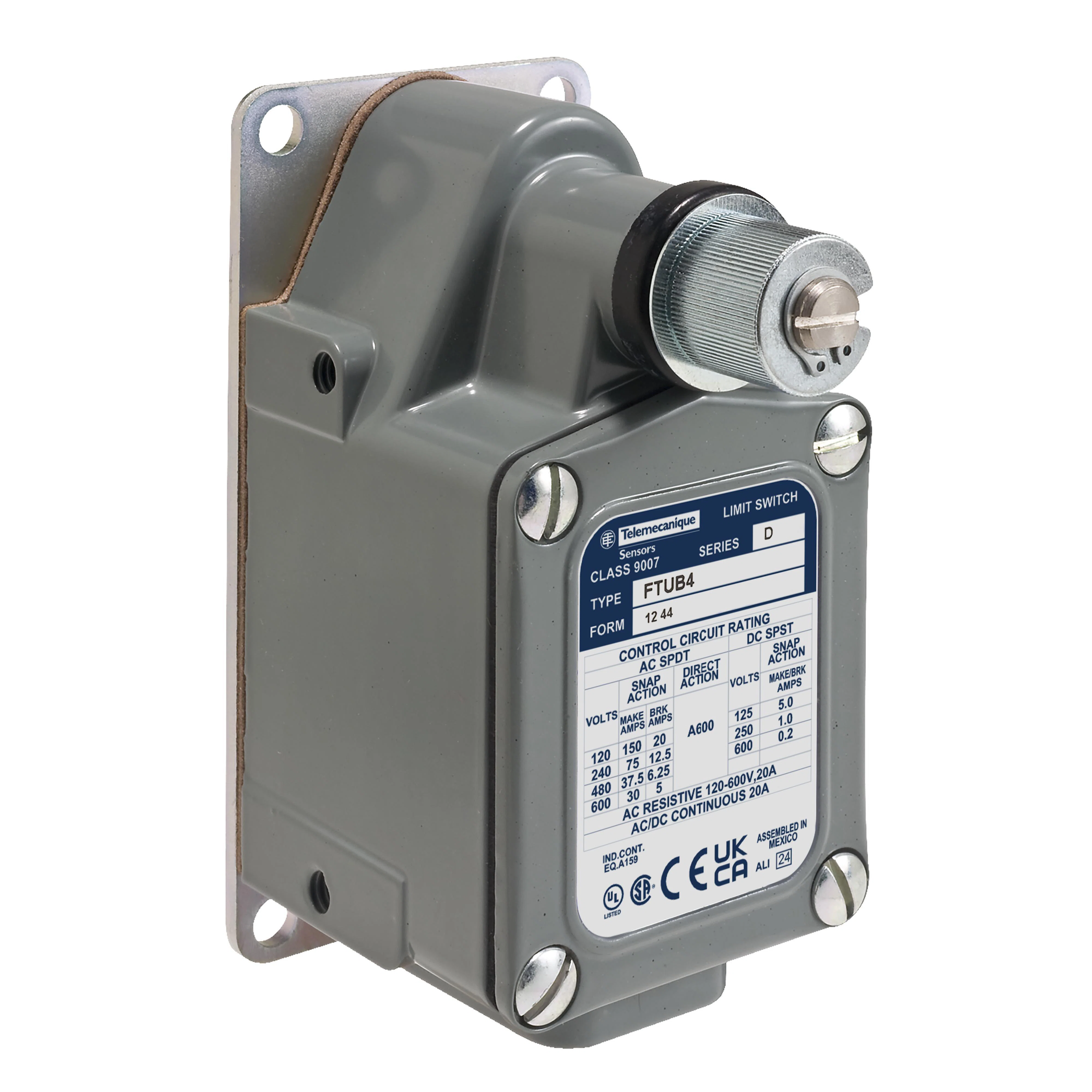

Limit switch, 9007, 9007FT foundry standard, spring return, CW+CCW, 1/2" NPT

MFR #:
9007FTSB2
UPC:
785901119333
Item #:
530344
$1,355.45 each
Product Details

Beyond the limits a big selection of little switches! our line of compact limit switches includes compact switches for general, medium and heavy duty applications, and each is available with a variety of contact configurations, operating heads and lever arms. There are even versions for safety applications, automated applications and environments with a high incidence of shock and vibration. Our miniature and compact switches meet the International Electrotechnical Commission (IEC) standards and are accepted globally. In addition, our compact line meets domestic and international standards, including NEMA, UL, CSA, VDE and more.

Manuals and Documentation

Features

  • Rugged - 9007 type T/FT switches have extended operating and reset forces and heavy duty contacts that will break 20 A at 120 VAC
  • They also feature an ambient temperature range of up to 220 deg F and a die-cast zinc lever arm with hardened oil-impregnated sintered iron rollers
  • Flexible - with 15 different contact operating sequences, the 9007 type T/FT may be field converted to ensure responsive delivery of required sequences
  • The 9007 FT limit switch has a modified housing and an extra long shaft bearing that makes these switches extremely rugged and suitable for foundry applications
  • They are designed to prevent lever arm jamming due to sand build-up and can withstand falling sand up to 300 deg F
  • Rotary head
  • Spring Return Without Operating Lever

Specifications

Identifiers

Identifiers
Manufacturer Part Number
9007FTSB2
GTIN
03389119056977
Identifiers
UPC
785901119333
EAN
3389119056977

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square Dâ„¢
Country Of Origin
MX
General Information
Warranty
18 months
Standards Approvals
IEC 61140 | IEC 60529 | REACH Compliant | IEC 60068-2-6 | IEC 60068-2-27 | NEMA 2 | NEMA 4 | NEMA 12 | NEMA 13 | PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Application
Mill and Foundry - Iron and Steel, Cement and Glass

Dimensions

Dimensions
Size
57.15 mm W x 86.61 mm D x 118.36 mm H

Technical Information

Technical Information
Action
Snap
Amperage Rating
20 A
Closed Contact Resistance
25 MOhm
Connection Type
12 to 22 AWG Screw Clamp Terminal
Contact Configuration
1NO-1NC
Enclosure Type
NEMA 1/2/4/12/13/IP67
Environmental Conditions
-23 to 85 deg C Storage
Technical Information
Material
Cast Zinc
Number Of Poles
1
Operating Temperature
-23 to 85 deg C
Series
9007FT
Type
Severe Duty Foundry 2-Stage Fixed
Voltage Rating
600 V AC
