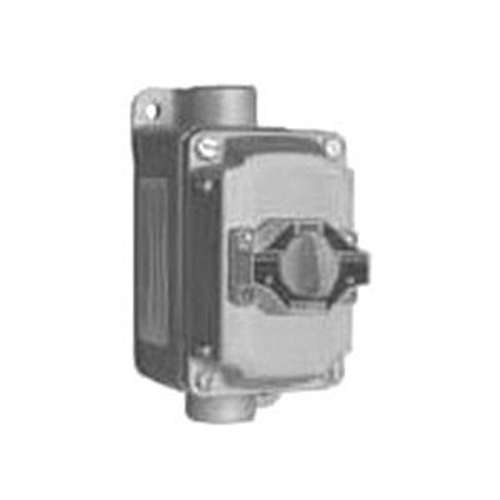

Explosion-Proof Feed-Through Selector Switch Control Station, 3/4 inch, Malleable Iron, 600 VAC
MFR: Appleton Electric
MFR #: EFDCB175102
UPC: 781381700917
Item #: 51824
Explosion-Proof Feed-Through Selector Switch Control Station, 3/4 inch, Malleable Iron, 600 VAC
MFR #: EFDCB175102
UPC: 781381700917
Item #: 51824
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$728.74
each
Appleton Contender EFDCB Series 1-Gang 2 Circuit Selector Switch, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Operation: Maintained, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups B , C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Manuals and Documentation
- Catalog Number
- EFDCB175102
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- Contender
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
- Enclosure
- NEMA 3, 7CD, 9EFG
- Mounting
- Surface
- Special Features
- Maintained Contact; Explosionproof, dust-ignitionproof; Furnished with Internal Ground Screw; EFDB Selector Switches - Eliminate need for adding sealing fittings and compound at each conduit entrance; Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long, trouble-free operation; Provide Circuit Control And/Or Selection; EFD/EFDB and EDS factory sealed control stations confine arcing of device within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment
- Standard
- UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
- UPC
- 781381700917
- GTIN
- 00781381700917
- Item Type
- EFDCB Series 1-Gang 2 Circuit Selector Switch
