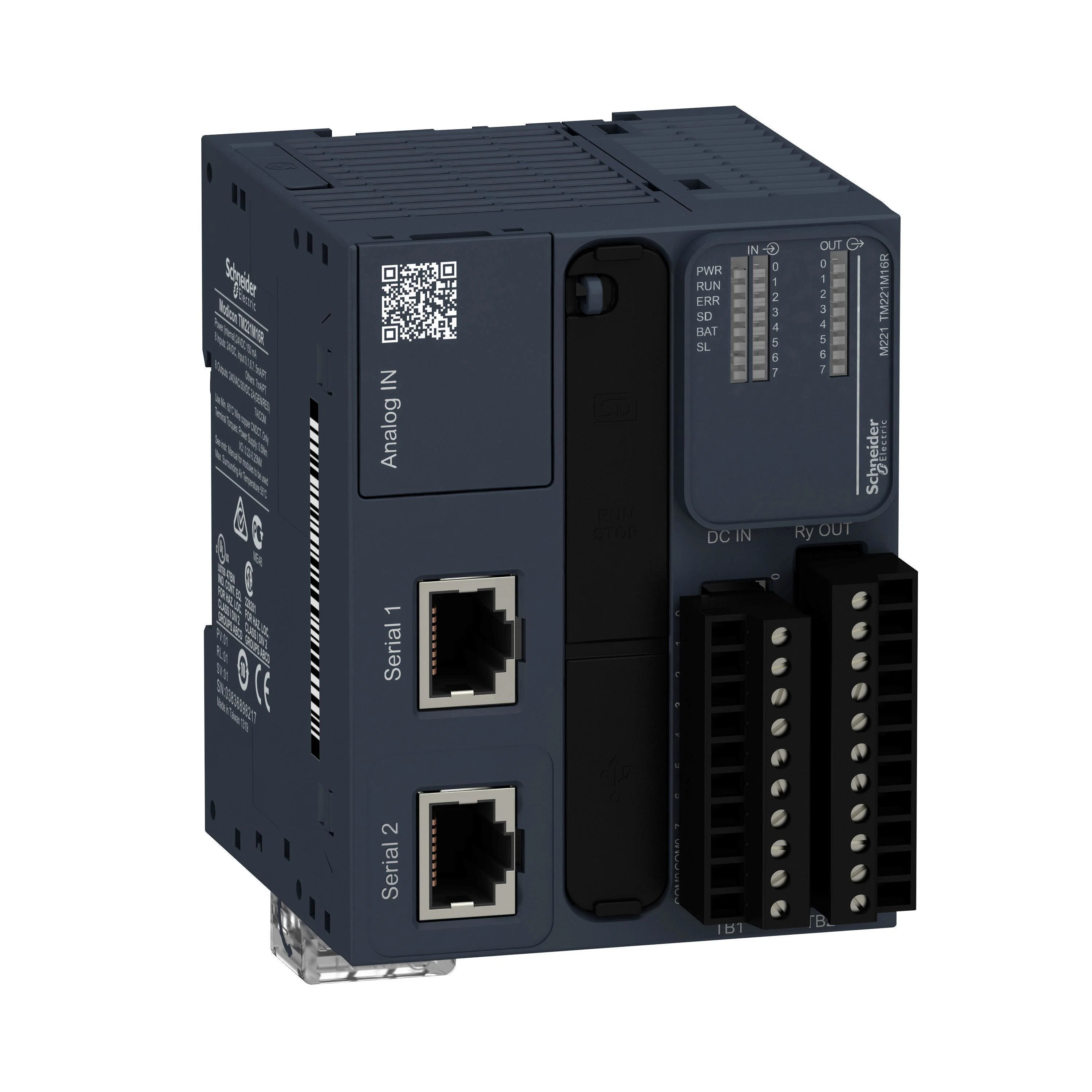

TM221M16R Modicon Logic Controller With Realtime Clock, 24 V DC, 7 mA Discrete Input/5 mA Fast Input, 8 Discrete/2 Analog Inputs, 8 Relay Outputs
- MFR:
- Schneider Electric
- MFR #:
- TM221M16R
- UPC:
- 785901306092
- Item #:
- 499628
TM221M16R Modicon Logic Controller With Realtime Clock, 24 V DC, 7 mA Discrete Input/5 mA Fast Input, 8 Discrete/2 Analog Inputs, 8 Relay Outputs
- MFR #:
- TM221M16R
- UPC:
- 785901306092
- Item #:
- 499628
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$572.71
each
Schneider Electric Square D™ Modicon™ Logic Controller, Series: M221, 24 V DC, 7 mA Discrete Input/5 mA Fast Input, 22.5 W at 24 V With Max Number of I/O Expansion Module/3.6 W at 24 V Without I/O Expansion Module Power, 8 Discrete/2 Analog Inputs, 8 Relay Outputs, Modbus Slave/Modbus Master Communication, Memory: 256 kB, DIN Rail/Surface Mounting, -10 to 55 deg C Horizontal/-10 to 35 deg C Vertical, 70 mm L x 70 mm W x 90 mm H Dimensions
Manuals and Documentation
Features
- SD card and USB port
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
| Manufacturer Part Number | TM221M16R |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901306092 |
| EAN | 3606480611254 |
| Country Of Origin | TW |
| Amperage Rating | 7 mA Discrete Input/5 mA Fast Input |
| Dimensions | 70 mm L x 70 mm W x 90 mm H |
| Mounting Type | DIN Rail/Surface |
| Series | M221 |
| Temperature Rating | -10 to 55 deg C Horizontal/-10 to 35 deg C Vertical |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 13747610 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | REACH Compliant | RoHS Compliant | Green Premium™ | PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For Modicon™ M221 controller, ordinary and hazardous location |
| Communication | Modbus Slave/Modbus Master |
| Memory | 256 kB |
| Number Of Inputs | 8 Discrete/2 Analog |
| Number Of Outputs | 8 Relay |
| Power Rating | 22.5 W at 24 V With Max Number of I/O Expansion Module/3.6 W at 24 V Without I/O Expansion Module |
