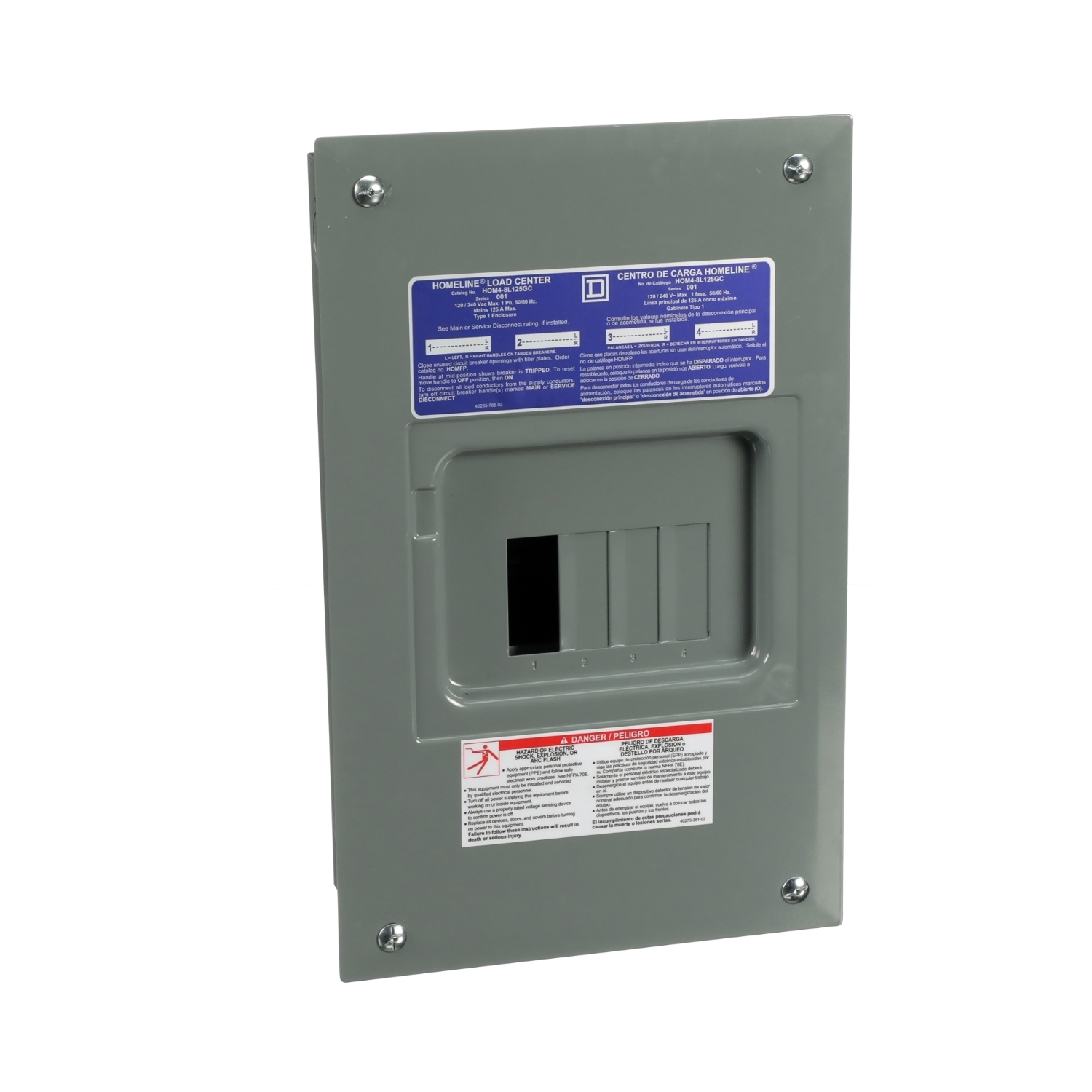

HOM48L125GC Homeline Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover
HOM48L125GC Homeline Load center, Homeline, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, combo cover
| Location | Available Qty |
|---|---|
| Available | Available to Order |

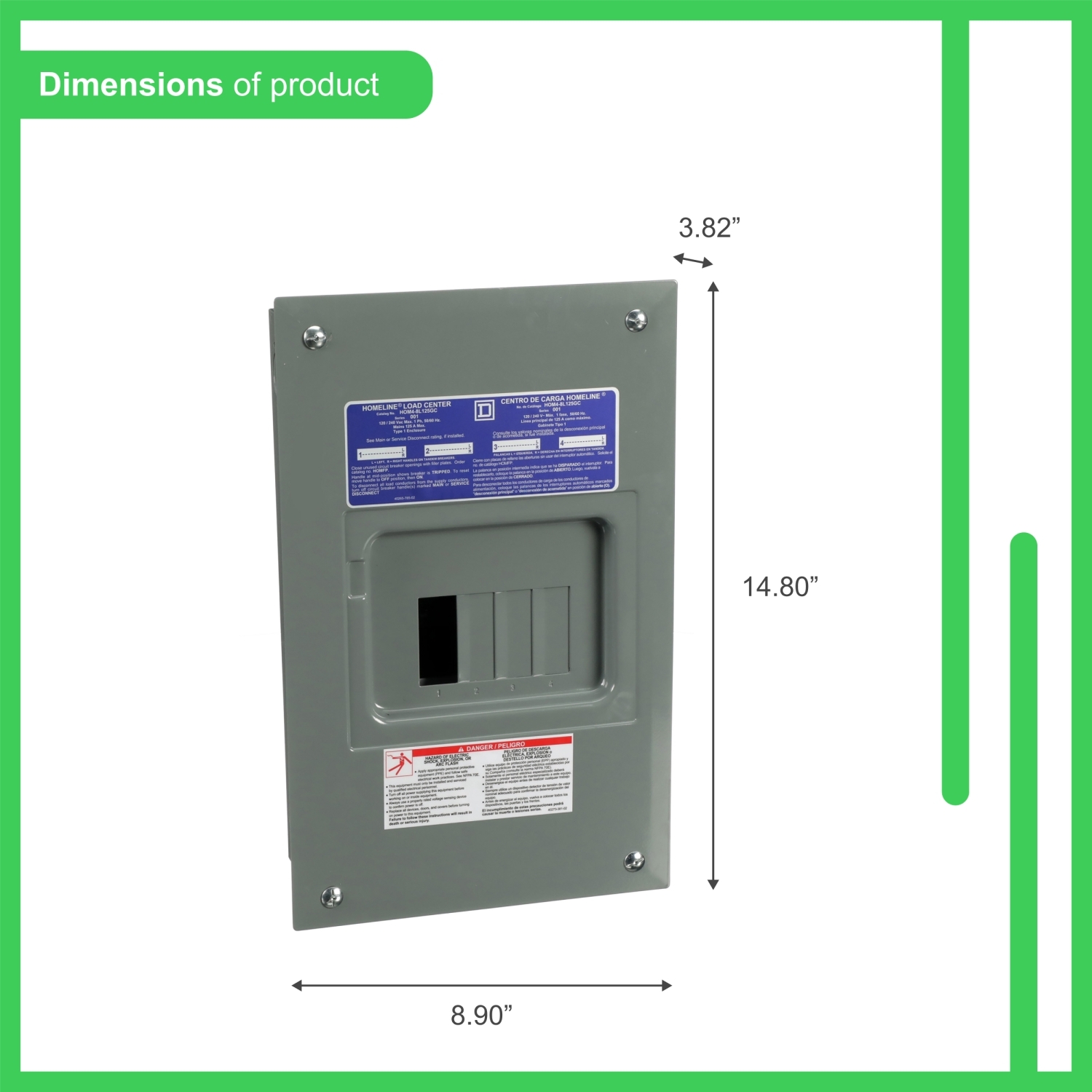

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 2/0 copper or 12 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. This Homeline load center has a height of 14.80 inches, a width of 8.89 inches, and depth of 3.81 inches. Homeline load centers are UL Listed.
Manuals and Documentation
- Catalog Number
- HOM48L125GC
- Manufacturer
- Schneider Electric
- Brand
- SQUARE D
- Warranty Description
- Contractual Warranty:Lifetime
- Country of Origin
- Mexico
- Made in USA
- No
- Cable Size
- AWG 14...AWG 2/0 copper;AWG 12...AWG 2/0 aluminium;AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
- Cover Type
- Combination flush/surface cover
- Enclosure
- Baked enamel Gray;Welded sheet steel;21
- Phase
- 1
- Special Features
- Tin plated aluminium: busbar
- UPC
- 785901484363
- GTIN
- 00785901484363
- Item Type
- Load Center
