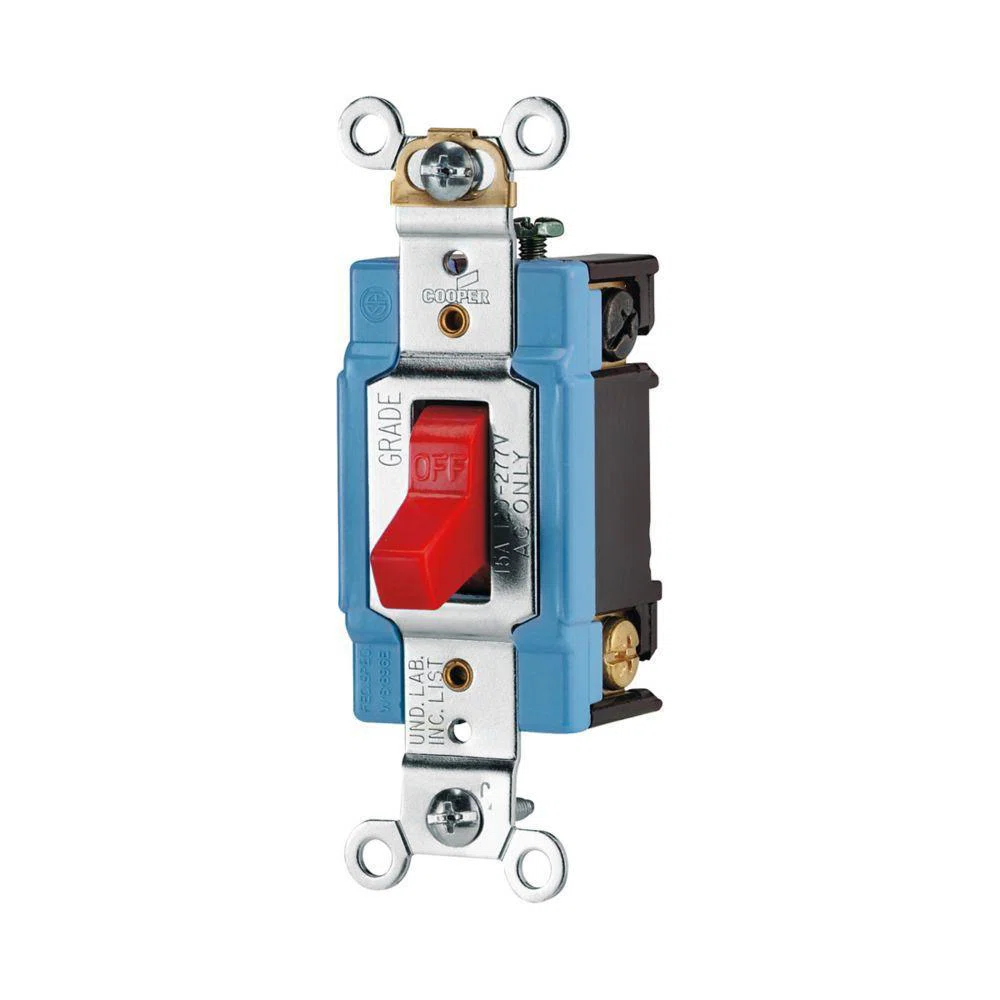

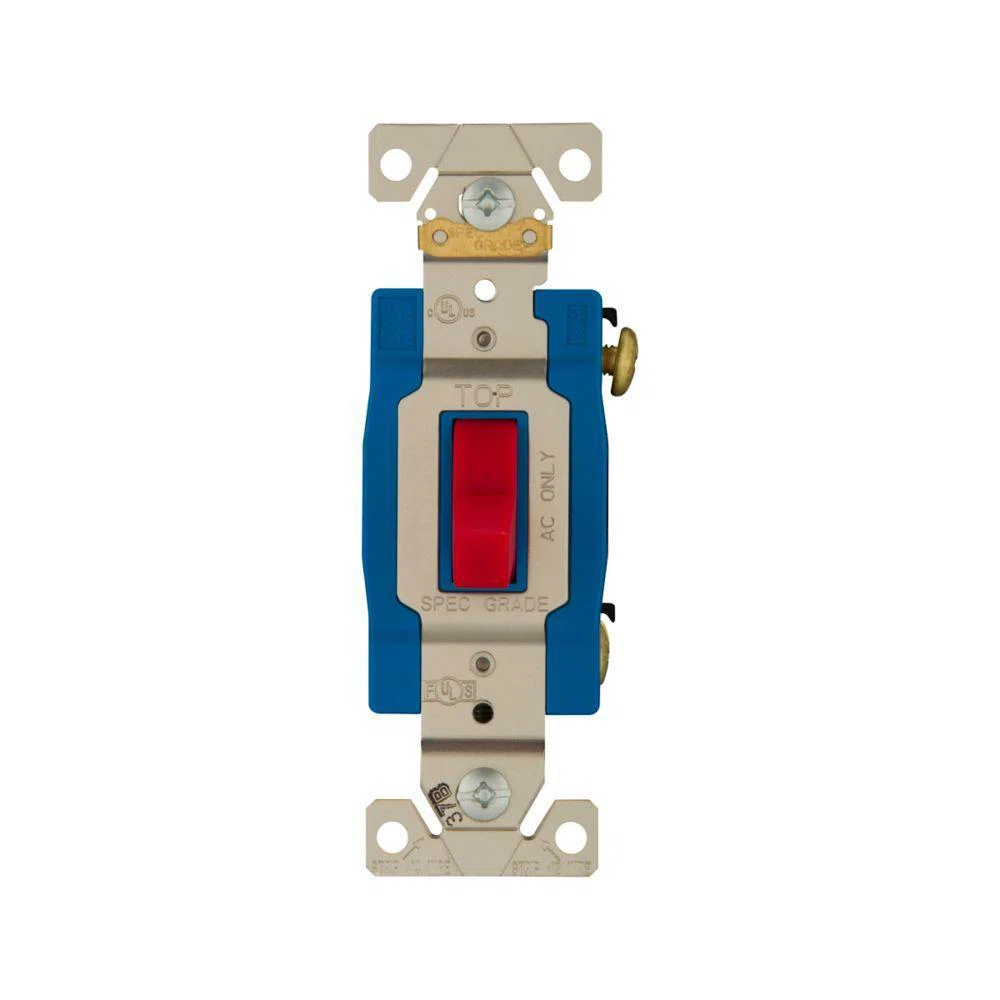

AH1201RD Arrow Hart AH1200 Automatic Grounding Premium Specification Grade Toggle Switch, 120/277 V AC, 15 A, 1/2 hp Power Rating

MFR #:
AH1201RD
UPC:
032664734359
Item #:
477850
$19.03 each
Product Details

Eaton's Arrow Hart broad line of extra heavy-duty industrial grade switches feature superior engineering, reliable performance and ease of installation. Available in toggle, lighted, pilot light, Corbin and locking versions.

Manuals and Documentation

Features

  • 14 to 10 AWG terminal accommodation
  • 2.4 in L screw to screw
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC

Specifications

Identifiers

Identifiers
Manufacturer Part Number
AH1201RD
GTIN
00032664734359
Identifiers
UPC
032664734359

General Information

General Information
Manufacturer
Eaton
Brand
EATON
Country Of Origin
CN
General Information
Standards Approvals
cULus Listed,NAFTA
Application
Industrial Applications

Dimensions

Dimensions
Dimensions
3.28 in H x 1.31 in W x 1.05 in D

Technical Information

Technical Information
Actuator
Toggle
Amperage Rating
15 A
Color
Red
Environmental Conditions
-4 to 140 deg F Operating Temperature
Material
Polycarbonate
Mounting
Wall
Number Of Poles
1
Technical Information
Operating Cycles
30000 Cycles
Power Rating
1/2
Series
AH1200
Terminal Type
Screw
Type
Automatic Grounding Premium Specification Grade
Voltage Rating
120/277 V AC
