nVent CADDY nVent

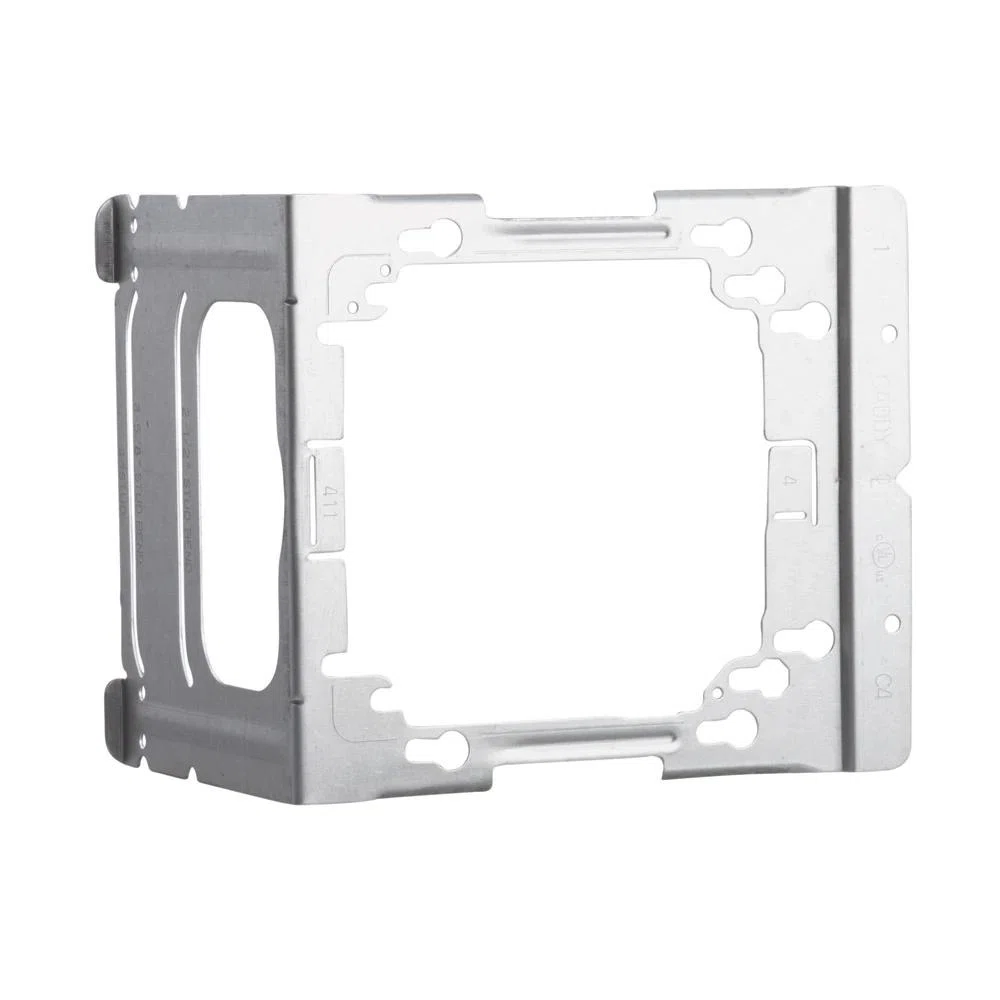

Electrical box bracket to stud, 2 1/2", 3 5/8", 4" wall depth, 3.89"

MFR #:
C4
UPC:
782856864264
Item #:
474988
$10.2756 each
Product Details

nVent CADDY Electrical Box Bracket, Series: C Series, 4 in, 4-11/16 in Box, Stud Mount, For Use With: Electrical Box, 2-1/2 in, 3-5/8 in, 4 in Stud Wall, Steel, Pre-Galvanized, 5.75 in W x 3.89 in D x 5 in H

Manuals and Documentation

Features

  • Improved keyhole pattern to make mounting of 4 11/16 in boxes easier
  • Box lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
  • Designed with thicker steel to significantly increase rigidity and help prevent box movement and trim out issues
  • Unique "step in" feature at the top and bottom of the bracket to easily access the set screws
  • Works with both standard and adjustable single and double gang mud rings
  • Additional bend points on C4 and C6 brackets for greater versatility

Specifications

Identifiers

Identifiers
Manufacturer Part Number
C4
Identifiers
UPC
782856864264

General Information

General Information
Manufacturer
nVent
Brand
nVent CADDY
Country Of Origin
US
General Information
Standards Approvals
BABA Compliant | UL Recognized | cUL Recognized | cULus Listed | cUL QCRV7.E165702 | CAN/CSA C22.2 No. 18.1-04 | UL QCRV.E165702 | ANSI/UL 514A | RoHS Compliant
Application
Electrical Fixing and Fastening Applications

Dimensions

Dimensions
Dimensions
5.75 in W x 3.89 in D x 5 in H

Technical Information

Technical Information
Box Size
4 in, 4-11/16 in
Finish
Pre-Galvanized
Material
Steel
Mounting Type
Stud
Technical Information
Series
C Series
Specifications
2-1/2 in, 3-5/8 in, 4 in Stud Wall
Suitable For Use With
Electrical Box
