Panduit®
Panduit

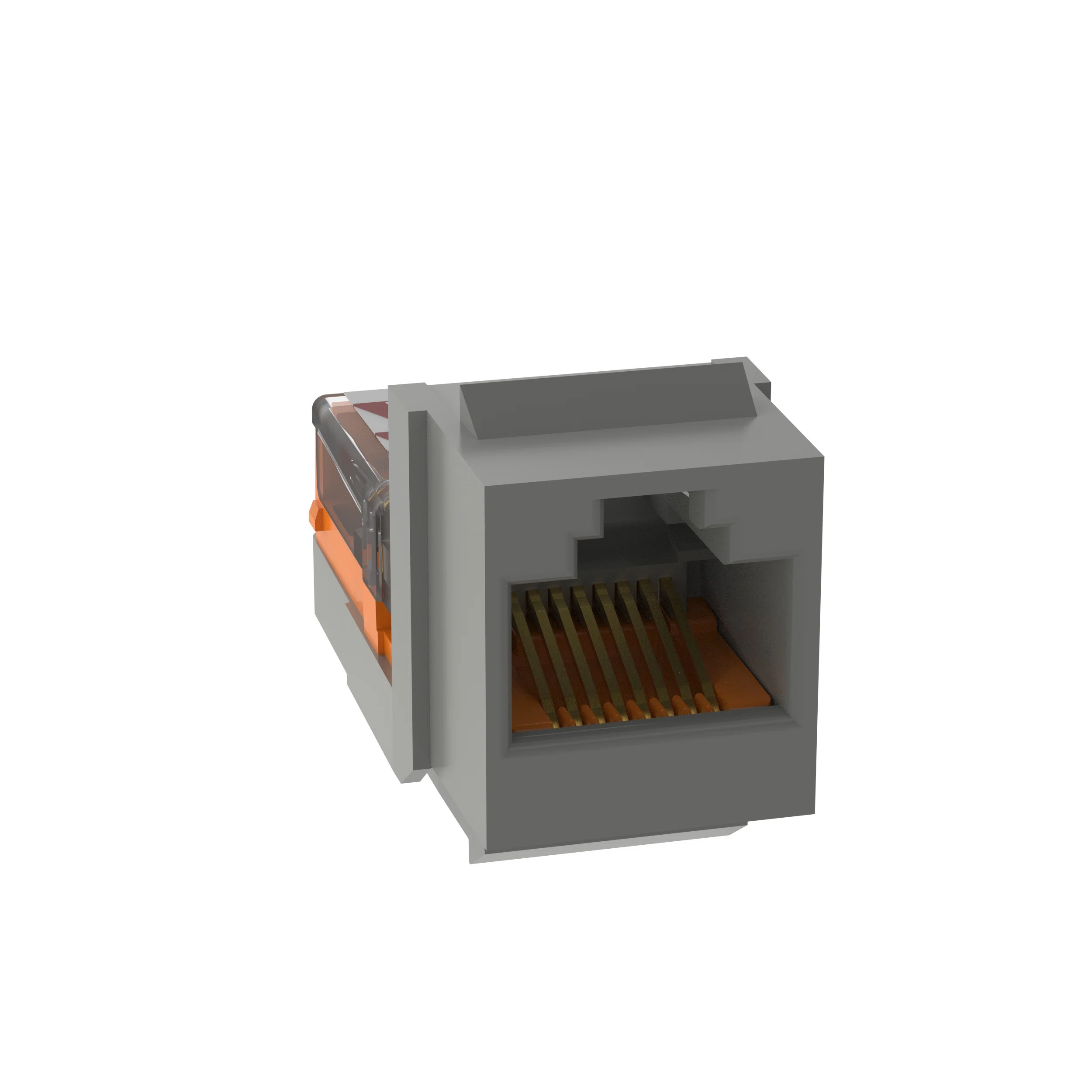

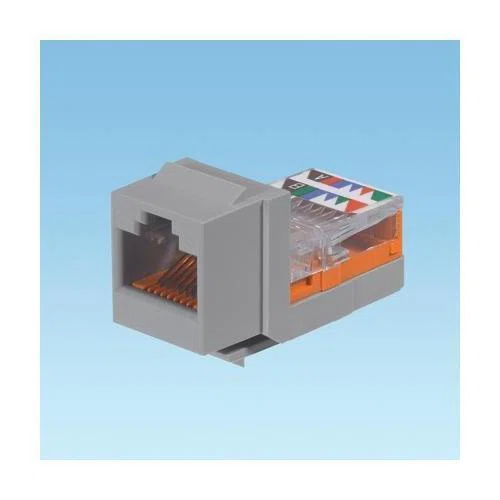

NK5E88MIGY NetKey 8-Position 8-Wire Lead Frame Universal Unshielded Keystone Jack Module, Cat 5e/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray
- MFR #:
- NK5E88MIGY
- UPC:
- 074983055012
- Item #:
- 455184
Panduit®
Panduit
NK5E88MIGY NetKey 8-Position 8-Wire Lead Frame Universal Unshielded Keystone Jack Module, Cat 5e/Keystone Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray
- MFR #:
- NK5E88MIGY
- UPC:
- 074983055012
- Item #:
- 455184
$8.68
each
Product Details
Cat 5e/Class D, 8-position keystone UTP jack module shall terminate unshielded twisted 4-pair, 24 to 22 AWG, 100 Ohm cable without the use of a punchdown tool. Optional tool ensures conductors are fully terminated. Universal label is color coded T568A and T568B wiring schemes.
Manuals and Documentation
Features
- Confidence that each jack module delivers specified performance
- Termination cap provides strain relief, helps control cable bend radius and securely retains wires in place
- Universal keystone jack module snap-in and out of all Net Key® faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
- Marked with quality control number for future traceability
- Eliminating the time to open each individual package and reducing on site waste, ideal for high volume installations
- 100% performance tested
- Termination cap provides strain relief, helps control cable bend radius and securely retains wires in place
- Modular universal keystone jack modules snap-in and out of all NetKey™ faceplates, modular patch panels and surface mount boxes for fast moves, adds and changes
- Individually serialized marked with quality control number for future traceability
Specifications
Identifiers
| Manufacturer Part Number |
NK5E88MIGY
|
|---|---|
| GTIN |
00074983055012
|
| UPC |
074983055012
|
|---|---|
| EAN |
0074983055012
|
General Information
| Manufacturer |
Panduit
|
|---|---|
| Brand |
Panduit®
|
| Country Of Origin |
CN
|
| Standards Approvals |
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS C | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-568-C.2 | ISO 11801 2nd Edition Class D | IEC 60603-7 | IEEE 802.3af and IEEE 802.3at | UL 1863 | CSA Approved
|
|---|---|
| Application |
10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16 and Voice Over Internet Protocol
|
Dimensions
| Dimensions |
0.65 in W x 1.37 in D x 0.874 in H
|
|---|
Technical Information
| Color |
International Gray
|
|---|---|
| Material |
ABS/Polycarbonate
|
| Module Type |
Cat 5e/Keystone
|
| Mounting Type |
Surface
|
|---|---|
| Number Of Ports |
1
|
| Type |
8-Position 8-Wire Lead Frame Universal Unshielded
|
