Panduit®
Panduit

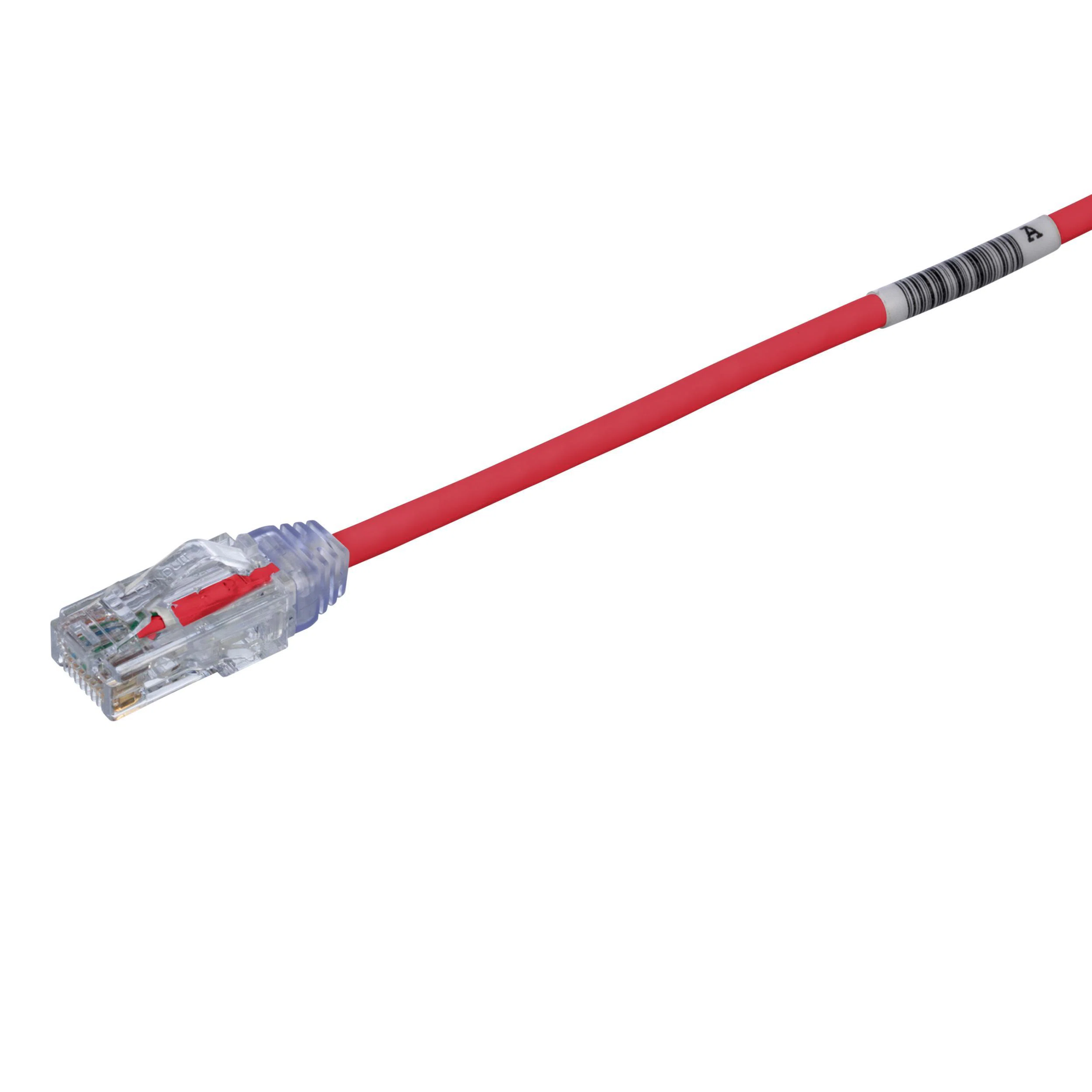

UTP28SP20RD TX6-28 CM/LSZH Small Diameter UTP Patch Cord, Cat 6/Class E, 28 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 20 ft L Cord, Red
- MFR #:
- UTP28SP20RD
- UPC:
- 074983655311
- Item #:
- 431771
Panduit®
Panduit
UTP28SP20RD TX6-28 CM/LSZH Small Diameter UTP Patch Cord, Cat 6/Class E, 28 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 20 ft L Cord, Red
- MFR #:
- UTP28SP20RD
- UPC:
- 074983655311
- Item #:
- 431771
$34.05
each
Product Details
Category 6/Class , UTP, small diameter patch constructed 28 AWG, unshielded, twisted , stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch offered multiple colors for design flexibility.
Manuals and Documentation
Features
- Smaller diameter flexible cable design
- 100% performance tested for wire map, next and return loss
- Integral pair manager
- Patented tangle free latch
- Flexible stranded cable
- Identification label
- Robust construction
- Meets individual length and color coding requirements for greater system flexibility
- Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords
- Smaller diameter and flexible cable design
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle free latch
- Flexible stranded cable
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction
Specifications
Identifiers
| Manufacturer Part Number |
UTP28SP20RD
|
|---|---|
| GTIN |
00074983655311
|
| UPC |
074983655311
|
|---|
General Information
| Manufacturer |
Panduit
|
|---|---|
| Brand |
Panduit®
|
| Standards Approvals |
Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802 | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ISO 11801 Class E Edition 2.1 | IEC 60603-7 | IEEE 802.3af, 802.3at, 802.3bt Type 3, Type 4 for PoE Compliant | cULus Listed | UL 1863 | cCSA C22.2 | UL File No. E129886 | UL 94 V-0 Flammability Rating
|
|---|---|
| Application |
1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital Video and Broadband/Baseband Analog Video, Voice/Data Systems and Voice Over Internet Protocol Applications
|
Technical Information
| Category Type |
Cat 6/Class E
|
|---|---|
| Color |
Red
|
| Conductor Size |
28 AWG
|
| Conductor Type |
Stranded Copper
|
| Connector Type |
RJ45 Modular Plug
|
| Cord Length |
20 ft
|
|---|---|
| Jacket Color |
Red
|
| Temperature Rating |
14 to 167 deg F
|
| Type |
CM/LSZH Small Diameter UTP
|
