Square D™ Schneider Electric

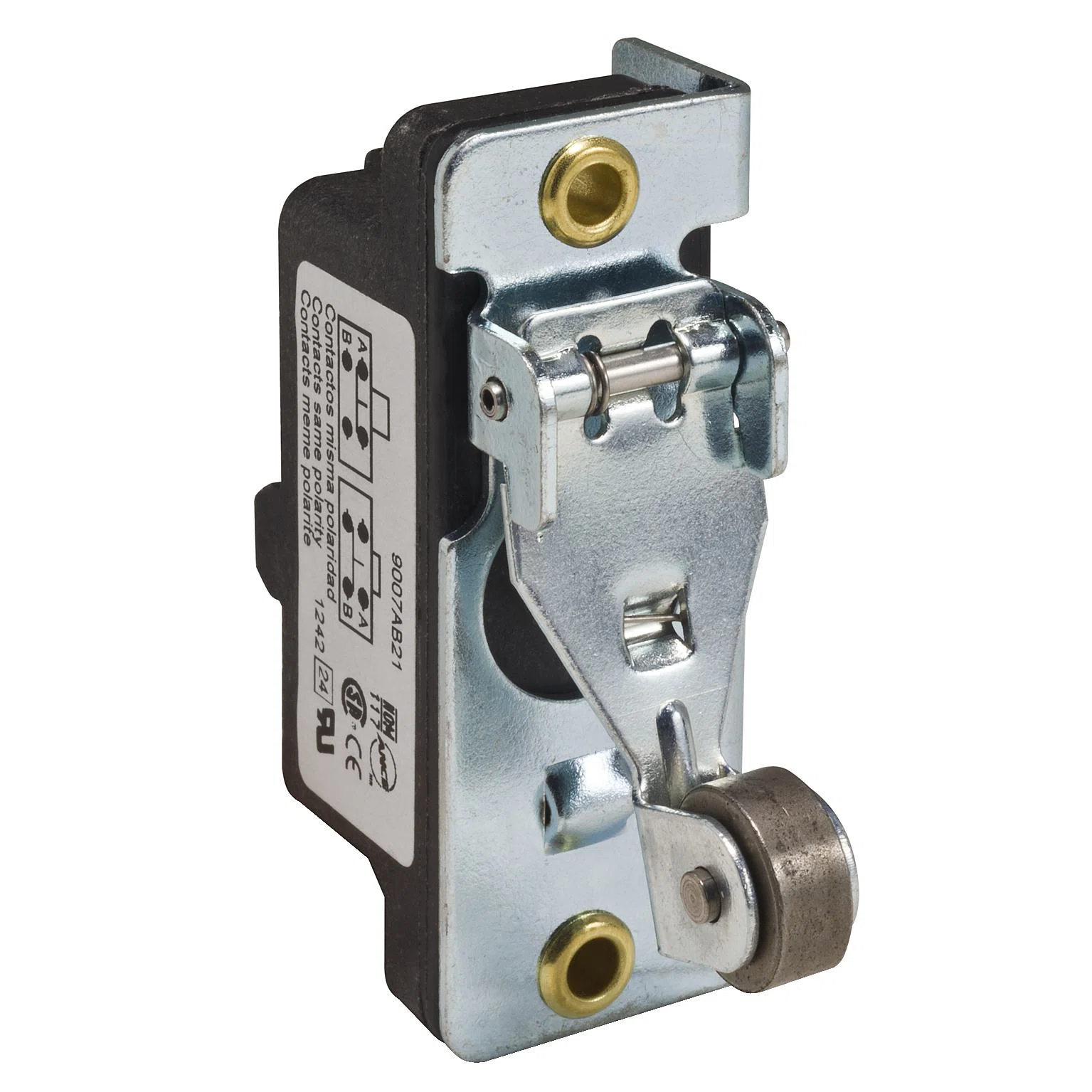

Snap limit switch, 9007, 600 VAC 15amp ab +options

MFR #:
9007AB41
UPC:
785901867906
Item #:
399900
$135.37 each
Product Details

Industrial snap switches have been incorporated in many Square D™ and trade, products such as timers, specialty pushbuttons, foot switches, operating mechanisms, door interlocks, motor control centers, limit switches and many other control products.

Manuals and Documentation

Features

  • NEMA degree of protection - NEMA 1 conforming to NEMA type 250
  • 1 to 2 cables for 6 binder head screw terminals (AWG 22 to AWG 14), IP20 conforming to IEC 60529
  • Plunger/Spring Return Roller Lever Without Bracket

Specifications

Identifiers

Identifiers
Manufacturer Part Number
9007AB41
GTIN
00785901867906
Identifiers
UPC
785901867906
EAN
0785901867906

General Information

General Information
Manufacturer
Schneider Electric
Brand
Square D™
Country Of Origin
MX
General Information
Warranty
18 Months
Standards Approvals
ECCN EAR99 | CE Certified | CSA File Number LR25490 Class 3211-03/C22.2 No 14 | IEC 60529 | REACH Compliant | UL 508/File Number E42259 CCN NKCR | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Dimensions

Dimensions
Size
2.5 in H x 2.44 in W x 0.95 in D

Technical Information

Technical Information
Action
Linear/Snap
Actuator
Plunger
Amperage Rating
0.02/0.2/0.5/5/6/10/15 A
Connection Type
Screw Clamp Terminal
Contact Configuration
1CO 1 Form Z SPDT-DB
Enclosure Type
NEMA 1
Material
Cast Zinc/Metal
Technical Information
Mounting Type
Body
Number Of Poles
1
Operating Temperature
-20 to 185 deg F
Series
9007AO/CO
Type
Heavy Duty
Voltage Rating
120/240/480/600 V AC/125/250/600 V DC
