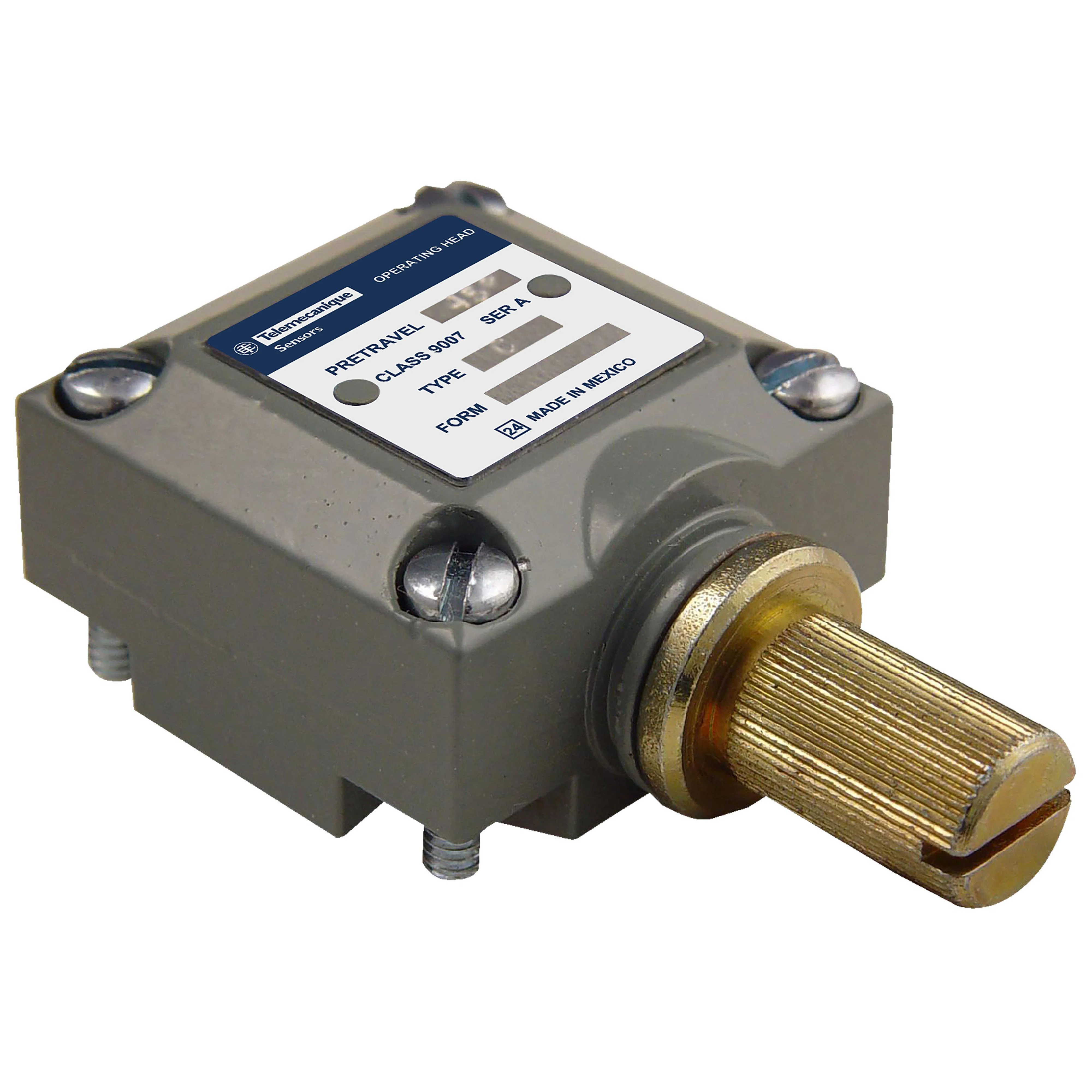

Limit switch, 9007, 600 V 10amp c +options
- MFR:
- Schneider Electric
- MFR #:
- 9007C62G
- UPC:
- 785901530824
- Item #:
- 373004
Limit switch, 9007, 600 V 10amp c +options
- MFR #:
- 9007C62G
- UPC:
- 785901530824
- Item #:
- 373004
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$401.82
each
Our proven line of 9007 Series limit switches can withstand the impact of heavy industry. We offer you the most comprehensive offer of limit switches, rugged and dependable, built with unparalleled quality.
Manuals and Documentation
Features
- C+ options limit switch
- Without positive opening
- 1.2 A 600 VAC at A600 NEMA, 1.5 A 480 VAC at A600 NEMA, 3 A 240 VAC at A600 NEMA, 6 A 120 VAC at A600 NEMA, 0.11 A 250 VDC at R300 NEMA, 0.55 A 125 VDC at R300 NEMA
| Manufacturer Part Number | 9007C62G |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901530824 |
| EAN | 0785901530824 |
| Country Of Origin | MX |
| Amperage Rating | 10 A |
| Enclosure Type | NEMA 2/4/6/6P/12/13/IP67 |
| Finish | Epoxy Powder Coated |
| Material | Zinc |
| Mounting Type | Plug-In |
| Series | 9007C |
| Type | Heavy Duty Linear |
| Voltage Rating | 600 V AC/DC |
| Size | 1.55 in W x 2.16 in D x 4.02 in H |
| Alternative Part Number | 8083091 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | CSA C22.2 File No. 14 | CE Marked | CENELEC EN 50041/EN 609475-1 | EN 60204-1 | IEC 60204-1 | IEC 609475-1 | IEC 60068-2-6 | IEC 60068-2-27 | IEC 60529 | IEC 61140 | RoHS Compliant | UL 508 | PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | For material handling such as mechanical conveying, automotive, machine tool and packaging |
| Action | Snap/Lateral |
| Actuator | Side Plunger |
| Connection Type | 1/2-14 NPT Cable Entry/Screw Clamp |
| Contact Configuration | 2NO-2NC |
| Contact Rating | 1.2 A at 600 V AC/0.11 A at 250 V DC |
| Environmental Conditions | -20 to 185 deg F Storage Temperature |
| Number Of Poles | 2 |
| Operating Cycles | 1000000 Cycles |
| Operating Temperature | -20 to 185 deg F |
