Panduit® Panduit

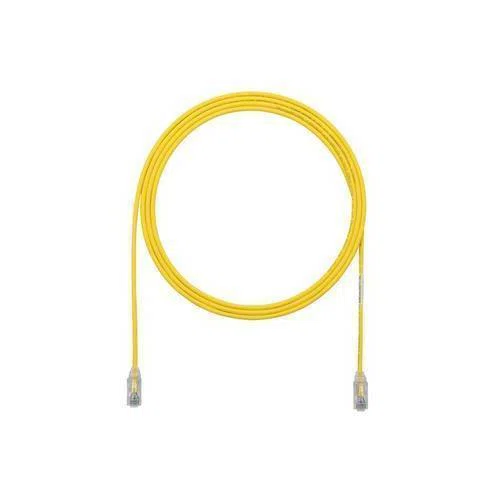

UTP28SP3YL PanNet TX6-28 Small Diameter Patch Cord, Cat 6/Class E, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 3 ft L Cord, Yellow

MFR #:
UTP28SP3YL
UPC:
074983652037
Item #:
369206
$19.01 each
Product Details

Cat 6/class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

Manuals and Documentation

Features

  • 100% performance tested for wire map, NEXT and return loss
  • Centred de-embedded plug
  • Integral pair manager optimizes performance and consistency by reducing untwist at plug
  • Patented tangle-free latch prevents snags and provides easy release, saving time and tangle providing reliability on frequent moves, adds and changes
  • Smaller diameter, flexible cable design
  • Robust construction - plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
  • Identification label provides identification of performance level, length and quality control number for traceability
  • 28 AWG UTP patch cord with TX6™ modular plugs on each end
  • Smaller diameter, flexible cable design
  • 100% performance tested for wire map, next and return loss
  • Integral pair manager
  • Patented tangle-free latch
  • Flexible stranded cable
  • Provides identification of performance level, length and quality control number for future traceability
  • Robust construction
  • Variety of cable colors and lengths
  • UL94V-0 rated clear polycarbonate plug housing
  • Gold plated phosphor bronze, contacts plated with 50 u-in of gold for superior performance

Specifications

Identifiers

Identifiers
Manufacturer Part Number
UTP28SP3YL
GTIN
00074983652037
Identifiers
UPC
074983652037
EAN
0074983652037

General Information

General Information
Manufacturer
Panduit
Brand
Panduit®
General Information
Standards Approvals
Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802 | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | Meets IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3 and Type 4 PoE Compliant | cULus Listed | UL File No. E129886 | UL 1863 | CAN/CSA C22.2 | CM/LSZH Flammability Rated
Application
100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Digital Video and Broadband/Baseband Analog Video, Voice/Data Systems and Voice Over Internet Protocol (VoIP) Applications

Technical Information

Technical Information
Category Type
Cat 6/Class E
Color
Yellow
Conductor Size
28 AWG
Conductor Type
U/UTP Stranded Copper
Connector Type
RJ45 Modular Plug
Technical Information
Cord Length
3 ft
Jacket Material
PVC
Series
UTP28SP
Temperature Rating
14 to 167 deg F
Type
Small Diameter
