WAGO WAGO Corporation

750-615 750, 120 V AC Input

MFR #:
750-615
Item #:
363963
$56.49 each
Product Details

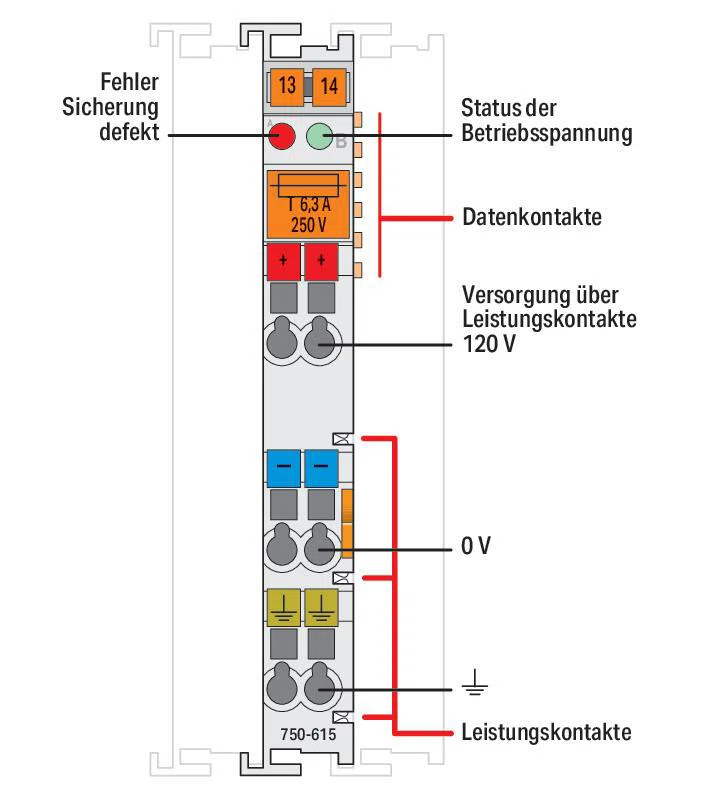

Power Supply; 120 VAC; fuse holder This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly. This module is fuse-protected (5 x 20 mm). The fuse can be changed quickly and easily from the retractable fuse holder. A blown fuse and the status of the supply voltage are indicated via LEDs.

Manuals and Documentation

Specifications

Identifiers

Identifiers
Manufacturer Part Number
750-615
Identifiers
EAN
4045454605896

General Information

General Information
Manufacturer
WAGO Corporation
Brand
WAGO
General Information
Standards Approvals
RoHS Compliant,With Exemption | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2

Dimensions

Dimensions
Dimensions
3.937 in H x 0.472 in W x 2.748 in D

Technical Information

Technical Information
Color
Light Gray
Input Voltage
120 V AC
Technical Information
Series
750
Specifications
0.08 to 2.5 mm Wire Conductor, 8 to 9 mm Stripping Length, 0.08 to 2.5 mm Conductor Size, 0.08 to 2.5 mm Wire Conductor Size, 5 x 20 mm Fuses, 50 to 60 Hz Frequency, 5 to 35 deg C Operating Temperature, 0 to 70 deg C Storage Temperature, 8 mm Stripping Length
