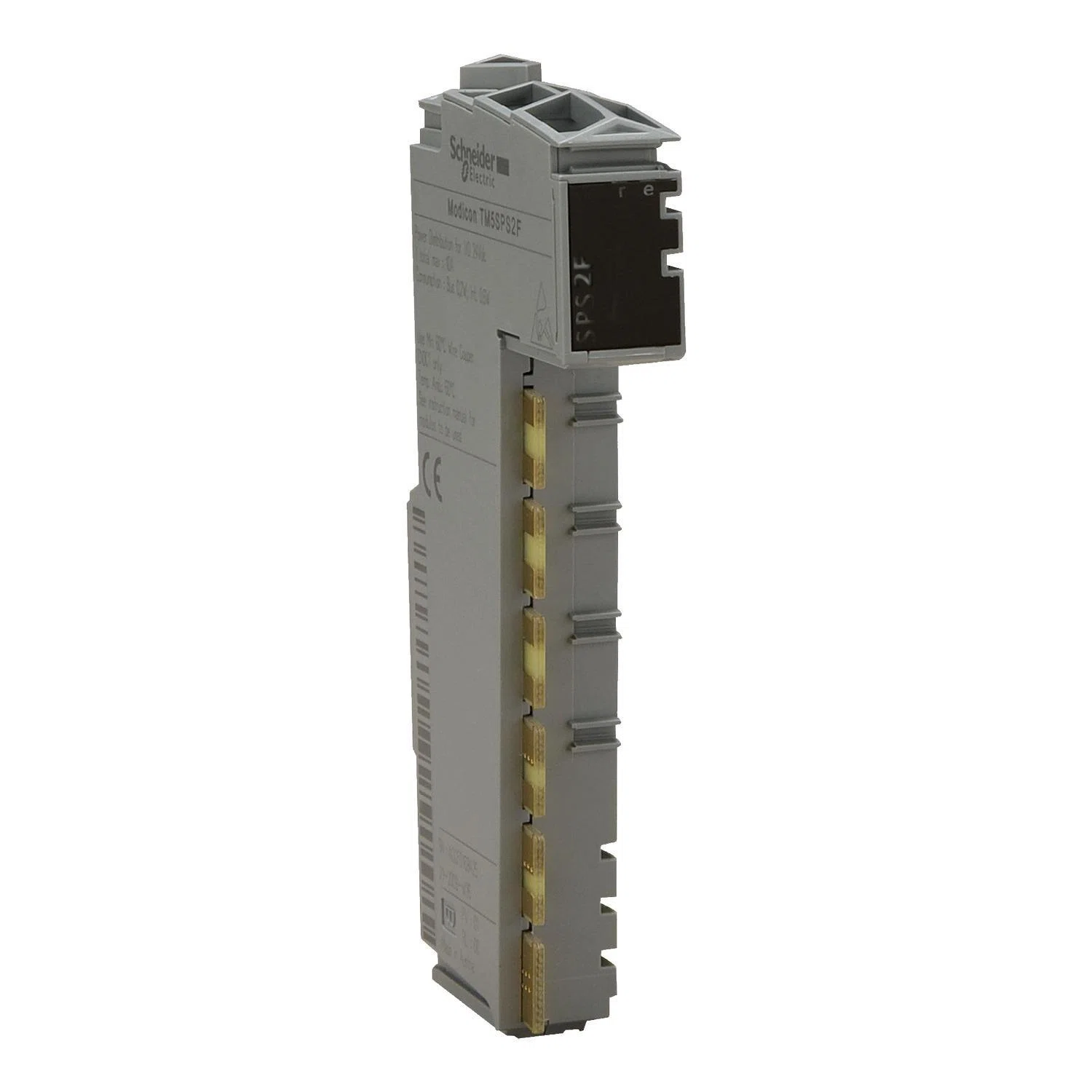

TM5SPS2 Modicon Power Distribution Module, 24 V DC Input, <=25 mA Input, 10 A Output

MFR #:
TM5SPS2
UPC:
785901822868
Item #:
361163
$367.56 each
Product Details

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The is a power distribution module is suitable for supply 24V DC I/O modules and bus TM5. It is a power distribution module with a current consumption of 25mA 24V DC and a maximum power dissipation of 1.91W. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Manuals and Documentation

Features

  • Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
  • Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
  • Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
  • Modicon TM5 is characterized by easy cabling and maintenance

Specifications

Identifiers

Identifiers
Manufacturer Part Number
TM5SPS2
GTIN
03595864074924
Identifiers
UPC
785901822868
EAN
3595864074924

General Information

General Information
Manufacturer
Schneider Electric
Brand
Schneider Electric
Country Of Origin
AT
General Information
Warranty
18 Months
Standards Approvals
RoHS Compliant | REACH Compliant | WEEE Compliant | CE Certified | CSA C22.2 File No. 142 | C22.2 File No. 213 | cULus Listed | C-Tick.1 Certified | EN/IEC 61000-4-6 | GoST-R Certified | IEC 61131-2 | UL 508 | Green Premium | ECCN: EAR99 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application
For use with Modicon™ LMC058, Modicon™ M258, motion controller and logic controller

Dimensions

Dimensions
Dimensions
99 mm L x 12.5 mm W x 75 mm D

Technical Information

Technical Information
Color
Gray
Input Current
<=25 mA
Input Voltage
24 V DC
Output Current
10 A
Technical Information
Power Dissipation
<=1.91 W
Specifications
IP20, DIN Rail Mount
Temperature Rating
-10 to 55 deg C without Horizontal Installation/-55 to 60 deg, with Derating Factor Horizontal Installation/-10 to 50 deg C Vertical Installation
