Appleton

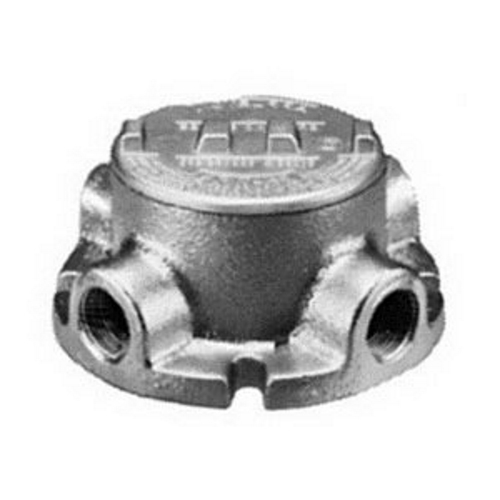

Unilets; GRF Conduit Outlet Box; 18 Cubic-Inch, Aluminum, Threaded, Flanged Base Mount

MFR:
Appleton Electric
MFR #:
GRFX100A
UPC:
781381621915
Item #:
3445

Availability

Location Available Qty
Available Available to Order
$251.39 each

UNILETS Flanged Outlet Box, Number Of Outlet: 4, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1 IN, Cable Entry: (4) 1 IN GRFX Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height:

Manuals and Documentation

Features

  • Dimension: 5.380 Inch Dia x 2.750 Inch Width
Catalog Number GRFX100A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (4) 1 IN GRFX Hub
Cubic Capacity 18 CU IN
Knockouts No
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
RoHS Indicator Contact Manufacturer
UPC 781381621915
GTIN 00781381621915
Item Type Flanged Outlet Box
Length 6.5000
Length UOM Inch
Width 6.0000
Width UOM Inch
Height 4.0000
Height UOM Inch
Weight 1.830
Weight UOM Pounds
Size 1
